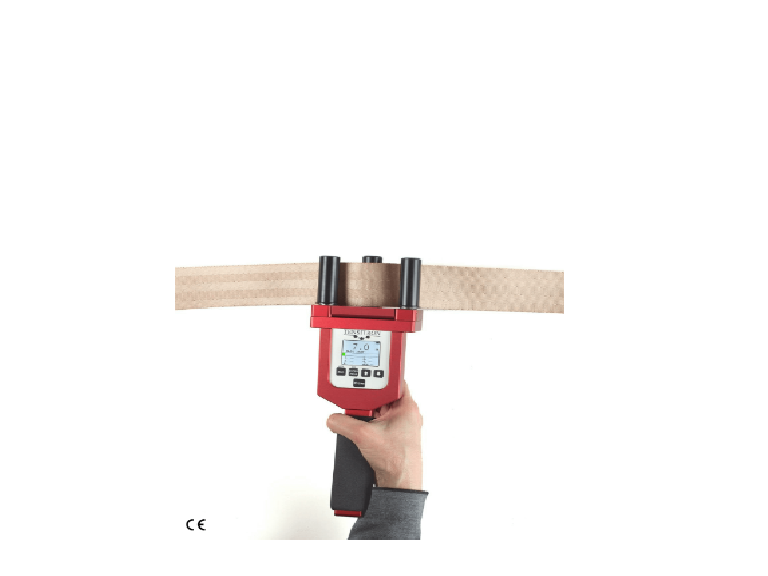

Thiết bị máy đo sức căng, lực căng vật liệu phẳng, hẹp , chuyển động hoặc đứng yên model BTX-25-1, model BTX-50-1, model BTX-100-1, model BTX-200-1, model BTX-250-1

Full Scale Accuracy

For the accuracy of each BTX-1 mode

Power Requirements for Instrument Input*

9 VDC…2.2A

Power Requirements for AC Adapter*

Power Requirements for AC Adapter*

Battery

Rechargeable NiMH, custom proprietary design

Battery Life

Battery lasts approximately 8 hours between charges, depending on backlighting intensity.

Weight

3.1 lb

Dimensions

Dimensions 3.8” x 11.4” x 4.7”

Environment

Indoor or outdoor use, dust-free environment

* Power Supply operates with input voltages from 100 –240V and includes several interchangeable adapters allowing use with European, U.S., Australian, English and other plug configurations.

MODEL

RANGE

RESOLUTION

TOLERANCE

CALIBRATION

MIN

MAX

LB

LB

LB

BTX-50-1

3

25

0.2

0.5

BTX-1 meters

are customcalibrated for

each material to

be measured.

See box below

for details.

BTX-100-1

5

50

0.2

1

BTX-250-1

5

100

0.2

2

BTX-500-1

5

250

0.2

5

CALIBRATION

BTX-1 meters are calibrated to user-specified materials (up to 10). When ordering, provide a 10-foot-long sample

of each material the meter will be measuring.

Within the tension ranges shown above, the meter can be scaled to your expected tension levels. This will improve

accuracy at those tension levels.

Standard accuracy is +/- 2% full-scale. Accuracy may vary depending on the properties of the material measured.
