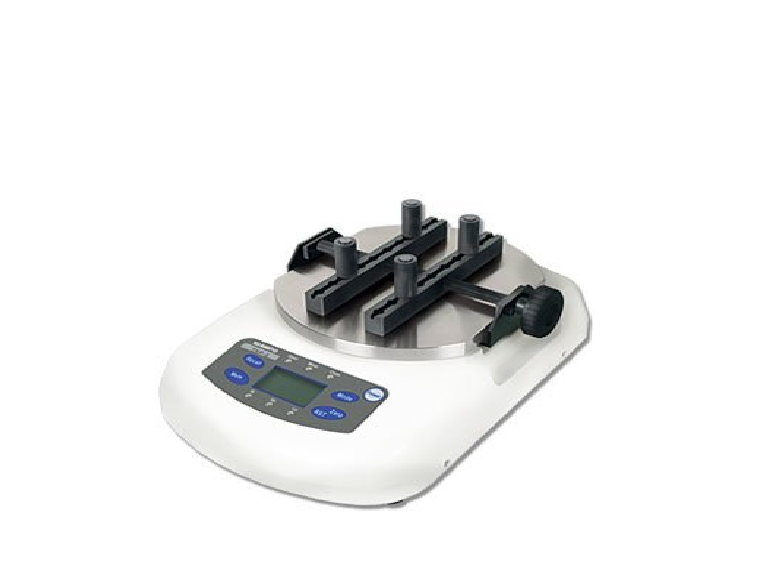

Thiết bị máy đo lực xoắn đóng mở model TNP-0.5, model TNP-2, model TNP-5, model TNP-10 hãng NIDEC SHIMPO

Models

TNP-0.5

TNP-2

TNP-5

TNP-10

Measuring Range

0-50.00 Ncm

0-500.0 mNm

0-5099 gcm

0-4.425 lbin

0-2.000 Nm

0-200.0 Ncm

0-20.39 kgcm

0-17.70 lbin

0-5.00 Nm

0-500.0 Ncm

0-50.99 kgcm

0-44.25 lbin

0-10.00 Nm

0-1000 Ncm

0-102.0 kgcm

0-88.5 lbin

Test Sample Diameter Range

0.39” – 7.48” (10 – 190 mm)

Accuracy

±0.5% / F.S.

Display

Main display: 4-digit LCD display, Character height 0.5” (12 mm)

Comparator Display

HI – GO – LO (green and red LED indicator)

Display Update Time

Select from 0.125 second (8 times/second), 0.25 second (4 times/second), 0.5 second (2 times/second), 1 second (1 time/second). Peak display: 0.125 second

Measuring Mode

Opening Mode: Show max value when opening (peak display) Displays max counterclockwise torque

Closing Mode: Show max value when closing (peak display) Displays max clockwise torque

Average Mode: Real time display (average value display) Displays torque in real time

Overload

150% of full scale

Sampling Rate

1000 Hz

Memory

1000 data (max)

Data Output

USB1.1

Power

Built in nickel hydride battery (NiMH) or Auto-ranging AC adapter (AC100 – 240V)

Battery Information

NiMH: 8 hours use after full charge. 16 hour max. recharge time.

Operating Environment

32° – 104° F (0° – 40° C)

Software (PC)

DIGITORQUE TNP (Free)

Dimensions

12.60” x 8.94” x 4.96” (320 x 227x 126 mm)

Product Weight

Approx. 17.6 lb (8 kg)

Approx. 17.6 lb (8 kg)

Approx. 17.6 lb (8 kg)

27.5 lb

(12.5 kg)

Package Weight

Approx. 19 lb (8.6 kg)

Approx. 19 lb (8.6 kg)

Approx. 19 lb (8.6 kg)

30.7 lb

(13.9 kg)

Certifications

CE

Warranty

2-Year

Included Accessories

USB cable, 120/240 VAC AC adapter, 30mm chuck pin (4pcs)
