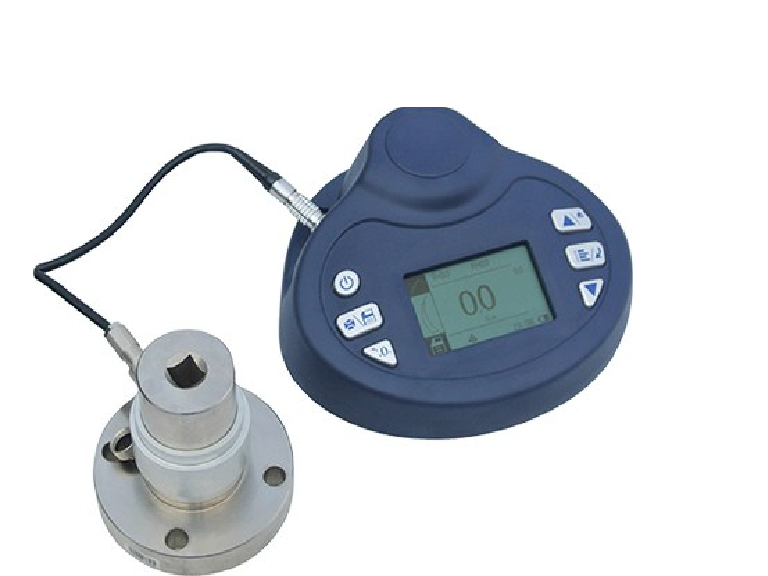

Thiết bị máy đo mô men xoắn model TTC-I-2, model TTC-I-5, model TTC-I-10, model TTC-I-20, model TTC-I-50, model TTC-I-100, model TTC-E-200, model TTC-E-500, model TTC-E-800 TTC SERIES NIDEC SHIMPO

Model

TTC

Measuring Range

See Capacity & Resolution chart in the Ordering Details tab

Accuracy

± 0.3% of reading over 5 to 100% capacity

Units of Measure

N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range)

Measure Modes

Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak

Tool Socket Size

TTC-2/5/10: 1/4” & 1/2” (6.3 & 12.5 mm); TTC-20/50/100/200: 3/8” & 1/2” (10 & 12.5 mm); TTC-500/800: 3/4” (19 mm)

Overload Protection

120% of Full Scale

Sampling Rate

2000 Hz

Peak Capture Rate

0.05 s

Display

160* 128 Dot matrix backlit LCD

Display Update Rate

10 times/sec

Resolution

See Chart

Memory

1000 data

Set Point

Programmable High and Low Limits

Battery Indication

Battery icon flashes when low

Charger/Adapter

Universal USB charger, input 100 – 240 V ac 50/60 Hz

Operating Temperature

14 to 104ºF (-10 to 40ºC)

Humidity Limit

20 – 80% RH

Power

3.6 V dc 1600 mAH Ni-MH

Battery Life

Approx. 16 Hours continuous on full charge

Output

USB, serial port RS-232, High and low limit NPN

Dimensions

Display TTC-I: 7.75 x 7 x 3.3” (197 x 180 x 83 mm); Display TTC-E: 7.75 x 7 x 3” (197 x 180 x 75 mm); External Sensor (50, 100 N-m): 4.3 x 3.3”(110 x 83 mm); External Sensor (200, 500 & 800 N-m): 4 x 3.8” (100 x 98 mm

Product Weight

TTC-I: 3.3 lb (1.5 kg); TTC-E Display: 2.6 lb (1.2 kg); TTC-E-200/500/800 External Sensor: 4.4 lb (2 kg)

Package Weight

TTC-I: 6.5 lb (3 kg); TTC-E-200/500/800: 10.2 lb (4.6 kg)

Warranty

1-Year

Certification

CE

Included Accessories

USB cable, charger adapter, cal. cert. printer cable, square driver adapter connector (Ranges to 200 N-m only)

Optional Accessories

RS-232 cable, Rundown adapters & Printer. Note: Software available for free at www.shimpoinst.com
