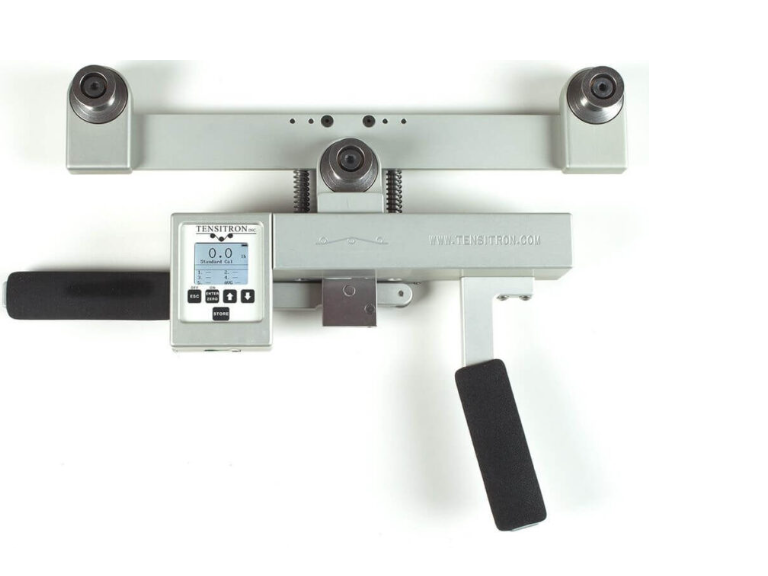

Thiết bị cáp đo lực căng cáp kỹ thuật model CX-250-SM-1, model CX-500-SM-1, model CX-1000-SM-1, model CX-1000-M-1, model CX-2000-M-1, model CX-1000-1, model CX-2000-1

SPECIFICATIONS

CALIBRATION

CX-1 meters are custom-calibrated for each material to be

measured. Up to 10 calibrations are available. A 10-foot

sample of each material will be needed for the calibration.

ACCURACY

+/- 2% full-scale. Accuracy may differ depending on material

measured.

DATA OUTPUT

Analog Output (Option A) OR RS-232 Serial Output (Option E)

ROLLERS

Standard CX-1 rollers are flanged, with 7/8” outside diameter and working length of ¾”.

For flat materials, order 2” or 3” cylindrical rollers are available (Option R).

BATTERY

NiMH (NOT lithium ion). Rechargeable. Up to 8 hours continuous use per charge.

WARRANTY

One year against factory defects.

STYLE

MODEL

RANGE

RESOLUTION

TORELANCE(MATERIAL DEPENDENT)

MAXIMUM

7x19 WIRE

ROPE

MIN

LB

MAX

LB

LB

LB

Small

(15” wide)

CX-250-SM-1

20

250

0.2

+/- 5

3/16” (4.8 mm)

CX-500-SM-1

20

500

1

+/- 10

CX-1000-

SM-1

50

1000

5

+/- 20

Medium

(16.73” wide)

CX-1000-M-1

50

1000

5

+/- 20

1/4” (6.35 mm)

CX-2000-M-1

100

2000

10

+/- 40

Standard

(19.73” wide)

CX-1000-1

50

1000

5

+/- 20

3/4” (19 mm)

CX-2000-1

100

2000

10

+/- 40
