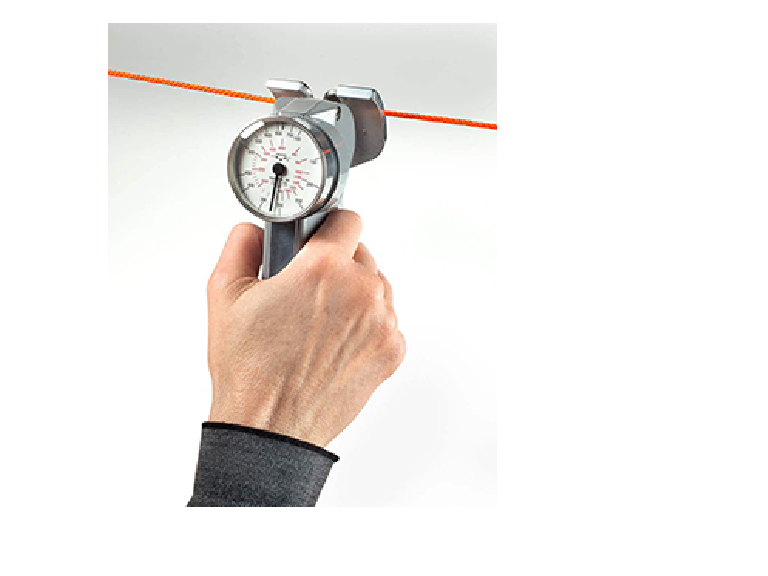

TR-25 Mechanical Trigger Tension Meter

Overview:

Maintain process and quality control in manufacturing and testing environments with the Tensitron TR tension meters. The Mechanical Trigger Tension Meter for Fine Wire & Filaments is used to check tensions on wire, yarn, fiber optics, film, tape, narrow fabrics, and flat materials. TR instruments provide measurable tension control for the major wire, textile, coil winding, EDM, fiber optic, and synthetic materials industries. For EDM wire, order TR-4000.

TR tension gauges are calibrated to one specific material for a direct tension reading. Digital instruments can be calibrated for up to ten different materials

---

Features

Quick, easy tension testing for fine wires, filaments, and other materials

Improves yields and first quality

Ensures consistency in your manufacturing or testing environments

Dependable, Convenient Tension Measurement

Quick, easy, one-handed operation

Lightweight, portable, and compact

Durable construction

Measures moving or stationary materials

Tension ranges from 0 to 5,000 grams

Equipped with rollers for dynamic or static measurement

Custom rollers available for specialized applications

Mounting Bracket allows for continuous, hands-free monitoring (optional)

Magnetic dampening stabilizes readings

Right- or Left-Hand Operation

Corrosion-resistant versions available for damp environments

Includes carrying case and NIST-traceable calibration certificate

Warrantied for one year against factory defects

Versatile Tension Measurement for:

Copper wire (up to 20 AWG)

EDM wire, magnet wire (up to .8mm)

Solid steel wire (up to .02”, .5mm)

Stranded steel wire (up to .04”, 1mm)

Yarn, thread, fibers, filaments

Fiberglass roving

Carbon fiber

Fiber optic strands and thin cables

Film, tape, ribbon (up to 1-1/2”, 38mm wide)

Tubing (up to .2”, 6mm)

---

Specifications:

MATERIAL	TR meters are calibrated for a single material. For other materials, the meter will provide a repeatable reference, but not a direct tension reading. The standard calibration is a textile filament. For other materials, send Tensitron a 10-foot sample of your material and request a special calibration.
ACCURACY	With standard calibration, accuracy is +/-8% full-scale. Higher accuracy (up to +/- 2%) may be achieved with a special calibration for your material and tension range.
DIAL	TR meters have dial faces with black numbers for the first revolution of the pointer and red numbers for the second revolution.
WARRANTY	One year against factory defects.
