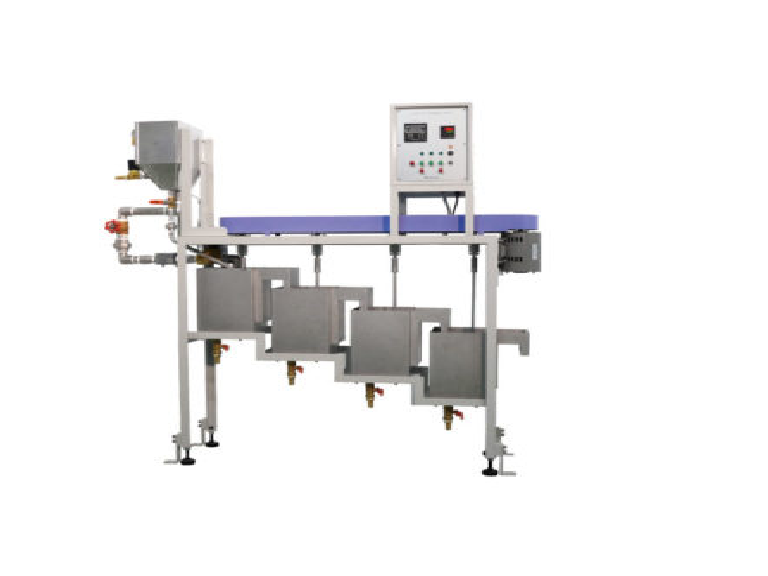

YASUDA No.330 PULP SCREENING TESTER

Specime

Bone-Dried 10 g, Concentration 1 %, 1,000 ml

Test Bath

191 × 191 × 290 mm

Stirrer Rotation Speed

800 rpm

Water Feed

8.3 L/min

Wire Screen Diameter

φ102 mm

Screen Combination

710, 355, 180, 106 µm/

1180, 600, 300, 150 µm/

1400, 850, 600, 300 µm

Option

Flow Meter, Timer

Power Source

AC 100 V, 1-Phase, 15 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W1,350 × D300 × H1,400 mm, 120 kg
