Máy kiểm tra độ uốn gập màng phim YASUDA No.306

Máy kiểm tra độ uốn gập màng phim YASUDA No.306

Overview:

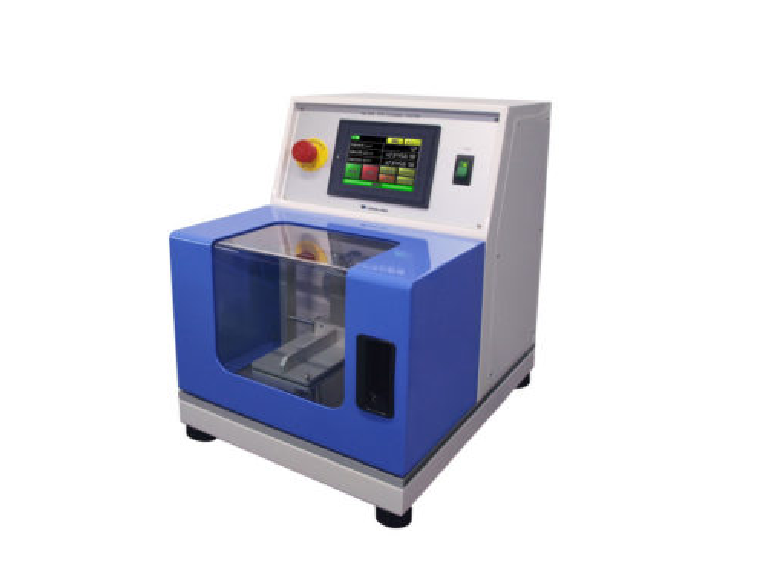

No.306 FPC FLEXING TESTER

This test is used to evaluate the folding endurance of plastic film and flexible print circuit board.

The operator is to attach the test specimen to a fixed board and a movable board so that the test specimen is attached at a certain radius. The movable board will bend left and right to flex the test specimen.

Standards:

JIS C5016

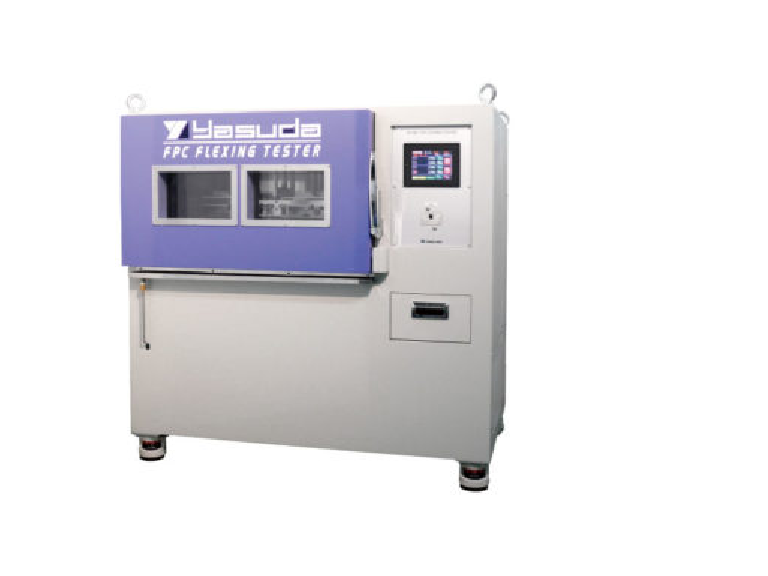

No.306-L FPC FLEXING TESTER(WITH REFRIGERATING MACHINE)

This model is equipped with a low temp.chamber for testing at low tempertures.

Standards:

JIS C5016

No.308 SCHOPPER TYPE FOLDING ENDURANCE TESTER

This tester is used to evaluate the folding endurance of paper,paper board,and plastic film according to the Schopper Type testing method.

By folding the test specimen that is vertically applied tensile force on the long side with the foloding blade, the operator is to calculate the foloding endurance from the number of bends the test specimen required to fracture.

Standards:

JIS P8114, TAPPI-T423, ISO 5626
