Thiết bị máy WILLIAMS PLASTOMETER đo độ dẻo cao su model No.105, model No.105-AUTO

Model

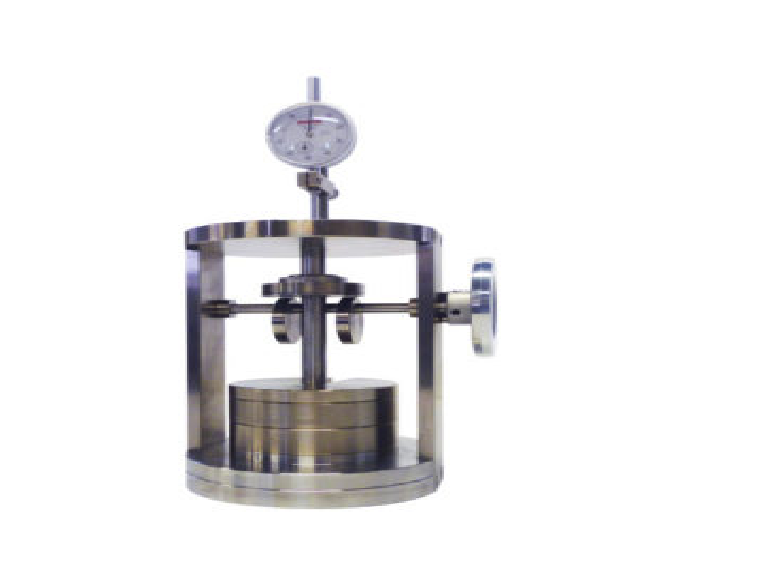

No.105 WILLIAMS PLASTOMETER

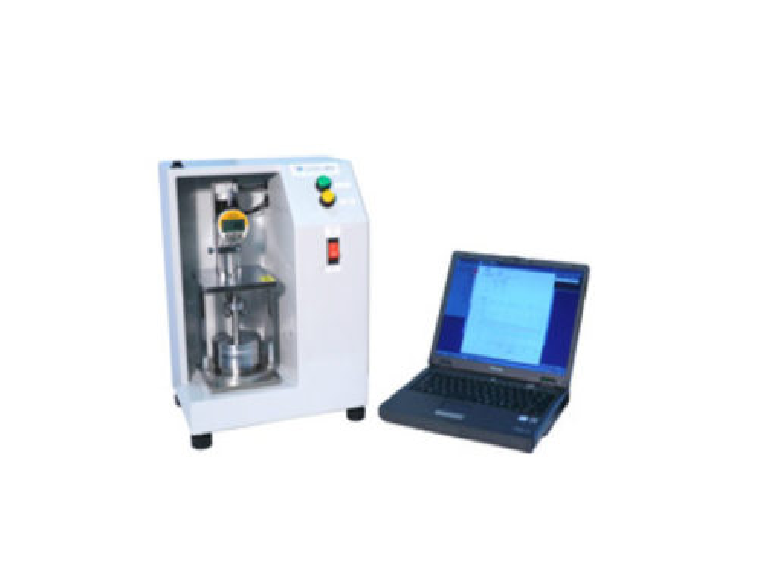

No.105-AUTO WILLIAMS PLASTOMETER (AUTOMATIC)

Specimen

Cylindrical shape, Volume 2 ± 0.02 cm3 (φ16 mm, H10 mm)

Cylindrical shape, Volume 2 ± 0.02 cm3 (φ16 mm, H10 mm)

Parallel Plate

Upper: φ148 mm, T11.7 mm

Upper: φ148 mm, T11.7 mm

Lower: φ148 mm, T13 mm

Lower:

φ148 mm, T13 mm

-

Test Load

Initial 24.5 N (2.5 kgf) to Max. 49 ± 0.05 N (5 kgf) (Standard 49 ± 0.05 N)

Initial 24.5 N (2.5 kgf) to Max. 49 ± 0.05 N (5 kgf) (Standard 49 ± 0.05 N)

Dial Gauge

Scale 1/100 mm, Stroke Max. 20 mm

Scale 1/100 mm, Stroke Max. 20 mm,

Digital Display Ver.

Software

―

Windows Compatible

Accessories

Dial Gauge, Weight (4.9 N: 1 pc, 9.8 N: 2 pcs), Hexagon wrench,

Set Up Disk (105-AUTO), Power Plug Adaptor (105-AUTO)

Dial Gauge, Weight (4.9 N: 1 pc, 9.8 N: 2 pcs), Hexagon wrench,

Set Up Disk (105-AUTO), Power Plug Adaptor (105-AUTO

Option

―

Heating Plate Type, Safety Cover

Power Source

―

AC 100 V, 1-Phase, 5 A, 50/60 Hz

Dimensions/Weight (Approx.)

W175 × D150 × H330 mm, 7.2 kg

*With Dial Gauge Attached.

W365 × D250 × H506 mm, 24 kg
