Thiết bị máy MIT TYPE FOLDING ENDURANCE TESTER đo độ bền uốn gấp bìa cứng và màng mỏng model No.307, model No.307-L

Model

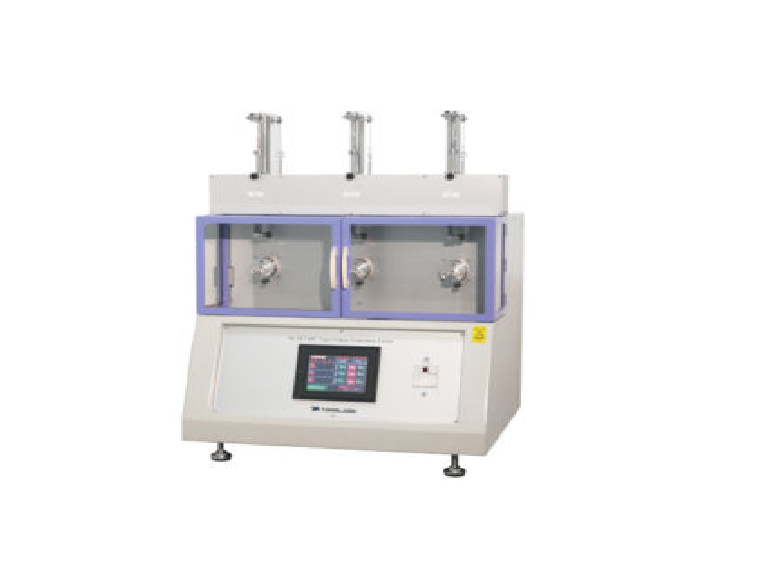

No.307 MIT TYPE FOLDING ENDURANCE TESTER

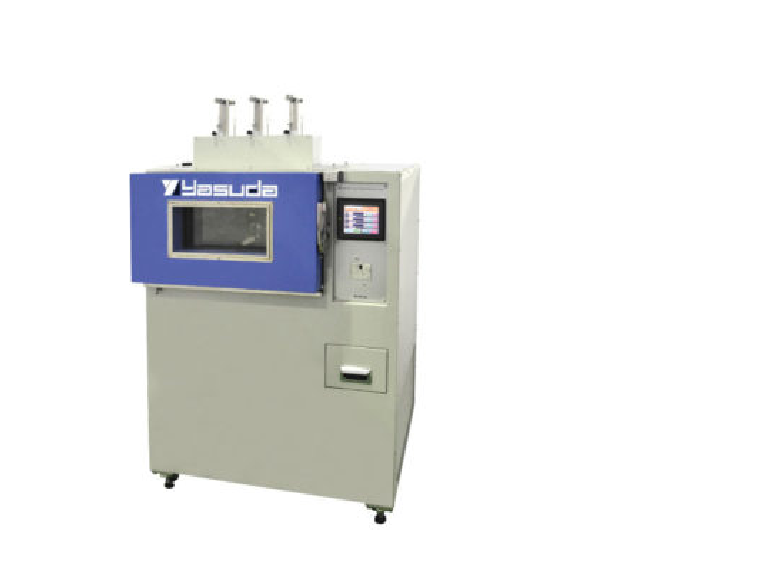

No.307-L MIT TYPE FOLDING ENDURANCE TESTER (WITH REFRIGERATING MACHINE)

Hangings

1, 3 or 5 Hangings (3 kinds)

1, 3 or 5 Hangings (3 kinds)

Specimen

W15.0 ± 0.1 mm, L110 ± 5 mm

W15.0 ± 0.1 mm, L110 ± 5 mm

Weight Load

4.9 to 14.7 N (0.5 to 1.5 kgf)

(Dead Weight) (Standard: 9.8 N)

4.9 to 14.7 N (0.5 to 1.5 kgf)

(Dead Weight) (Standard: 9.8 N)

Folding Angle

135° ± 2°

(Option: 45°, 90°, 3 Stage Type)

135° ± 2°

(Option: 45°, 90°, 3 Stage Type)

Folding Speed

175 ± 10 times/min

(Option: 45 times/min, 90 times/min, 3 Stage Type)

175 ± 10 times/min

(Option: 45 times/min, 90 times/min, 3 Stage Type)

Folding Top

R0.38 ± 0.02 mm , L19.0 ± 0.5 mm, Spacing 0.25 mm

R0.38 ± 0.02 mm , L19.0 ± 0.5 mm, Spacing 0.25 mm

Counter

6 Digits Preset Counter

6 Digits Preset Counter

Temperature Range

―

-35 to 60 °C (Refrigerator)

Option

Conduction Device (for FPC)

Conduction Device (for FPC)

Power Source

AC 100 or 200 V, 1-Phase, 10 to 15 A, 50/60 Hz

AC 100 or 200 V, 1-Phase, 10 to 15 A, 50/60 Hz

Dimensions/ Weight (Approx.)

1 Hanging: W470 × D400 × H850 mm/ 31 kg

3 Hangings: W600 × D550 × H850 mm/ 67 kg

5 Hangings: W720 × D630 × H850 mm/ 79 kg

1 Hanging: W470 × D400 × H850 mm/ 31 kg

3 Hangings: W600 × D550 × H850 mm/ 67 kg

5 Hangings: W720 × D630 × H850 mm/ 79 kg
