Thiết bị máy SCHOPPER TYPE FOLDING ENDURANCE TESTER đo độ bền uốn gấp của giấy model No.308

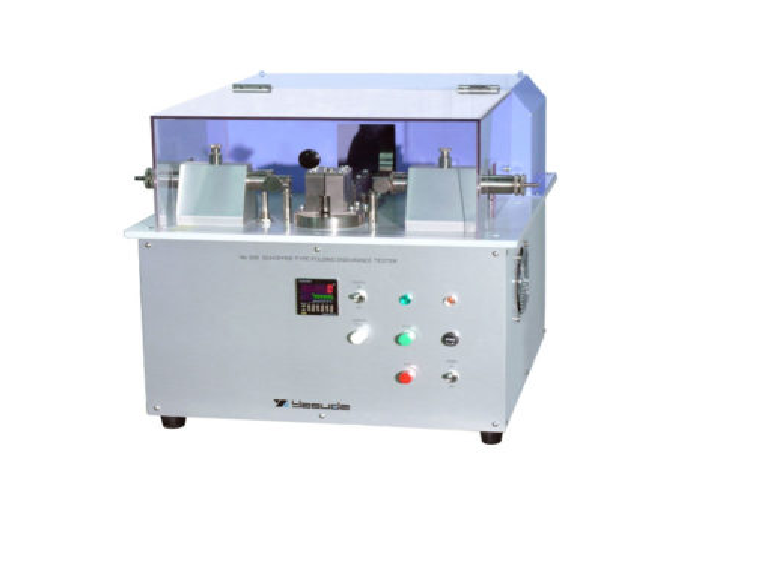

No.308 SCHOPPER TYPE FOLDING ENDURANCE TESTER

Specimen

W 15.0±0.1 mm, L100 mm, T0.25 mm or Less

Folding Blade

T0.5 ± 0.0125 mm、Slit Spacing 0.5 mm

Folding Roller

φ6 mm、L 18 mm

Test Load

lnitial 7.6 ± 0.1 N、Max. 9.8 ± 0.2 N

Folding Distance

20 mm（Front-Back 10 mm）

Counter

6 Digitis Preset Counter

Option

Safety Cover

Power Source

AC 100 V、1-Phase、10 A、50/60 Hz

Dimensions/Weight(Approx.)

W450 × D480 × H430 mm/ 60 kg
