Máy kiểm tra chỉ số dòng chảy MFI YASUDA No.120-FWP

Giá: Liên hệ

Còn hàng Mã SP: YASUDA No.120

Máy kiểm tra chỉ số dòng chảy MFI YASUDA No.120-FWP

Overview:

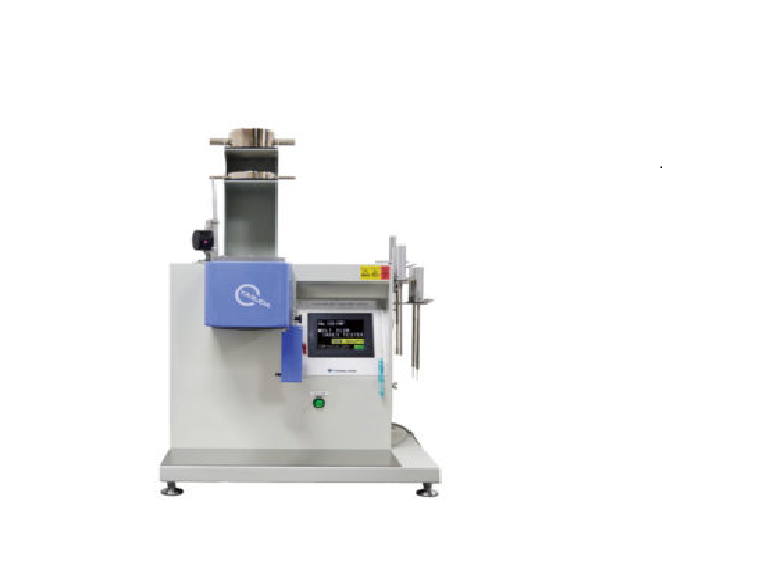

No.120-FWP MELT FLOW INDEX TESTER (MANUAL)

This tester is for measuring the melt flow index of thermo-plastic.

The test can be conducted easily, from setting the test condition up to data analysis, using a 5.7” full color touch panel.

Standard:

JIS K6719-1/2, K6921-2, K6922-2, K6923-1, K6924-1, K6926-2, K7210, ASTM D1238, ISO 1133.

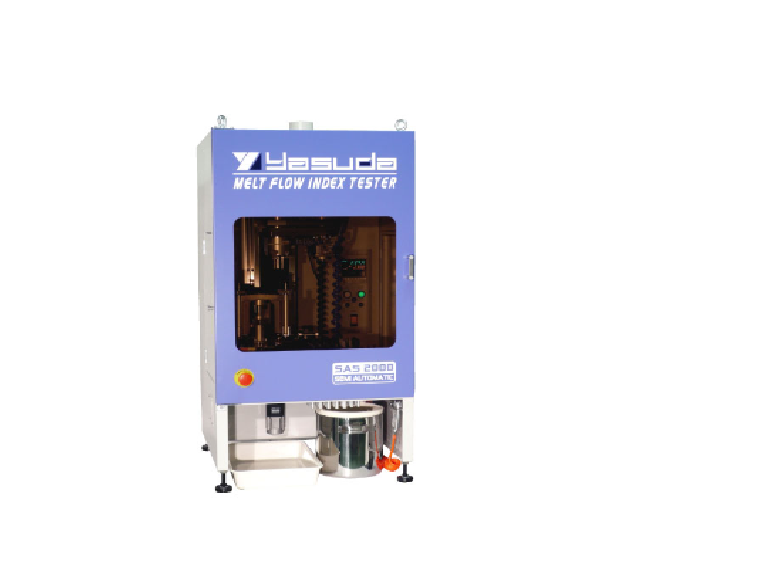

No.120-SAS MELT FLOW INDEX TESTER (AUTOMATIC)

This tester is used to measure the melt flow index of thermo-plastic.

The melt flow index is acquired from the weight or the volume of the extruded specimen at a specified cylinder temperature and with a specified load of piston through the die.

The tester is assorted with an automatic cleaning system which enables to perform 1 test cycle without discontinuation (option of 3 test cycles).

Standard:

JIS K6719-1/2, K6921-2, K6922-2, K6923-1, K6924-1, K6926-2, K7210, ASTM D1238, ISO 1133.

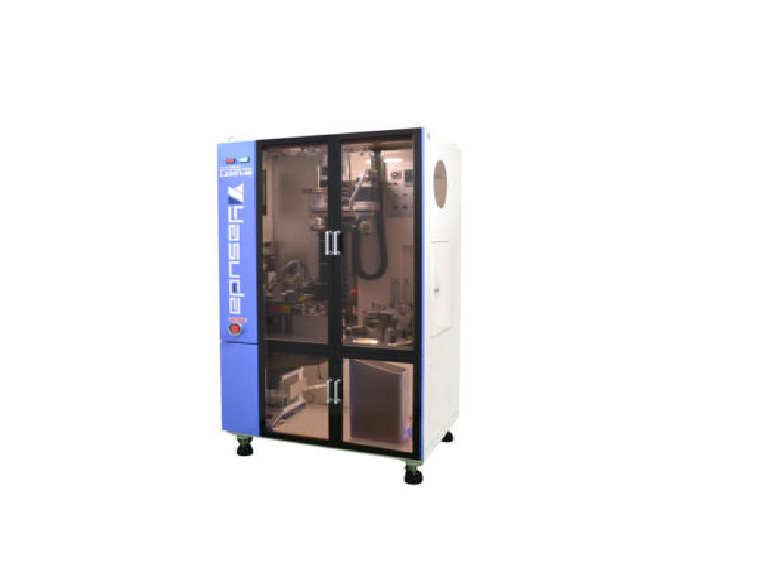

No.120-LABOT MELT FLOW INDEX TESTER (FULL AUTOMATIC)

This tester is equipped with robotic mechanism which enables fully automatic melt flow index tests up to a maximum of 50 samples (standard of 12 samples).

The test conditions and the outputs can be set and observed through the computer software.

Standard:

JIS K6719-1/2, K6921-2, K6922-2, K6923-1, K6924-1, K6926-2, K7210, ASTM D1238, ISO 1133.

Xem thêm chi tiết sản phẩm ▼

	No.120-FWP MELT FLOW INDEX TESTER (MANUAL)	No.120-SAS MELT FLOW INDEX TESTER (AUTOMATIC)	No.120-LABOT MELT FLOW INDEX TESTER (FULL AUTOMATIC)
Hangings	1 Hanging	1 or 3 Hangings (2 kinds)	12, 24, 50 Hangings (3 kinds)
Die	φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm	φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm	φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm
Piston	Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm	Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm	Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm
Cylinder	Inner φ9.550 ± 0.007 mm, L160 mm	Inner φ9.550 ± 0.007 mm, L160 mm	Inner φ9.550 ± 0.007 mm, L160 mm
Temperature Range	Max. 400 °C	Max. 300 °C (Option: Max. 400 °C)	Max. 300 °C (Option: 400 °C)
Initial Weight	0.325 kgf	0.325 kgf	0.325 kgf
Additional Weight	1.20 〜 21.60（※ Please refer below）	1.20 〜 21.60（※ Please refer below）	1.20 〜 21.60（※ Please refer below）
Test Method	Method A: Manual (Option: Automatic Cutter) Method B: Automatic	Method A: Manual (Option: Automatic) Method B: Automatic	Method A: Manual (Option: Automatic) Method B: Automatic
Specimen Feeding		Automatic	Automatic
Weight Loading		Automatic	Automatic
Weight Change		Manual (Option: Automatic)	Manual (Option: Automatic)
Cylinder Cleaning		Automatic (Solvent Cleaning can also be Automatic)	Automatic (Solvent Cleaning can also be Automatic
Die Cleaning		Automatic	Automatic
Piston Cleaning		Manual (Option: Automatic)	Automatic
Die Cleaning Rod Cleaning		Manual (Option: Automatic)	Automatic
Cleaning Gauze Feeding		Manual	Automatic
Data Processing	Method A: Automatic (Measuring the weight of the cut off specimen is done by hand) Method B: Automatic	Method A: Manual (Option: Automatic) Method B: Automatic	Method A: Manual (Option: Automatic) Method B: Automatic
Method B Measuring	Rotary Encoder	Rotary Encoder	Rotary Encoder
Software		Windows Compatible	Windows Compatible
Standard Specification	SD Card Slot, LAN Port
Option	Mini Printer, Method A Air Pressure Type Automatic Cutter, Manual Type Die Plug, Safety Cover with Interlock Attached, Half Die, Air Pressure Type Automatic Loader (No.120-FWP-W) Additional Weight ( 1.20, 2.16, 3.80, 5.00, 10.00, 21.60 kgf.)	Hastelloy Spec, Specimen Purging Device, Specimen Drying Device, Air Compressor, Temperature Calibration Device, Exhaust Fan (Standard for No.120-LABOT), Smoke-Detection Sensor (Standard for No.120-LABOT) Additional Weight ( 1.20, 2.16, 3.80, 5.00, 10.00, 21.60 kgf.)
Accessories	Cleaning Rod (Die & Cylinder), Injection Rod, Funnel, Die Gauge, Method A Cutting Knife, Spirit Level, Gauze	Cleaning Rod (Die, Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder, Infundibulum, Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun	Cleaning Rod (Die, Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder, Infundibulum, Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun
Power Source	AC 100 V, 1-Phase, 15 A, 50/60 Hz or AC 200 V, 1-Phase, 10 A, 50/60 Hz	AC 200 V, 1-Phase, 10 A, 50/60 Hz AC 200 V, 1-Phase, 15 A, 50/60 Hz (ISO 1133-2 Compatable Type)	AC 200 V, 1-Phase, 10 A, 50/60 Hz AC 200 V, 1-Phase, 15 A, 50/60 Hz (ISO 1133-2 Compatable Type
Air Source	0.5 MPa or More(For Method A Pneumatic Type Weight Loading Device Specification)	0.5 MPa or More	0.5 MPa or More
Dimensions/ Weight(Approx.)	No.120FWP: W660× D450 × H1,020 mm/75 kg No.120FWP-WP-W: W710 × D450 × H1,060 mm/ 120 kg	1 Hanging: W675× D645 × H1,370 mm/200 kg 3 Hangings: W675 × D725 × H1,370 mm/ 220 kg	12,24 Hangings:W950 × D680 × H1,720 mm/ 350 kg 50 Hangings:W1,100× D700 × H1,750 mm/ 400 kg
