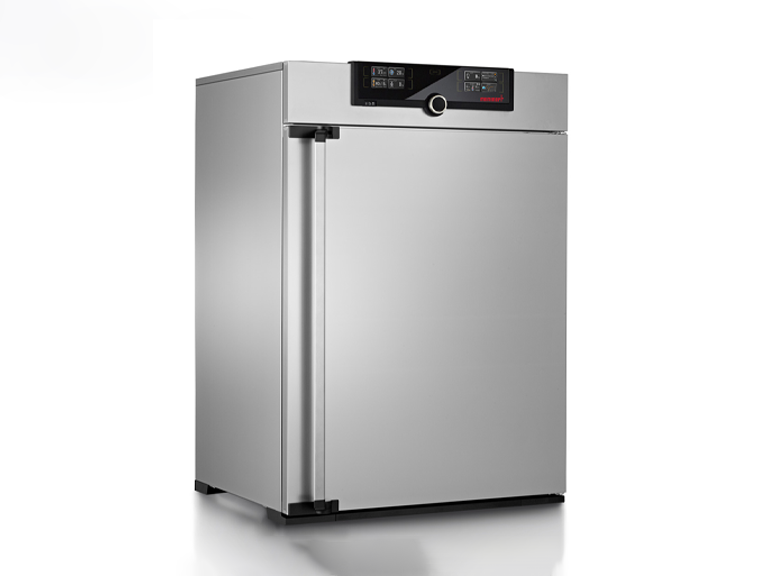

Universal oven UF260

Standard delivery Universal oven

The universally applicable lab oven U is Memmert’s classic appliance for temperature control in science, research and material tests in industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.

On this page, you can find all the essential technical data on the universal Memmert lab oven. Our customer relations team will be pleased to help if you want further information. If you should require a customised special solution, please contact our technical specialists at [email protected].

Working temperature range

at least 5 (UN/UNplus/UNm/UNmplus) or 10 (UF/UFplus/UFm/UFmplus) above ambient temperature to +300 °C

Setting accuracy temperature

up to 99.9 °C: 0.1 / from 100 °C: 0.5

Setting temperature range

+20 to +300 °C

Temperature sensor

1 Pt100 sensor DIN class A in 4-wire-circuit

Language setting

German, English, Spanish, French, Polish, Czech, Hungarian

ControlCOCKPIT

SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display

Timer

Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Function SetpointWAIT

the process time does not start until the set temperature is reached

Calibration

three freely selectable temperature values

adjustable parameters

temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime

Fan

forced air circulation by quiet air turbine, adjustable in 10 % steps

Fresh air

Admixture of pre-heated fresh air by electronically adjustable air flap

Vent

vent connection with restrictor flap

Documentation

programme stored in case of power failure

Programming

AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).

Temperature control

adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature

Autodiagnostic system

for fault analysis

Door

fully insulated stainless steel door with 2-point locking (compression door lock)

Internals

2 stainless steel grid(s), electropolished

Works calibration certificate

Calibration at +160°C

Dimensions

w_(A) x h_(B) x d_(C): 640 x 800 x 500 mm (d less 39 mm for fan)

Interior

easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides

Volume

256 l

Max. number of internals

9

Max. loading of chamber

300 kg

Max. loading per internal

20 kg

Dimensions

w_(D) x h_(E) x d_(F): 824 x 1183 x 684 mm (d +56mm door handle)

Housing

rear zinc-plated steel

Voltage Electrical load

230 V, 50/60 Hz
approx. 3400 W

Voltage Electrical load

115 V, 50/60 Hz
approx. 1800 W

Set Up

The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.

Altitude of installation

max. 2,000 m above sea level

Ambient temperature

+5 °C to +40 °C

Humidity rh

max. 80 %, non-condensing

Overvoltage category

II

Pollution degree

2

Transport information

Customs tariff number

Country of origin

Federal Republic of Germany

WEEE-Reg.-No.

Dimensions approx incl. carton

w x h x d: 930 x 1380 x 930 mm

Net weight

approx. 110 kg

Gross weight carton

approx. 161 kg
