Measuring principle

UCI Method, corresponds to DIN 50159, ASTM A1038

Test indenter

Vickers diamond 136°

Test loads
Newton scale (1kgf = 9.81 N)

Motor probes: 1N (0.1 kgf), 3N (0.3kgf) and 8.6 N (0.9 kgf) Handheld Probes: 10N (1 kgf), 30N (3kgf), 49N (5kgf), 98N (10kgf), (Other test loads on request)

Hardness scales and range
(according to relevant standards), in this case table A1 respectively T1, T2 (low alloy steel). Different measuring ranges are valid for other materials. When exceeding the limits the conversion range will be extended. The calculated values are highlighted in red besides the original data in HV.

Note:
Conversions are acc. to latest ASTM E140-12b^Ԑ1 (2013) and EN ISO 18265:2014.
Conversions into tensile strength: 98N (10kgf) test load only.

Vickers HV 10 – 1999 (9999)
Brinell HB 76 – 618
Rockwell HRB 41 – 105
Rockwell HRC 20,3 – 68
Rockwell HRE 70 – 108,5
Rockwell HRF 82,6 – 115,1
Rockwell HRA 60,7 – 85,6
Rockwell HRD 40,3 - 76,9 (EN ISO 18265 only)
Rockwell HR45N 19,9 – 75,4
Knoop HK 87 – 920 (ASTM E140 only)
Shore HS 34,2 – 97,3 (nur ASTM E140)
Zugfestigkeit MPa 255 – 2180 (EN ISO 18265 only)

Measurement uncertainty*

< 4 % (HV5, HV 10). For other test loads and ranges see table below.

Relative repeatability*

< 5 % (HV5, HV 10). For other test loads and ranges see table below.

* exceeds DIN 50159, dependent on test load and range (see table below). Specifications are valid for 5 measurements using Vickers reference blocks and according to test conditions given in standard DIN 50159.

Operating time

>10 hours in measurement operation (depending on system performance, temperature and instrument settings), up to 8 hours continuous operation, quick exchangeable battery pack (3.7V 3900mAh LiPolymer)

Operating Temperature

Probe: 0°C to ~ +45°C Instrument: -10° ~ +50°C // Charging +10°C ~ +40°C

Storage Temperature

-20°C ~ +70°C

Humidity

Max. 90%, non-condensing

Dimensions

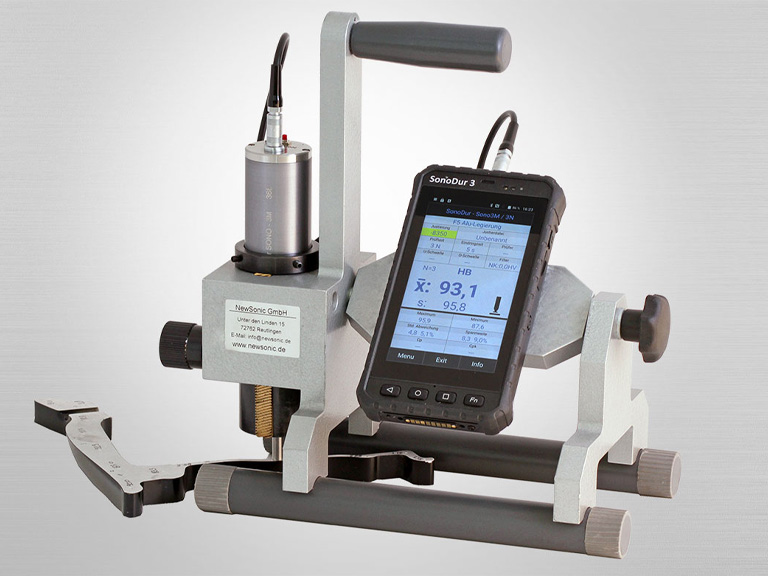

Instrument ca. 164x86x23 mm, Motor probe Ø38mm, L=190 mm Handheld probe Ø25 mm, L=176 mm (free length of rod ca. 12,5 mm) Handheld probe Ø25 mm, L=207 mm (free length rod ca. 43 mm)

Weight

Instrument ca. 320 gr (incl. battery pack)
Handheld probe ca. 280 gr
Motor probe ca. 370 gr

Processor and Memory

ARM® Cortex™-A53 Octa Core 1.3 GHz / System 2GB RAM / storage me mory 16 GB eMMC / Micro SD card 4 GB (up to 32 GB )

Operating system

Android 5.1 (Android 7.0)

Keypad

4 function keys, system touch keyboard

Power

Main battery: 3,7V / 3900mAh, LiPo hard pack, quick exchange Charging time:

Display

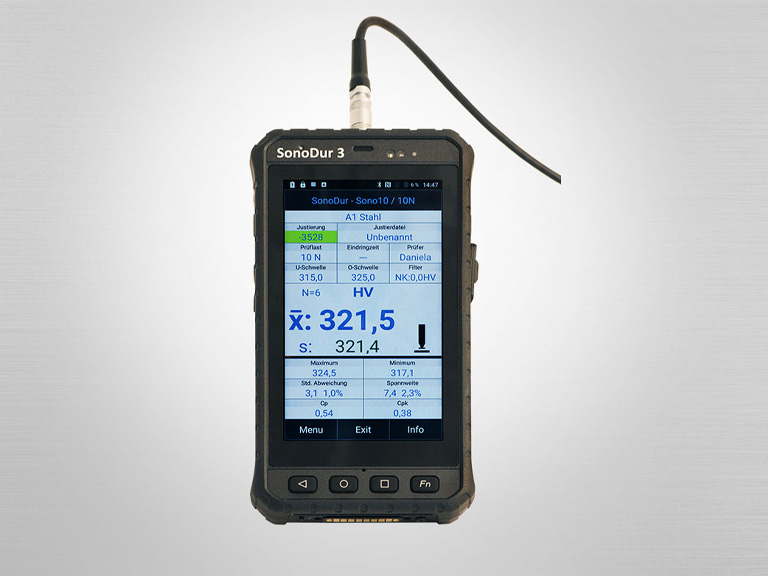

5“ sunlight readable multi touch display (1280x720 pixel), LED-backlight (500 Cd/m2), adjustable

Interfaces

Jack for 5VDC operating/ charging |Docking connector (charging) USB 2.0 Micro USB (PC) / probe connector Lemo 4 pos. Micro SD-card 4 GB (up to 32 GB) | 2x SIM card WLAN 802.11 a/b/g/n | WCDMA/HSDAP/HSPUA, FDD-LTE / TDD-LTE) | GSM/GPRS/EDGE (b2/b3/b5/b8 | GPS / AGPS / GLONASS Bluetooth 4.0 (supports BLE mode) | NFC | Speaker, microphone

Sensors / Camera / LED

Light sensor, G-sensor, proximity sensor, rear camera 8 mega-pixel, multicolor status LED

IP-Proof

IP65 according IEC 60529 Edition 2.1:2001-02

Drop test

MIL-STD-810G Methode 516.6, 4 ft.

Shock Test

MIL-STD-810G Methode 516.6 Prozedur I

Vibration Test

MIL-STD-810G Methode 514.6 Prozedur I

Instrument Language

D, EN, IT, FR, SP, PL, CZ, CN - more on request
