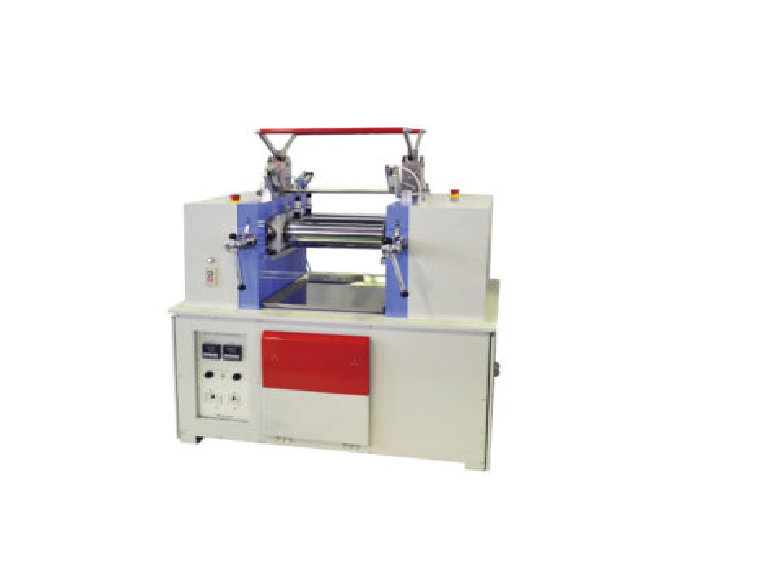

Thiết bị máy trộn nhựa cao su model No.191-TM/No.191-WM

Model

No.191-TM TEST MIXING ROLL (Electric Heating)

No.191-WM TEST MIXING ROLL

Roll

φ3″ × 8″、 φ4″ × 8″、 φ5″ × 12″、 φ6″ × 15″、 φ8″ × 20″(5 kinds)

φ3″ × 8″、 φ4″ × 8″、 φ5″ × 12″、 φ6″ × 15″、 φ8″ × 20″(5 kinds)

Heating Method

Electric Heating (Cartridge Heater)

Steam Heating※1, Hot water Heating, Oil Heating  (Rotary Joint)

Temperature Range

Max. 200 °C (Option: Max. 300 °C)

Max. 200 °C

Gear Ratio

1：1.25

1：1.25

Roll Rotation Speed

Front 12.5 to 31.25 rpm, Rear 10 to 25 rpm

Front 12.5 to 31.25 rpm, Rear 10 to 25 rpm

Safety Device

Knee Punch Stop Plate, Emergency Stop SW, Overload Protecting Metal Breaker

(Option: Y-Shape type Emergency Stop Bar, Area Optical Sensor, Inverse Rotation Device)

Oiler

Needle Valve type

Needle Valve type

Accessories

Shifting Plate: 1 set, Mill Pan, High-Temp. Lubricant

Shifting Plate: 1 set, Mill Pan, High-Temp. Lubricant

Option

Variable Speed Control Spec, Digital Temperature Controller, Automatic Lubricating Device,

Doctor Device, Hot Water Circulation Tank (Only for WM Model),

Oil Circulating Device (Only for WM Model)

Variable Speed Control Spec, Automatic Lubricating Device,

Doctor Device, Heating Medium Circulation Tank ( Choose Hot water or Oil )

Power Source

AC 200 V, 3-Phase, 20 to 50 A, 50/60 Hz

AC 200 V, 3-Phase, 20 to 50 A, 50/60 Hz

Dimensions/ Weight (Approx.)

Differ by Specifications.

Differ by Specifications.
