Thiết bị máy thử độ dính của băng dính model No.145-D

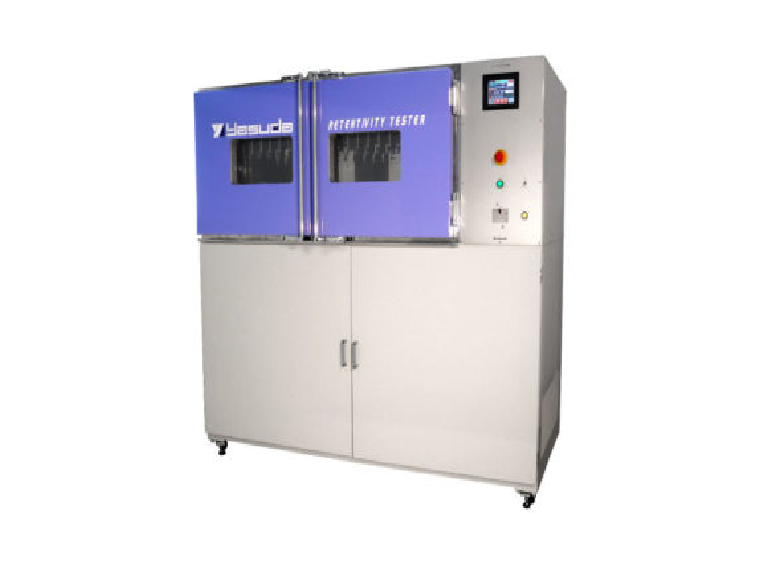

No.145-D RETENTIVITY TESTER

Hangings

3, 6, 10 or 20 Hangings (4 kinds)

Specimen

W25 mm or 12 ± 0.5 mm, L150 mm

Test Plate

W50 mm, L125 mm, T1.1 mm or More, Material: SUS304 Made

Weight Load

Initial 200 gf to Max. 1 kgf　(Standard 1,000 g ± 5 g)

Chuck

Upper: Hook type

Lower: Flat type (W30 mm)

Upper and Lower Chuck Distance

200 mm

Chuck Stroke

Max. 45 mm, Electric Concurrent Elevating Device (Up and Down Automatic Stop)

Temperature Range

Max. 150 °C

Timer

Preheating Time Setting, Drop Time Measuring, Test Time Setting

Option

Displacement Measurement Spec, Low Temperature Oven, Constant Temperature & Humidity Oven, Oven Light,90° Peeling Spec

Power Source

Differ by Specifications.

Dimensions/ Weight (Approx.)

Differ by Specifications.
