Thiết bị máy tạo vết nứt ở nhiệt độ thấp để kiểm tra vải da, nhựa, cao su model No.201, model No201

Model

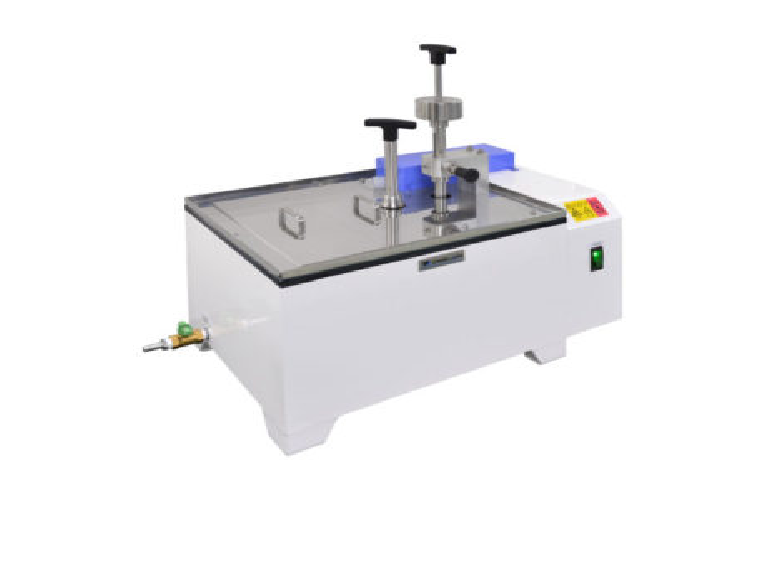

No.201 VINYL LEATHER CLOTH COLD PROOF TESTER

Hangings

6 Hangings

Specimen

W20 mm, L100 mm (Folded)

Chuck

W20 mm, D5 mm

Falling Weight

Gross 2.5 kg

Falling Height

50 mm

Temperature Range

Normal to -40 °C

(Dry Ice & Refrigeration Medium)

Refrigeration

Medium Amount

Approx. 12 L

Power Source

AC 100 V, 1-Phase, 3 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W570 × D400 × H650 mm, 50 kg

Model

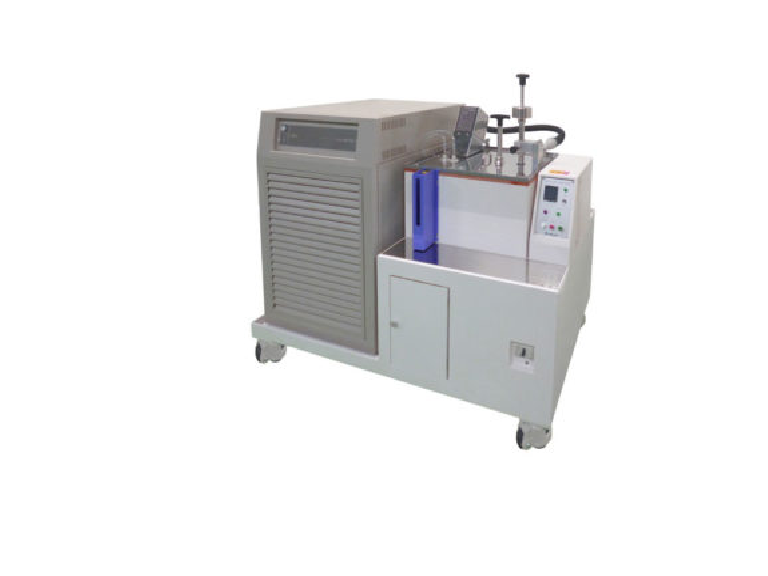

No.201-R VINYL LEATHER CLOTH COLD PROOF TESTER

(WITH REFRIGERATING MACHINE)

Hangings

6 Hangings

Specimen

W20 mm, L100 mm (Folded)

Chuck

W20 mm, D5 mm

Falling Weight

Gross 2.5 kg

Falling Height

50 mm

Temperature Range

Normal to -40 °C

(Refrigerator & Refrigeration Medium)

Refrigeration

Medium Amount

Approx. 16 L

Power Source

AC 200 V, 3-Phase, 20 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W1,250 × D650 × H1,100 mm, 295 kg
