Thiết bị máy quang phổ UV-Vis model DR1900, DR2800, DR3800, DR3900, DR 5000,DR 6000 hãng Hach

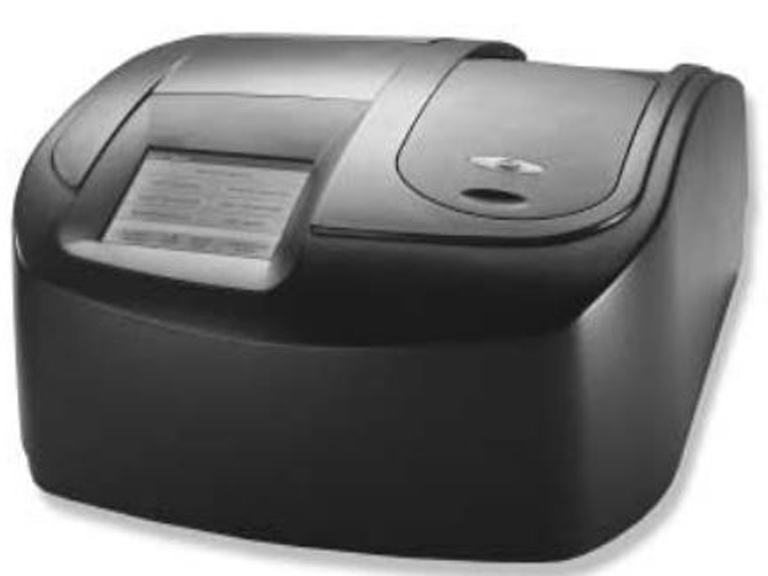

Beam Height:

10 mm

Data Logger:

1000 Points

Data Storage:

1000 points

Display:

Backlit Grayscale LCD Touch Screen

Display Resolution:

320 x 240 minimal

Display Size:

115.7 mm x 88.7 mm

Display Type:

Backlit

Enclosure Rating:

IP31

Includes:

115 and 230V power cords, printed user manual, CD procedures manual, matched pair of 1 inch glass sample cells, matched pair of 1 cm quartz sample cells, multi-cell holder

Interfaces:

2 x USB type A; 1 x USB type B (10 ft (3 m) cable, maximum)

Length:

500 mm

Mains Connection 2:

200 V - 240 V

Mains Connection 3:

50 / 60 Hz automatic changeover

Manual Languages:

English, German, French, Italian, Spanish, Dutch,Danish,Polish,Swedish,Turkish,Greek,Romanian

Hungarian,Portuguese,Czech,Slovenian,Russian,Serbian,

Bulgarian,English – USA, French – Canada,Spanish – SA,Portuguese – Brasilian,Chinese,Japanese,Korean

Max. operating humidity:

80 %

Max. Storage Humidity:

80 %

Operating Mode:

Transmittance (%), Absorbance and Concentration

Operating temperature range:

10 - 40 °C at 95% Relative Humidity (non-condensing)

Optical System:

Split Beam

Photometric Accuracy:

5 mAbs @ 0.0 - 0.5 Abs

Photometric Accuracy 2:

1 % at 0.50 - 2.0 Abs

Photometric Linearity:

< 0.5 % up - 2 Abs

Photometric Linearity 2:

≤ 1 % at > 2 Abs

Photometric Measuring Range:

± 3 Abs in the wavelength range 200 - 900 nm

Power Requirements:

100 V - 120 V

Power requirements (Hz):

50 - 60 Hz

Power requirements (Voltage):

100 - 240 VAC

Preprogrammed Methods:

> 240 pre-programmed water analysis methods

Sample cell compatibility:

1-in. square; 1-in. round; 1x1, 2x1, 5x1, 10x1 cm; 13 mm round; 16 mm round; 1 cm, 5 cm, and 1-in. Pour-Thru Cells; AccuVac Ampules

Sample Cell Compatibility:

1-in. square; 1-in. round; 1x1, 2x1, 5x1, 10x1 cm; 13 mm round; 16 mm round; 1 cm, 5 cm, and 1-in. Pour-Thru Cells; AccuVac Ampules

Scanning Speed:

900 nm/min in 1 nm steps;

1 complete scan/1 min

Source Lamp:

Tungsten (VIS) and Deuterium (UV)

Storage conditions:

-40 °C to 60 °C ; 80% Relative Humidity

Stray Light:

KI-solution at 220 nm > 3.3 Abs < 0.05%

User Interface Languages:

Chinese, English, French, Japanese, Korean, Brazilian Portuguese, Spanish (Please contact your Hach representative for availability of additional languages.)

User Programs:

50

Warranty:

12 months

Wavelength Accuracy:

± 1 nm in wavelength range 200 - 900 nm

Wavelength Calibration:

Automatic

Wavelength Range:

190 - 1100 nm

Wavelength Resolution:

0.1 nm

Wavelength Selection:

Automatic: based on selected program method

Automatic: based on barcode printed on TNTplus™ reagent vials

Manual: in all modes except stored programs

Weight:

15.5 kg

What's included?:

Includes: printed instrument manual, procedure manual on CD, power cords (115V and 230V), multi-cell holder, dust cover, 1-in. square matched glass sample cells, and 1 cm matched quartz sample cells

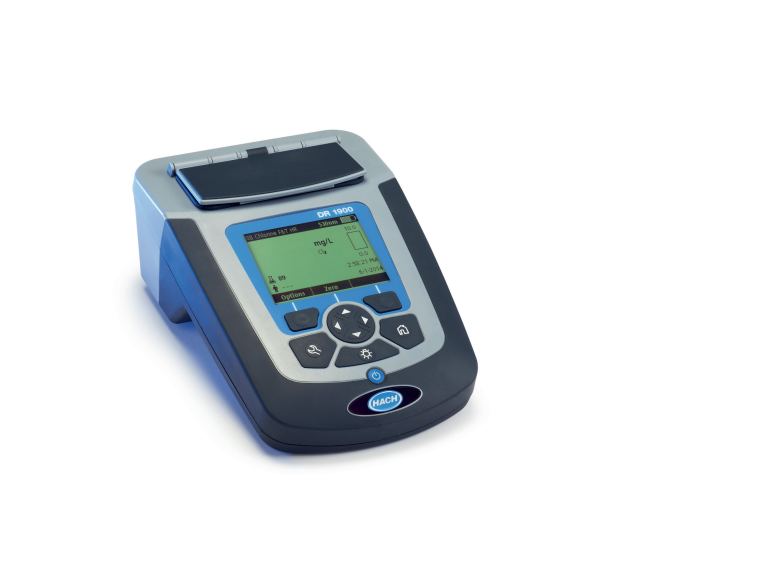

Battery Life:

15 days (typical) @ 5 readings a day / 5 day week without backlight*

* Backlight usage will decrease battery life.

Battery Requirements:

4, AA size alkali cells

Cuvette Compatibility 2:

10 mm square / 1 inch square and

13 mm / 16 mm / 1 inch round

Data Logger:

500 measured values (Result, Date, Time, Sample ID, User ID acc. to GLP)

Detector:

Silicon photodiode

Dimensions (H x W x D):

98 mm x 178 mm x 267 mm

Display:

Graphical display 240 x 160 pixel (LCD, b/w, backlit)

Enclosure Rating:

IP67

Includes:

Printed Basic Manual, CD with procedure manual (English) in pdf format. Set of vial adapter in carton box. Pkg of 4 AA Alkaline Battery. Dust Cover

Interface:

USB type Mini IP67 (with optional Module)

Mains Connection 2:

110 - 240 V / 50/60 Hz (* optional Module required. May not be available in all regions)

Mains Connection 3:

4x NiMH rechargeable Battery (* optional Module required. May not be avaliable in all region)

Operating Conditions:

10 - 40 °C (50 - 104 °F), max. 80 % relative humidity (non-condensing)

Operating Humidity:

Max. 80 % relative humidity (non-condensing)

Operating Mode:

Transmittance (%), Absorbance and Concentration

Operating Temperature:

10 - 40 °C

Optical System:

Reference beam, spectral

Photometric Accuracy:

± 0.003 Abs @ 0.0 - 0.5 Abs

Photometric Linearity:

Photometric Measuring Range:

< 0.5 % (0.5 - 2.0 Abs)

0 - 3 Abs (wavelength range 340 - 800 nm)

Power Module?:

No

Power supply:

4 x AA size Alkaline

4x NiMH rechargeable Battery*

Power supply*: 110 - 240 V; 50/60 Hz

(* optional Module required.

May not be available in all regions)

Reproducibility:

± 0.005 Abs (0 - 1 A)

Sample Cell Compatibility:

13 / 16 mm and 1 inch round adapter, 10 x 10 mm 1 inch square and 10x10mm

Source Lamp:

Xenon Flash

Storage conditions:

-30 to 60 °C (-22 to 140 °F), max. 80 % relative humidity (non-condensing)

Stray Light:

< 0.5 %T at 340 nm with NaNO2

Temperature Range:

0 - 50 °C (32 - 122 °F)

User Interface Languages:

English, French, German, Italian, Spanish, Portuguese, Bulgarian, Chinese, Czech,

Danish, Dutch, Finnish, Greek, Hungarian, Japanese, Korean, Polish, Romanian,

Russian, Slovenian, Swedish, Turkish

User Programs:

50

Warranty:

12 months

Wavelength Accuracy:

± 2 nm (range 340 - 800nm)

Wavelength Calibration:

Automatic

Wavelength Range:

340 - 800 nm

Wavelength Reproducibility:

± 0.1 nm

Wavelength Selection:

Automatic

Weight:

1.5 kg

What's included?:

Includes: portable spectrophotometer, printed basic instrument manual, dust cover, 1-in. square matched glass sample cells, AA alkaline batteries 4/pk, and a four-type adapter set.

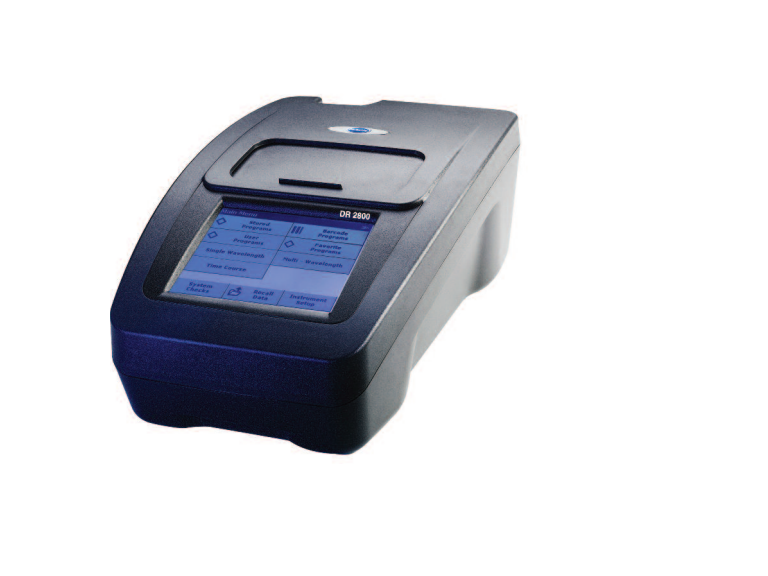

Operating Mode

Transmittance (%), Absorbance, and

Concentration

Source Lamp

Tungsten

Pre-Installed Programs

More than 130

Available User Programs

10

Data Storage

200 points

Export Capability

.csv (comma-separated values)

file format

Wavelength Range

400 to 900 nm

Wavelength Accuracy

±1.5 nm

Wavelength Resolution

1 nm

Spectral Bandwidth

5 nm

Wavelength Calibration

Internal, automatic at power-on,

visual feedback

Wavelength Selection

Automatic based on selected program

Enclosure Rating

IP41 with lid closed

IP42 with Protective Cover

Operating Temperature

10 to 40°C (50 to 104°F)

Operating Humidity

80% relative humidity, non-condensing,

maximum

Storage Requirements

Temperature: -40 to 60°C (-40 to 140°F)

Humidity: 80% relative humidity, noncondensing, maximum

Power Requirements

Line: 100 to 240 V; 47/63 Hz;

automatic changeover

Battery: Lithium-Ion 11 V/4400 mAh

Interface

USB 1.1 (10 ft. (3 m) cable, maximum)

Languages

English, French, German, Italian,

Spanish, Portuguese, Korean, Japanese,

Chinese, Czech, Danish, Dutch,

Hungarian, Polish, Romanian, Russian,

Slovak, Swedish, and Turkish

Connections

1 x USB Type A

1 x USB Type B

Sample Cell Compatibility

1-in. square

1-in. round

1 cm square

1 x 5 cm

13 mm round

16 mm round

Multipath 1-in./1 cm

Pour-Thru™ with 1-in./1 cm path length

Accessories

Included:

– 1-in. square matched glass

sample cells

– Cell adapters for 1-in.

round/AccuVac cells, 1x1 cm cells,

and multi-path 1-in./1 cm cells

– Universal power supply, 100 to 240V,

47/63Hz, with plug adapters for EU,

GB, US, China

– Protective cover for storing adapters

Optional:

– Hach Pour-Thru Cell

– Test Filter Set

– External USB Keyboard

– DataTrans™ Software

– Citizen PD-24 Printer

Dimensions

220 x 137 x 332 mm

(8.7 x 5.4 x 13.1 in.) width, height, depth

Weight

Without battery: 4.0 kg (8.8 lbs.)

With battery: 4.3 kg (9.5 lbs.)

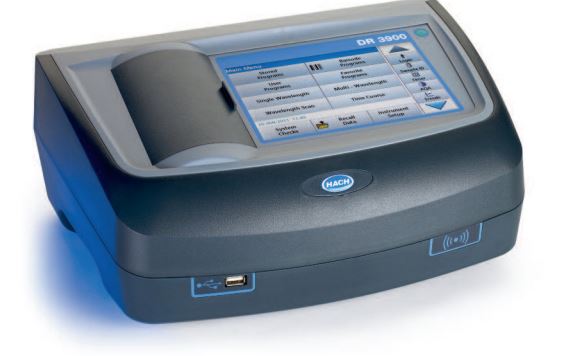

Specifi cations

Display mode

Transmission (%), absorbance and concentration, scan

Light source

Halogen lamp

Beam projection

Spectral reference beam technology

Wavelength range

320 to 1100 nm

Wavelength accuracy

±1.5 nm (Wavelength range from 340 to 900 nm)

Wavelength reproducibility

±0.1 nm

Wavelength resolution

1 nm

Wavelength calibration and selection

Automatic

Spectral bandwidth

5 nm

Photometric measurement range

±3.0 Abs (wavelength range from 340 to 900 nm)

Photometric accuracy

5 mAbs at 0.0 to 0.5 Abs, 1% at 0.5 to 2.0 Abs

Photometric linearity

<0.5% to 2 Abs, 1% at >2 Abs with neutral glass at 546 nm

Scattered light

0.1% at 340 nm with NaNO2

Display

7“ TFT WVGA colour touchscreen (800 × 480 pixels)

Data storage

2000 measurement data (result, date, time, sample ID, user ID)

Preprogrammable methods

>220

User programme

100

Cuvette compatibility

13 mm round cell, 1 cm and 5 cm rectangular cell, 1-inch round cell, 1-inch rectangular cell

Dimensions (H×W×D)

151 mm × 350 mm × 255 mm

Weight

4200 g

Operating conditions

-10 to 40 °C, max. 80% relative humidity (non-condensing)

Storage conditions

-30 to 60 °C, max. 80% relative humidity (non-condensing)

Enclosure rating

IP30

Power supply

Table power supply, 110 to 240 V; 50/60 Hz

Interfaces

USB type A (2), USB type B, Ethernet, RFID* module

Warranty

2 years

Order information and accessories

LPV440.99.00001

DR 3900 spectral photometer with RFID* technology

Product contents

Adapter “A” for 1” round and ACCUVAC/1 cm rectangular cells, basic handbook, CD with handbook and work processes in 5 languages (GB, D, F, I, E) in PDF format, EU power pack 100–240 V, 47–63 Hz, user

RFID* tag

LQV156.99.10001

RFID* set to sample identifi cation: 1 RFID* locator LOC 100, 2 user RFID* tags,

5 sample location RFID* tags, 15 sample RFID* tags in 5 colours

LQV157.99.10001

SIP 10 sipper module

LZV875

SIP 10 tube kit, Lagoprene + Tygon

LZV873

2 m Ethernet cable

LZV791

USB memory stick

5835900.00

PD 24 thermal printer

Service options

TSE-MC-DR3900

One-o inspection, service on demand

TSE-BC-DR3900

Basic maintenance contract

TSE-CC-DR3900

Comfort maintenance contract, with 60 months extended warranty

Beam Height:

10 mm

Data Logger:

1000 Points

Data Storage:

1000 points

Display:

Backlit Grayscale LCD Touch Screen

Display Resolution:

320 x 240 minimal

Display Size:

115.7 mm x 88.7 mm

Display Type:

Backlit

Enclosure Rating:

IP31

Includes:

115 and 230V power cords, printed user manual, CD procedures manual, matched pair of 1 inch glass sample cells, matched pair of 1 cm quartz sample cells, multi-cell holder

Interfaces:

2 x USB type A; 1 x USB type B (10 ft (3 m) cable, maximum)

Length:

500 mm

Mains Connection 2:

200 V - 240 V

Mains Connection 3:

50 / 60 Hz automatic changeover

Manual Languages:

English, German, French, Italian, Spanish, Dutch,Danish,Polish,Swedish,Turkish,Greek,Romanian

Hungarian,Portuguese,Czech,Slovenian,Russian,Serbian,

Bulgarian,English – USA, French – Canada,Spanish – SA,Portuguese – Brasilian,Chinese,Japanese,Korean

Max. operating humidity:

80 %

Max. Storage Humidity:

80 %

Operating Mode:

Transmittance (%), Absorbance and Concentration

Operating temperature range:

10 - 40 °C at 95% Relative Humidity (non-condensing)

Optical System:

Split Beam

Photometric Accuracy:

5 mAbs @ 0.0 - 0.5 Abs

Photometric Accuracy 2:

1 % at 0.50 - 2.0 Abs

Photometric Linearity:

< 0.5 % up - 2 Abs

Photometric Linearity 2:

≤ 1 % at > 2 Abs

Photometric Measuring Range:

± 3 Abs in the wavelength range 200 - 900 nm

Power Requirements:

100 V - 120 V

Power requirements (Hz):

50 - 60 Hz

Power requirements (Voltage):

100 - 240 VAC

Preprogrammed Methods:

> 240 pre-programmed water analysis methods

Sample cell compatibility:

1-in. square; 1-in. round; 1x1, 2x1, 5x1, 10x1 cm; 13 mm round; 16 mm round; 1 cm, 5 cm, and 1-in. Pour-Thru Cells; AccuVac Ampules

Sample Cell Compatibility:

1-in. square; 1-in. round; 1x1, 2x1, 5x1, 10x1 cm; 13 mm round; 16 mm round; 1 cm, 5 cm, and 1-in. Pour-Thru Cells; AccuVac Ampules

Scanning Speed:

900 nm/min in 1 nm steps;

1 complete scan/1 min

Source Lamp:

Tungsten (VIS) and Deuterium (UV)

Storage conditions:

-40 °C to 60 °C ; 80% Relative Humidity

Stray Light:

KI-solution at 220 nm > 3.3 Abs < 0.05%

User Interface Languages:

Chinese, English, French, Japanese, Korean, Brazilian Portuguese, Spanish (Please contact your Hach representative for availability of additional languages.)

User Programs:

50

Warranty:

12 months

Wavelength Accuracy:

± 1 nm in wavelength range 200 - 900 nm

Wavelength Calibration:

Automatic

Wavelength Range:

190 - 1100 nm

Wavelength Resolution:

0.1 nm

Wavelength Selection:

Automatic: based on selected program method

Automatic: based on barcode printed on TNTplus™ reagent vials

Manual: in all modes except stored programs

Weight:

15.5 kg

What's included?:

Includes: printed instrument manual, procedure manual on CD, power cords (115V and 230V), multi-cell holder, dust cover, 1-in. square matched glass sample cells, and 1 cm matched quartz sample cells
