Thiết bị máy kiểm tra khả năng chảy Spread meter chất tạo màu và mực model No.506, model No.506-PCM

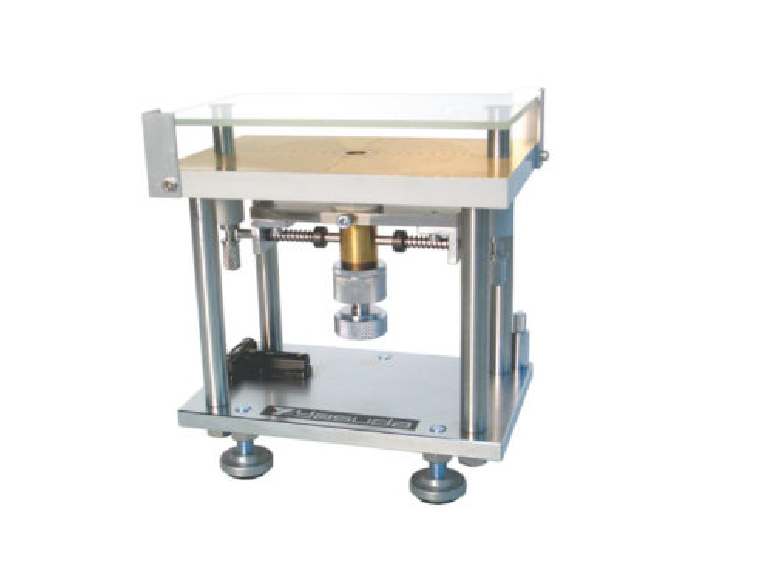

No.506 SPREAD METER

Load Plate

Mass 115 ± 1 g (Material: Glass or Acrylic)

Scale

φ12 to φ100 (Pitch R1 mm)

Specimen Hole

Inner Diameter φ10 ± 0.03 mm, D6.37 ± 0.02 mm (Capacity 0.5 ml)

Falling Height

20 ± 1 mm

Option

Hot Water Circulation Tank

Dimensions/ Weight (Approx.)

W160 × D110 × H180 mm, 4 kg

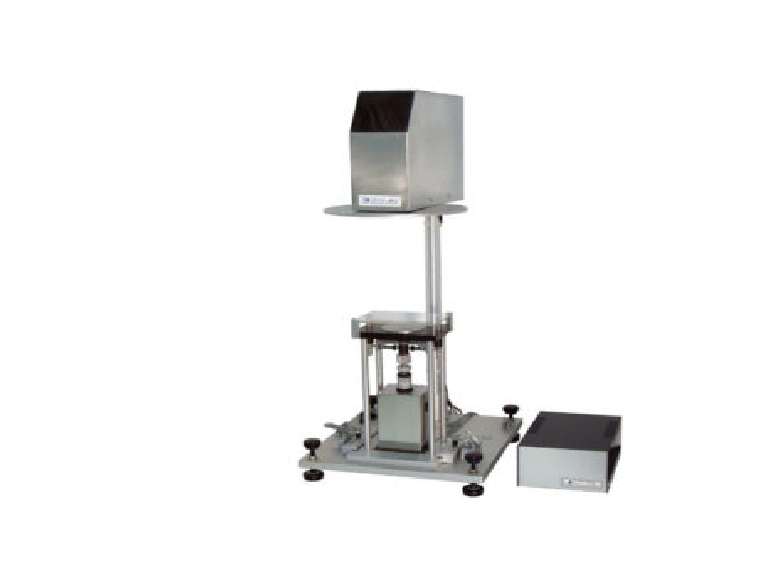

No.506-PCM AUTOMATIC SPREAD METER

Measuring Time

10, 30, 60, 100, 150, 210 and 300 sec

Output

Diameter after 60 sec (D), Slope(S), Intercept(IC), Yield Value(YV)

Software

Windows Compatible

Option

Additional Weight Loading Device

Power Source

AC 100 V, 1-Phase, 5 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W315 × D350 × H700 mm,

Main Body 20 kg
