Thiết bị máy kiểm tra độ cứng liên quan đến dệt may model No.170, model No.320, model No.312, model No.342, model No.118, model No.118-D

Model

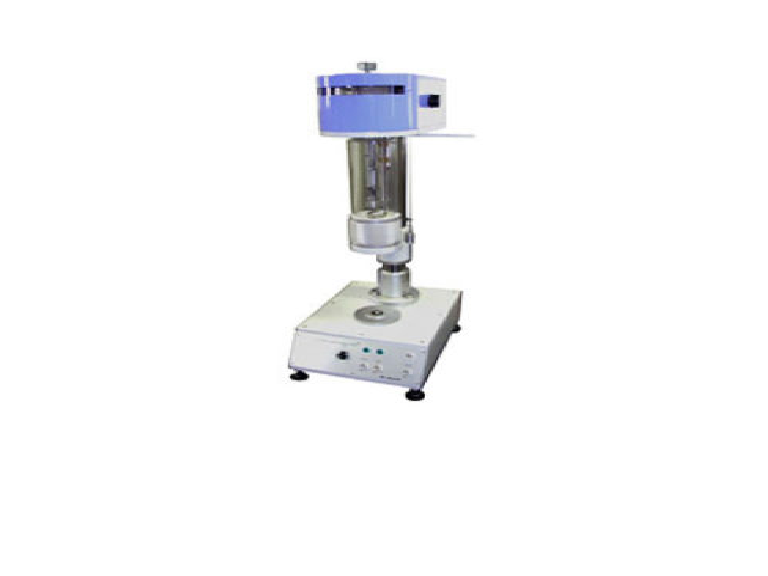

No.170 CLASH-BERG TORSION FLEXIBILITY TESTER (MANUAL)

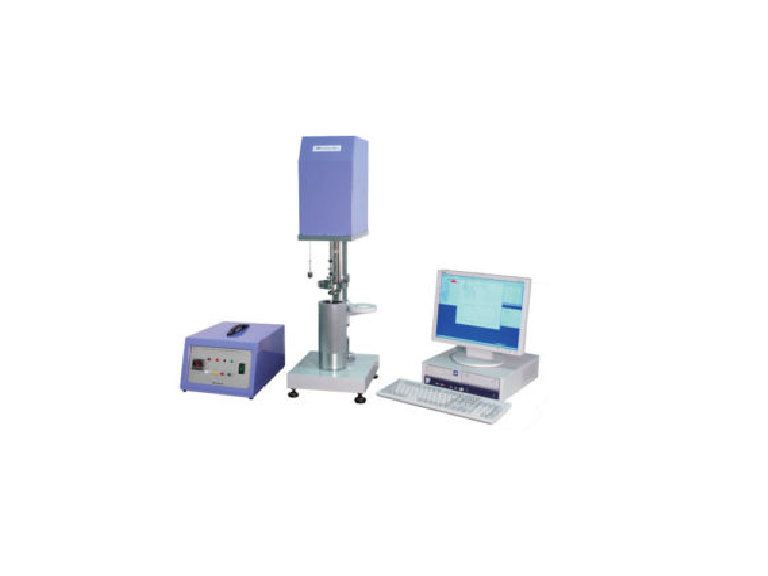

No.170-AUTO CLASH-BERG TORSION FLEXIBILITY TESTER (AUTOMATIC)

Specime

W6.35 ± 0.03 mm, L64 mm, T0.8 to 1.5 mm

W6.35 ± 0.03 mm, L64 mm, T0.8 to 1.5 mm

Chuck Distance

40 mm

40 mm

Angle Scale

0 to 360° (Scale 1°)

*Max. Angle 270°

0 to 270° (Scale 1°)

Detection: Rotary Encoder

Temperature Range

-60 to 100 °C (Dry Ice Cooling)

-60 to 100 °C (Dry Ice Cooling)

Heat-Up Speed

2 °C/min

2 °C/min

Torque Device

Pulley Type

Pulley Type

Weight

5 g, 10 g, 20 g, 50 g

5 g, 10 g, 20 g, 50 g

Software

―

Windows Compatible

Accessories

Duwar Flask, Thermometer: 2 pcs, Specimen Cutter,

Notching Tool, Specimen Setting Gauge

Duwar Flask, Thermometer: 2 pcs, Specimen Cutter,

Notching Tool, Specimen Setting Gauge

Power Source

AC 100 V, 1-Phase, 10 A, 50/60 Hz

AC 100 V, 1-Phase, 10 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W300 × D400 × H900 mm, 36 kg

Tester Body:

W320 × D400 × H1,230 mm, 50 kg

Control Box:

W350 × D460 × H355 mm, 17 kg

Model

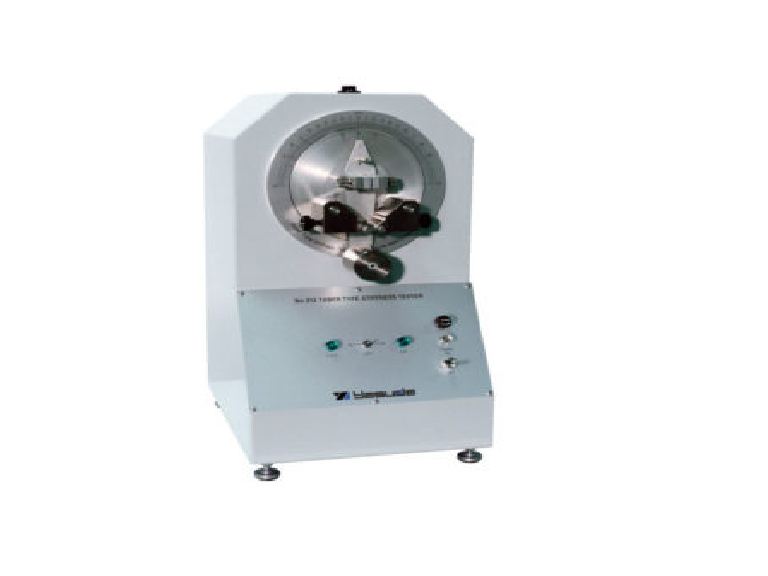

No.312 TABER TYPE STIFFNESS TESTER

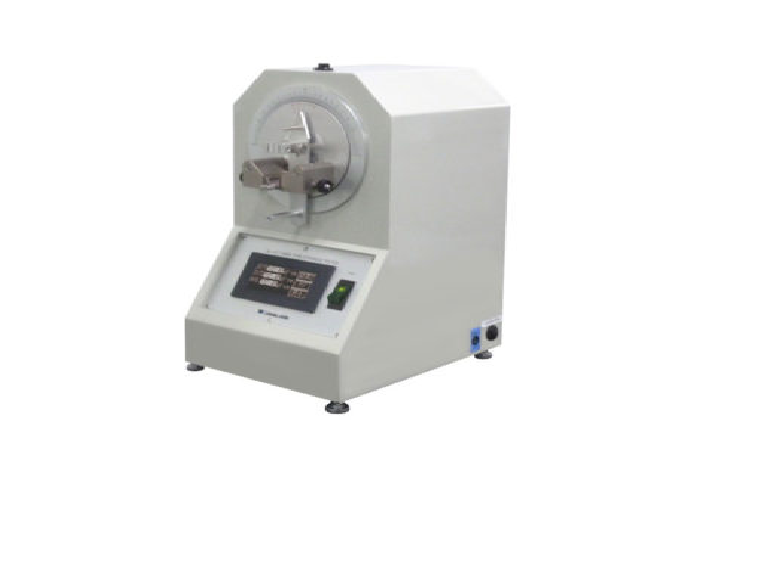

No.312-D ABER TYPE STIFFNESS TESTER

Moment

Max. 490 mN⋅m (5,000 gf⋅cm)

Max. 490 mN⋅m (5,000 gf⋅cm)

Load Scale

Left-Right 0 to 100

Left-Right 0 to 100

Weight Load

100 gf, 200 gf, 500 gf

100 gf, 200 gf, 500 gf

Load Position

100 mm from the Pivot

100 mm from the Pivot

Bending Angle

Left-Right 15° or 7.5°

Left-Right 15° or 7.5°

Bending Speed

180 ± 40°/min

180 ± 40°/min

Specimen

W30 to 40 mm (Standard: 38.0 ± 0.2 mm), L 70 mm, T3.2 mm or Less

W30 to 40 mm (Standard: 38.0 ± 0.2 mm), L 70 mm, T3.2 mm or Less

Roller

φ8.60 ± 0.05 mm for Test

φ8.93 ± 0.05 mm for Positioning

φ8.60 ± 0.05 mm for Test

φ8.93 ± 0.05 mm for Positioning

Power Source

AC 100 V, 1-Phase, 3 A, 50/60 Hz

AC 100 V, 1-Phase, 3 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W300 × D350 × H500 mm, 25 kg

W300 × D350 × H520 mm, 25 kg

Model

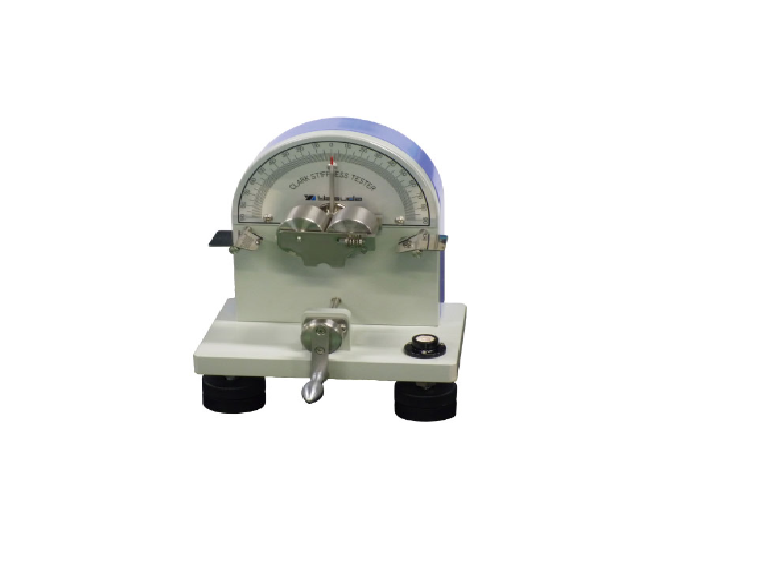

No.342 CLARK TYPE STIFFNESS TESTER

Specimen

Paper: W15 to 50 mm (Standard 30 mm), L75 mm or More

Textile:

W20 mm, L150 to 200 mm

Roller

φ29.0 ± 1.0 mm

Angle Scale

Left-Right 0 to 90° (Scale 1°)

Chuck Rotation Speed

1.0 ± 0.1 rpm (Manual)

Dimensions/ Weight (Approx.

W160 × D170 × H210 mm, 3 kg

Model

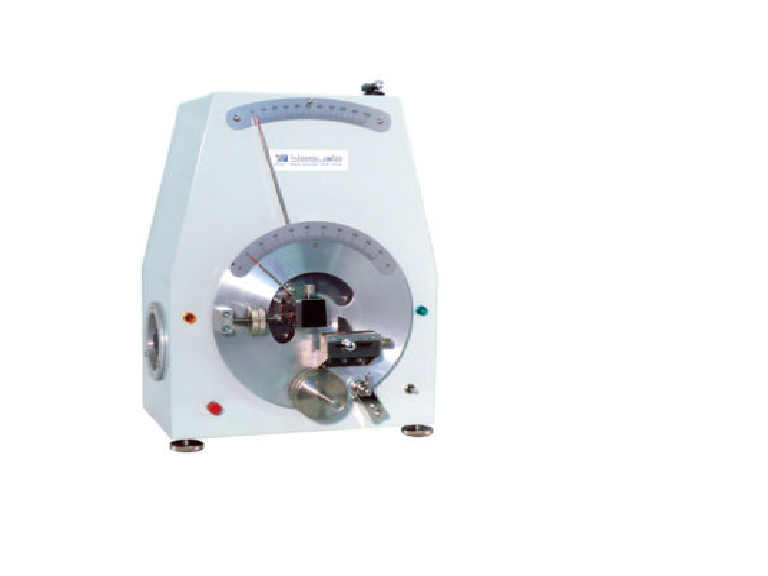

No.118 OLSEN TYPE STIFFNESS TESTER (HEAVY LOAD TYPE)

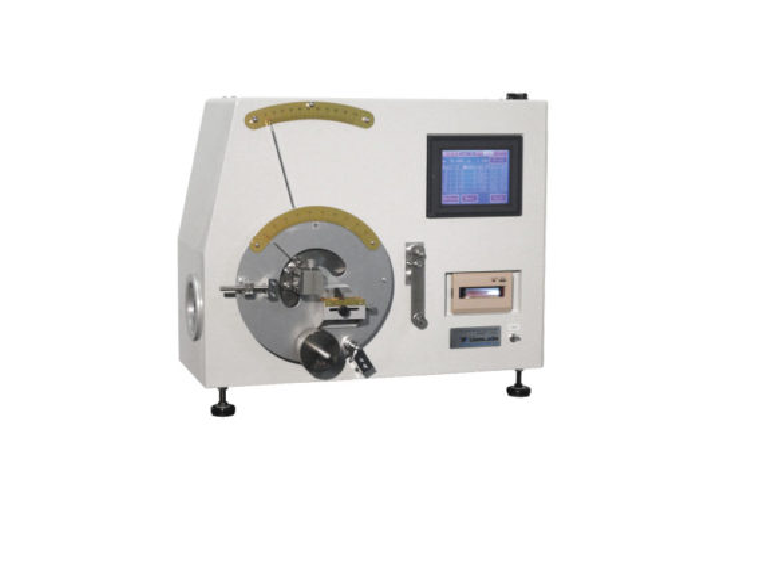

No.118-D OLSEN TYPE STIFFNESS TESTER (HEAVY LOAD TYPE) (DIGITAL)

Moment

Max. 5 lb⋅in (1 lb = 453 g)

Max. 5 lb⋅in (1 lb = 453 g)

Load Scale

0 to 100 % (Scale 1 %)

0 to 100 % (Scale 1 %)

Weight

0.5 lb: 1 pc, 1 lb: 2 pcs

0.5 lb: 1 pc, 1 lb: 2 pcs

Load Position

4″ from Pivot

4″ from Pivot

Angle Scale

0 to 90° (Scale 1°)

0 to 90° (Scale 1°)

Chuck Rotation Speed

60°/min

60°/min

Specimen

W5 ± 0.5 mm or 13 ± 0.5 mm, L60 mm or more, T1.0 ± 0.1 mm or T2.0 ± 0.2 mm

W5 ± 0.5 mm or 13 ± 0.5 mm, L60 mm or more, T1.0 ± 0.1 mm or T2.0 ± 0.2 mm

Support Length

7 to 50 mm

7 to 50 mm

Chuck Width

30 mm

30 mm

Power Source

AC 100 V, 1-Phase, 5 A, 50/60 Hz

AC 200 V, 1-Phase, 3 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W340 × D300 × H460 mm, 10 kg

W570 × D350 × H490 mm, 15 kg
