Thiết bị máy kiểm tra độ bền nén của bìa giấy model No.316

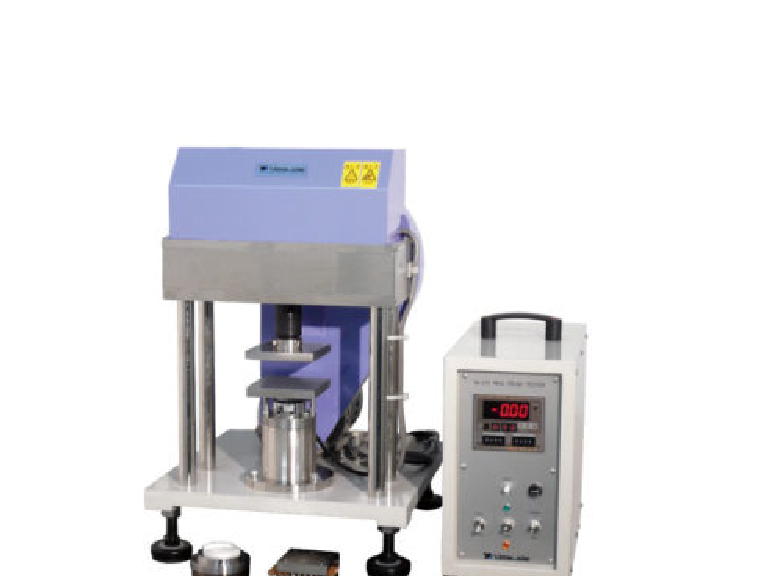

No.316 RING CRUSH TESTER

Specimen

W12.7 ± 0.1 mm, L152.4 to 2.5 mm, T580 µm or Less

Specimen Holder

Outer Frame: Inner Diameter φ49.30 ± 0.05 mm, D6.35 ± 0.25 mm

Inner Frame: 9 kinds (To be Specified)

Load Measuring

Load Cell: Max. 1,999 N

Compression Plate

100 × 100 mm

Compression Speed

12.5 ± 2.5 mm/min

Option

Pin Attachment, Vertical Compression Jig

Power Source

AC 100 V, 1-Phase, 10 A, 50/60 Hz

Dimensions/ Weight (Approx.)

Tester Body: W350 × D400 × H540 mm, 60 kg

Control Box: W135 × D350 × H250 mm, 10 kg
