Thiết bị máy hàn nhiệt model No.212,model No.213

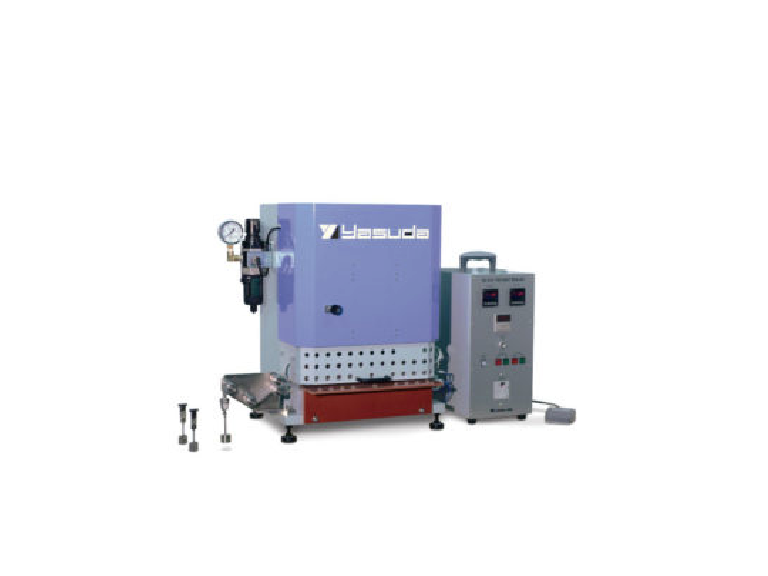

No.212 YSS HEAT SEALER

Seal Plate

Min. W5 mm to Max. W20 mm, L300 mm

Temperature Range

Max. 300 °C

*The surface flatness will only be ensured at the specified temperature.

Pressing Method

Pneumatic Cylinder, Stroke Max. 45 mm

Pressure Gauge

Max. 0.5 MPa (Scale 0.01 MPa)

Timer

Max. 99.99 sec

Accessories

Foot Switch

Option

Safety Cover, Jig for Hot Tack, Specimen Retaining, Air Compressor

Power Source

AC 100 V, 1-Phase, 15 A, 50/60 Hz

Air Source

0.5 MPa or More

Dimensions/ Weight (Approx.)

Tester Body: W450 × D385 × H650 mm, 105 kg

Control Box: W230 × D450 × H515 mm, 15 kg

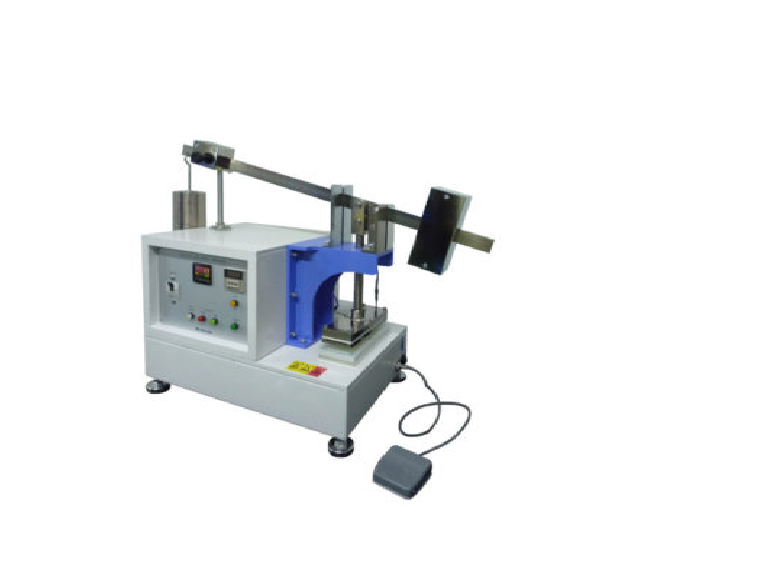

No.213 JIS HEAT SEALER

Seal Plate

20 × 40 mm × 3 line or 20 × 180 × 1 line

Temperature Range

Max. 300 °C

*The surface flatness will only be ensured at the specified temperature.

Pressing Method

Weight Loading, Opening 8 mm

Load Pressure

49 to 294 kPa (0.5 to 3.0 kgf/cm2)

Timer

Max. 99.99 sec

Accessories

Foot Switch

Power Source

AC 100 V, 1-Phase, 10 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W750 × D350 × H670 mm, 65 kg
