Thiết bị máy đo thời gian gel hóa của nhựa nhiệt dẻo model No.153, model No.153-GTR

Model

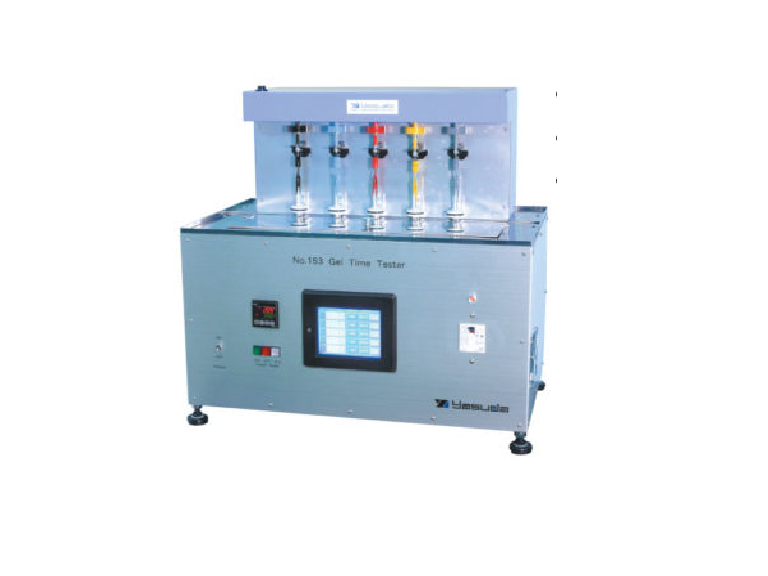

No.153 GEL TIME TESTER

(MAGNET TYPE

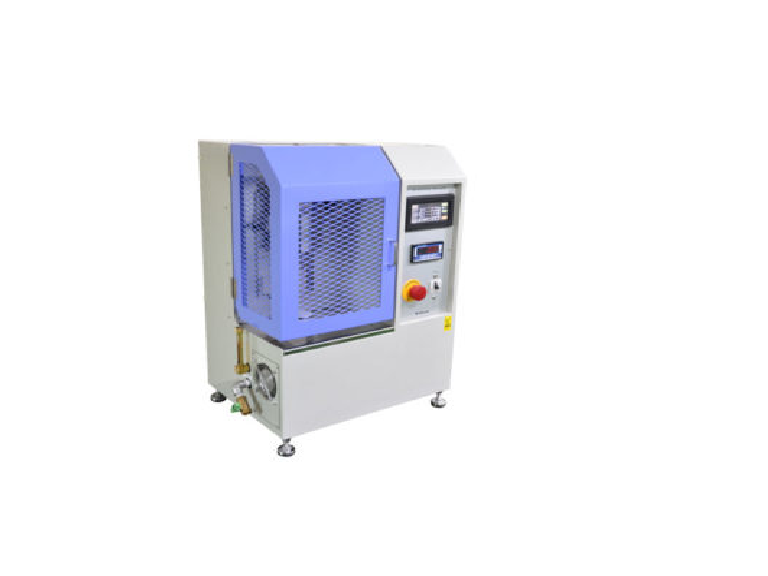

No.153-GTR GEL TIME TESTER

(TORQUE METER TYPE)

Hangings

2 or 5 Hangings (2 kinds)

1 Hanging

Detecting Torque

3.7 to 4.0 gf⋅cm

Max. 20.0 mN⋅m

Temperature Range

Max. 200 °C

(Option: Refrigerator 10 to 200 °C)

Max. 200 °C

(Option: Refrigerator 10 to 200 °C)

Rotor Rotation Speed

24 rpm (60 Hz), 25 rpm (50 Hz)

24 rpm (60 Hz), 25 rpm (50 Hz)

Timer

Max. 999,999 s or Max. 99 hr 59 min 59 sec

Max. 999,999 s or Max. 99 hr 59 min 59 sec

Accessories

Rotor (φ5 × 110 mm), 100 pcs each

Test Tube (Outer φ12 × 90 mm): 100 pcs each

Rotor (φ5 × 110 mm), 100 pcs each

Test Tube (Outer φ12 × 90 mm): 100 pcs each

Option

Silicon Oil(2 L)

Silicon Oil(2 L), Software, Chart Recorder

Power Source

AC 100 V, 1-Phase, 10 A, 50/60 Hz

AC 100 V, 1-Phase, 10 A, 50/60 Hz

Dimensions/ Weight (Approx.)

2 Hangings:

W380 × D410 × H610 mm/ 28 kg

5 Hangings:

W730 × D420 × H670 mm/ 53 kg

W570 × D375 × H720 mm/ 30 kg
