Thiết bị máy đo dộ thấm khí của giấy, các tông, và hàng dệt model No.323, model No.323-AUTO

Model

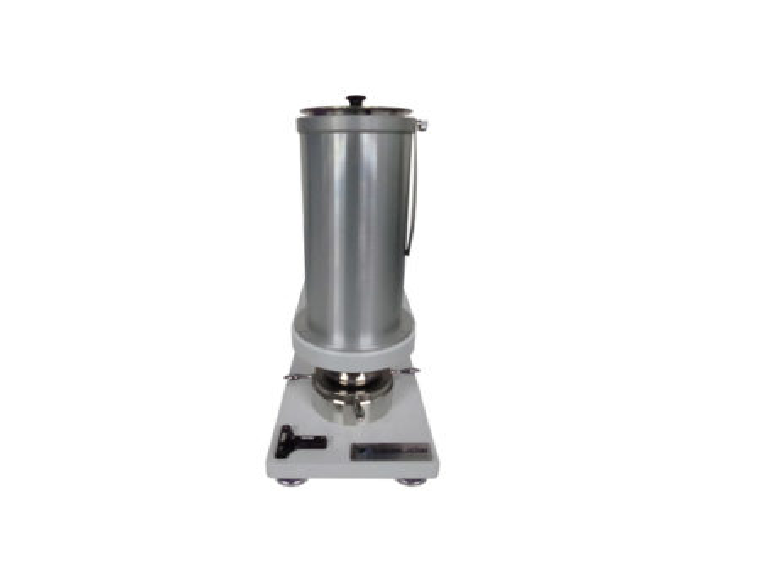

No.323 GURLEY TYPE DENSOMETER

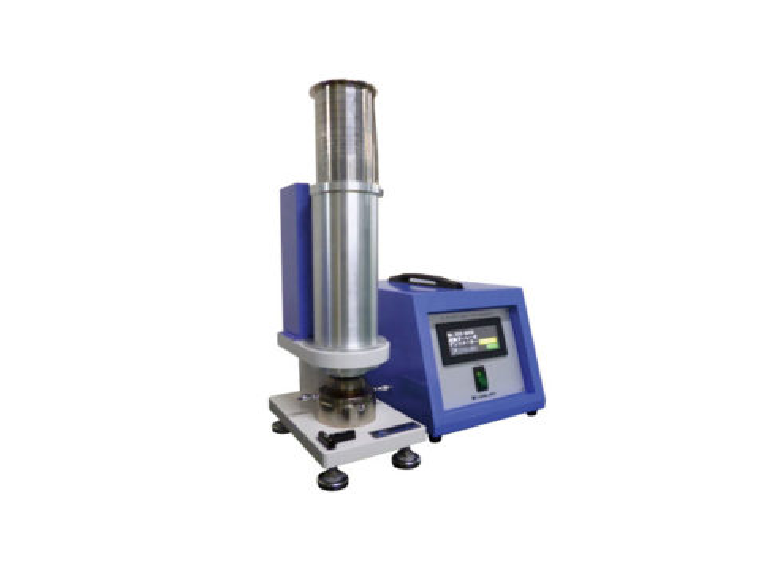

No.323-AUTO GURLEY TYPE DENSOMETER (AUTOMATIC)

Specimen

50 × 50 mm

50 × 50 mm

Clamp

φ28.6 ± 0.1 mm (Permeation Area 642 mm2)

φ28.6 ± 0.1 mm (Permeation Area 642 mm2)

Outer Cylinder

Inner Diameter φ82.6 mm, H254 mm, Marker 127 mm from Bottom

Inner Diameter φ82.6 mm, H254 mm, Marker 127 mm from Bottom

Inner Cylinder

Outer Diameter φ76.2 mm, Inner Diameter φ74 mm, H254 mm, Mass 567 ± 0.5 g

Outer Diameter φ76.2 mm, Inner Diameter φ74 mm, H254 mm, Mass 567 ± 0.5 g

Air Volume

0 to 100 ml (Scale 25 ml), 100 to 350 ml (Scale 50 ml)

0 to 100 ml (Scale 25 ml), 100 to 350 ml (Scale 50 ml)

Time Measuring

Manual (Stopwatch)

Automatic Max. 99999.9 sec

Detection: Micro Optical Senser

Accessories

Machine Oil

Machine Oil

Option

Attachment (φ10 mm)

Attachment (φ10 mm)

Power Source

―

AC 100 V, 1-Phase, 3 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W150 × D230 × H420* mm/ 20 kg

*H580 mm: When Inner Cylinder is set in the test position.

Tester Body:

W150 × D230 × H420* mm/ 20 kg

*H580 mm: When Inner Cylinder is set in the test position.

Control panel:

W250 × D450 × H280 mm/ 8 kg
