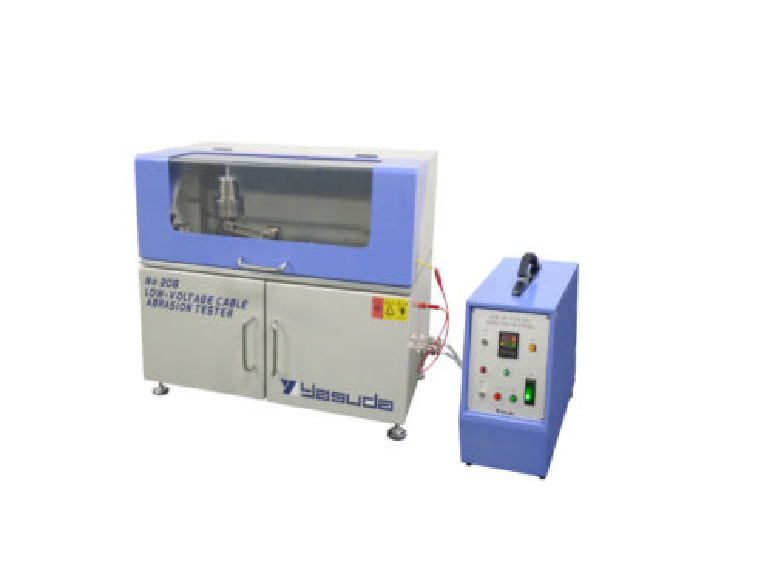

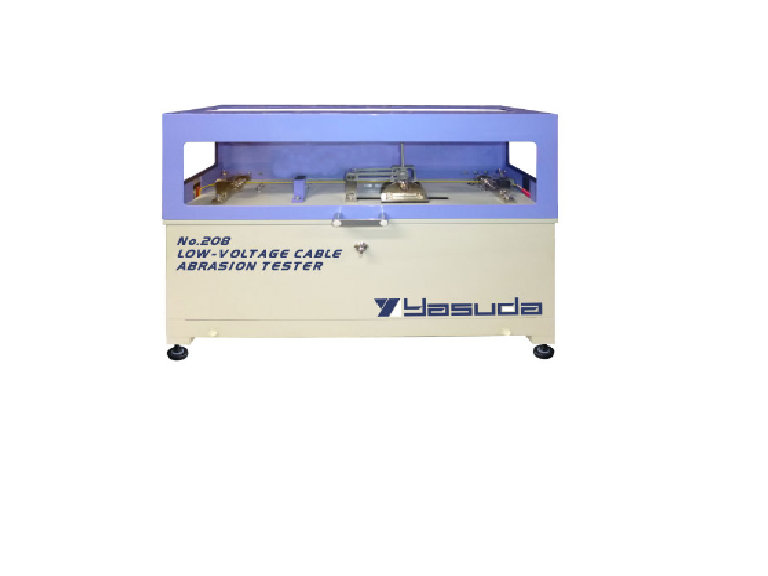

Thiết bị máy đo độ mài mòn dây cáp điện thế thấp cho ô tô model No.208, model No.208-ISO6722

Model

No.208（JIS）

No.208-JASO

Specimen

L900 mm

L1 m

Weight

Top R114 mm,

Initial 450 g, 1,350 g, 1,900 g

Top R114 mm, Initial 0.63 ± 0.05 N

Additional Weight 50 to 1,500 g

Electrode

φ7 mm

φ6.9 mm

Abrasive Tape

Material A, Grit #180,

Conductive Pitch 150 mm,

Conduction W10 mm

Material A, Grit #180,

Conductive Pitch 150 mm,

Conduction W10 mm

Tape Speed

1,500 mm/min

1,500 ± 75 mm/min

Specimen Rotating Angle

―

0°, 90°, 180°, 270°

Counter

6 Digits Preset Counter

6 Digits Preset Counter

Accessories

Abrasive Tape: 5 pcs

Abrasive Tape: 5 pcs

Power Source

AC 100 V, 1-Phase, 5 A, 50/60 Hz

AC 100 V, 1-Phase, 5 A, 50/60 Hz

Dimension/ Weight (Approx.)

Tester Body: W620 × D400 × H510 mm, 50 kg

Control Box: W200 × D420 × H315 mm, 10 kg

W620 × D300 × H500 mm, 70 kg(LT)

Tester Body: W620 × D400 × H510 mm, 50 kg

Control Box: W200 × D420 × H315 mm, 10 kg

W620 × D300 × H500 mm, 70 kg(LT)

Model

No.208-JASO

Specimen

L1 m

Weight

Top R114 mm, Initial 0.63 ± 0.05 N

Additional Weight 50 to 1,500 g

Electrode

φ6.9 mm

Abrasive Tape

Material A, Grit #180,

Conductive Pitch 150 mm,

Conduction W10 mm

Tape Speed

1,500 ± 75 mm/min

Specimen Rotating Angle

0°, 90°, 180°, 270°

Counter

6 Digits Preset Counter

Accessories

Abrasive Tape: 5 pcs

Power Source

AC 100 V, 1-Phase, 5 A, 50/60 Hz

Dimension/ Weight (Approx.)

Tester Body: W620 × D400 × H510 mm, 50 kg

Control Box: W200 × D420 × H315 mm, 10 kg

W620 × D300 × H500 mm, 70 kg(LT)
