Thiết bị máy đo độ giòn ở nhiệt độ thấp model No.121, model No.121-RA, model No.121 AUTO, No.121-R

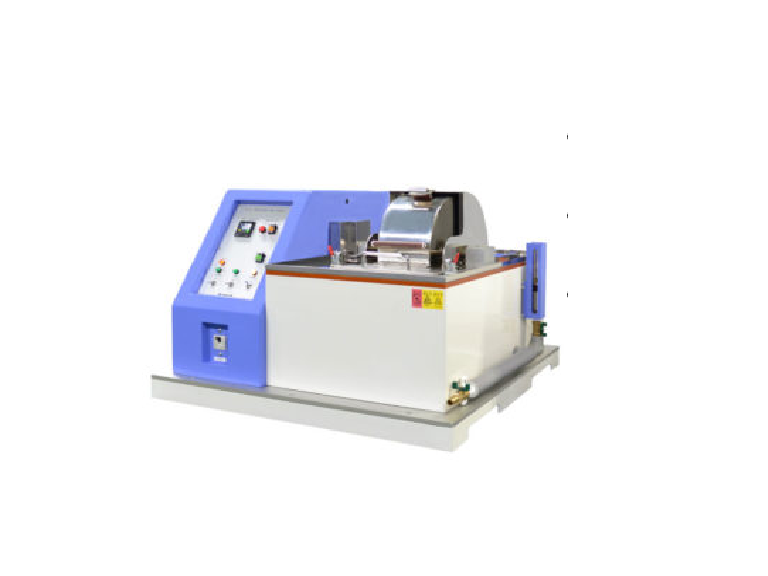

No.121 BRITTLENESS TEMPERATURE TESTER

Hangings

5 Hangings (1 Holder)

Specimen

W6.0 ± 0.4mm, L38 ± 2 mm , T2.0 ± 0.2 mm (Type A)

Striking Edge

Top R1.6 ± 0.1 mm, Distance to Chuck 6.4 ± 0.2 mm, Distance to Striking Point 8.0 ± 0.2 mm

Striking Speed

2.0 ± 0.2 m/s

Temperature Range

Room Temperature to -70 °C (Dry Ice & Refrigeration Medium)

Temperature Range

Room Temperature to -70 °C (Dry Ice & Refrigeration Medium)

Refrigeration Medium Amount

Approx. 15 L

Accessories

Tightening Rod, Torque Driver, Specimen Cutter

Option

Rotary Holder (5 Hangings × 4 Holders), Specimen Holder (Type B)

Power Sourc

AC 100 V, 1-Phase, 15 A, 50/60 Hz

Air Source

0.5 MPa or More

Dimensions/ Weight (Approx.)

W770 × D830 × H550 mm/ 155 kg

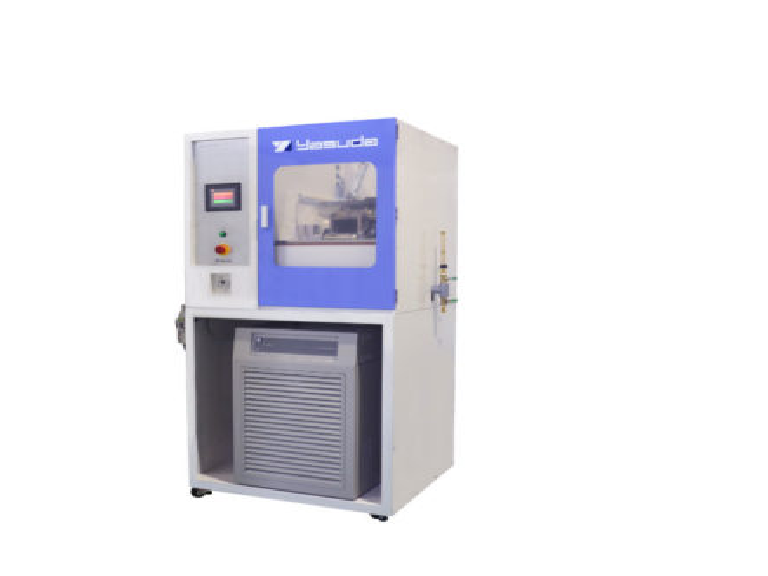

No.121-RA BRITTLENESS TEMPERATURE TESTER (WITH REFRIGERATING MACHINE/ ROTARY HOLDER TYPE)

Hangings

5 Hangings × 4 Holders (Total 20 Hangings), Automatic Operation System

Specimen

W6.0 ± 0.4mm, L38 ± 2 mm , T2.0 ± 0.2 mm (Type A)

Striking Edge

Top R1.6 ± 0.1 mm, Distance to Chuck 6.4 ± 0.2 mm, Distance to Striking Point 8.0 ± 0.2 mm

Striking Speed

2.0 ± 0.2 m/s

Temperature Range

Room Temperature to -70 °C (Refrigerator & Refrigeration Medium)

Refrigeration Medium Amount

Approx. 15 L

Accessories

Tightening Rod, Torque Driver, Specimen Cutter

Option

Specimen Holder (Type B)

Power Source

AC 200 V, 3-Phase, 30 A, 50/60 Hz

Air Source

0.5 MPa or More

Dimensions/ Weight (Approx.)

W970 × D950 × H1,900 mm, 450 kg

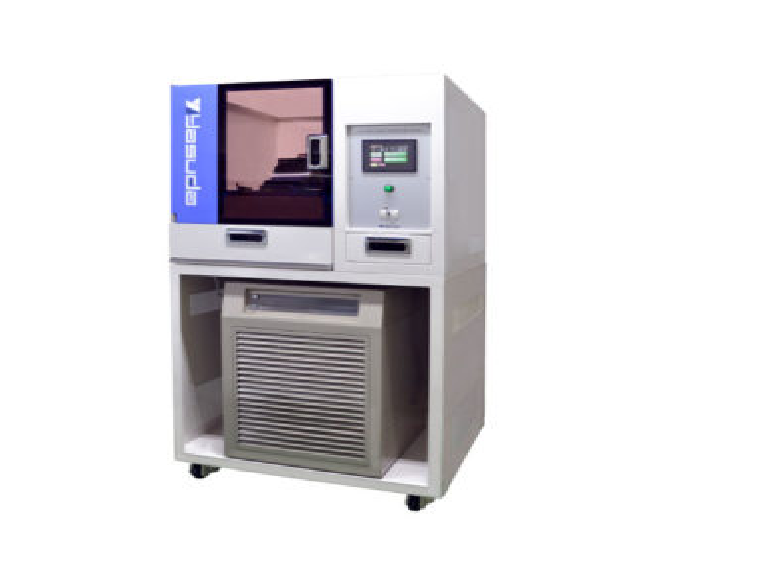

No.121-R BRITTLENESS TEMPERATURE TESTER (WITH REFRIGERATING MACHINE)

Hangings

5 Hangings (1 Holder), Automatic Operation System

Specimen

W6.0 ± 0.4mm, L38± 0.2 mm , T2.0 ± 0.2 mm (Type A)

Striking Edge

Top R1.6 ± 0.1 mm, Distance to Chuck 6.4 ± 0.2 mm, Distance to Striking Point 8.0 ± 0.2 mm

Striking Speed

2.0 ± 0.2 m/s

Temperature Range

Room Temperature to -70 °C (Refrigerator & Refrigeration Medium) (Option: Combined with Liquid Nitrogen -100 °C)

Refrigeration Medium Amount

Approx. 15 L

Accessories

Tightening Rod, Torque Driver, Specimen Cutter

Option

Rotary Holder (5 Hangings × 4 Holders), Specimen Holder (Type B)

Power Source

AC 200 V, 3-Phase, 30 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W970 × D950 × H1,900 mm/ 450 kg

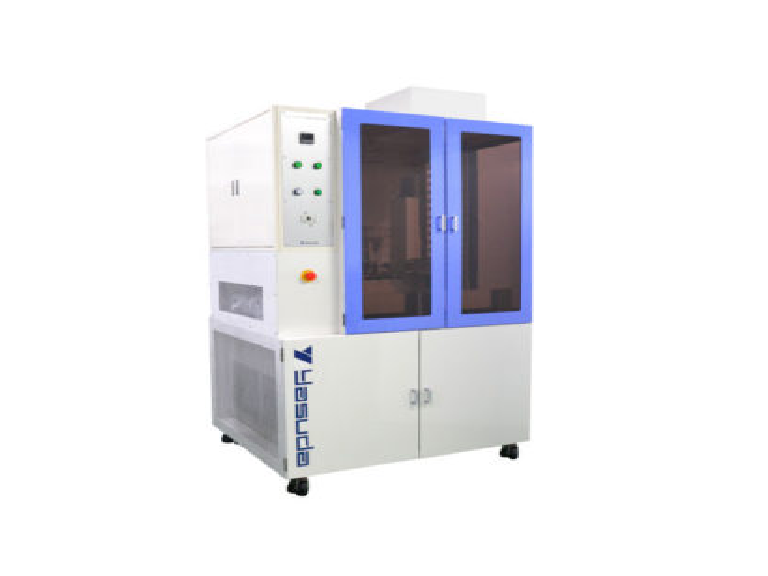

No.121-AUTO BRITTLENESS TEMPERATURE TESTER (FULL AUTOMATIC)

Hangings

5 Hangings × 40 Holders (Total 200 Hangings)

Specimen

W6.0 ± 0.4 mm, L38 ± 2 mm, T2.0 ± 0.2 mm (Type A)

Striking Edge

Top 1.6 ± 0.1 mm, Distance to Chuck 6.4 ± 0.2 mm, Distance to Striking Point 8.0 ± 0.2 mm

Striking Speed

2.0 ± 0.2 m/s

Temperature Range

Room Temperature to -70 °C (Refrigerator & Refrigeration Medium)

Refrigeration Medium Amount

Approx. 15 L

Software

Windows Compatible

Accessories

Tightening Rod, Torque Driver, Specimen Cutter

Option

Specimen Holder (Type B)

Power Source

AC 200 V, 3-Phase, 30 A, 50/60 Hz

Air Source

0.5 MPa or More

Dimensions/ Weight (Approx.)

W1,160 × D1,030 × H2,150 mm/ 612 kg
