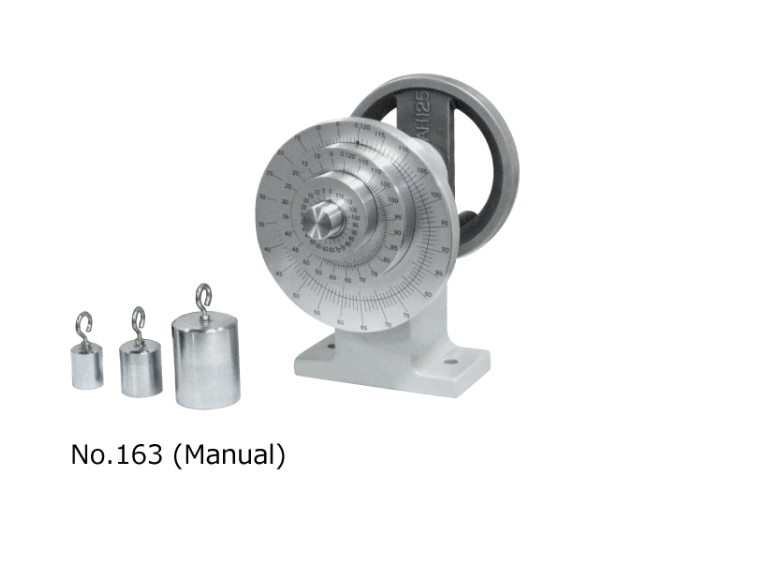

Thiết bị máy đo độ cứng dây tráng men model No.163

Specimen

1 m, Conductor Diameter φ0.25 to φ1.6 mm

Mandrel Rotation Speed

5 to 10 rpm (Manual or Motorized)

Mandrel Diameter

φ19 mm、 φ48 mm、 φ82 mm

Weight

57 g, 115 g, 455 g

Scale

0 to 120

Counter

4 Digits Preset Counter (Only for Motorized)

Accessories

Foot Switch (Only for Motorized)

Power Source

AC 100 V, 1-Phase, 3 A, 50/60 Hz (Motorized Model)

Dimensions/ Weight (Approx.)

W128 × D190 × H184 mm, 10 kg (Manuel Model)

W480 × D285 × H250 mm, 6.1 kg (Motorized Model)
