Thiết bị máy đo độ biến dạng và nứt gãy De Mattia Type, Flexing Tester nhựa, cao su model No.119, model 119-L, model No.119-L-VR hãng Yasuda

Model

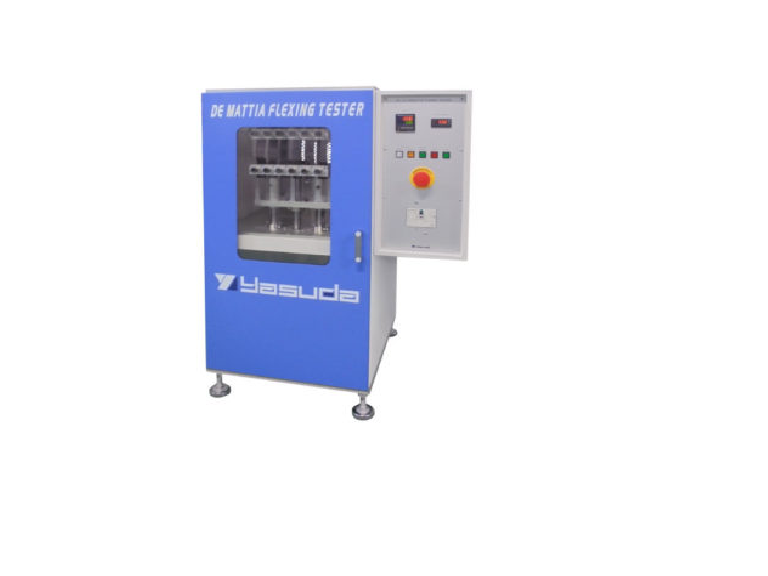

No.119 DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER

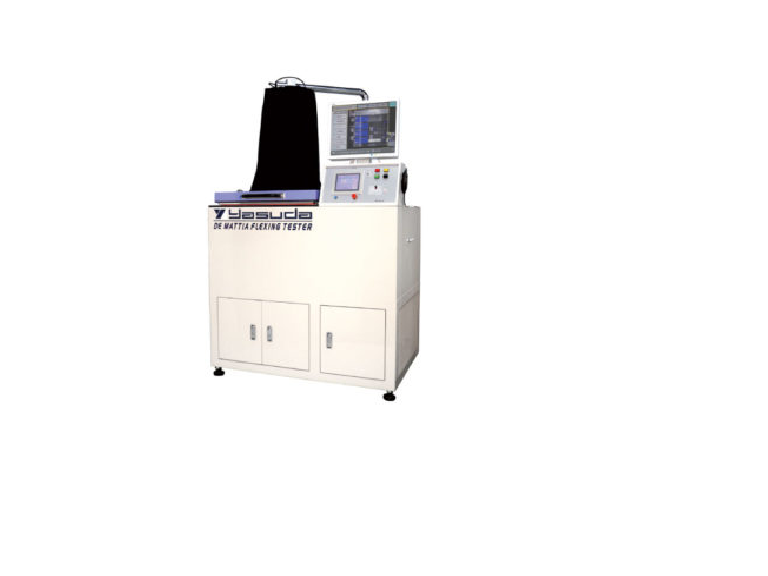

No.119-L-VR DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER (WITH REFRIGERATING MACHINE/ PICTURE BREAK DETECTION FUNCTION)

Hangings

6 Hangings

6 Hangings, 20 Hangings

12 Hangings

Specimen

W25 ± 1 mm, L140 to 155 mm, T6.30 ± 0.30 mm, Groove of R2.38 ± 0.03 mm

Chuck Distance

Max. 75 + 1 mm

Flexing Distance

Max. 60 mm (Standard 57 + 0.5 mm)

Flexing Speed

300 ± 10 times/min

Counter

6 Digits Preset Counter, 6 Digits Running Counter

6 Digits Preset Counter, 6 Digits Running Counter

8 Digits Preset Counter, 8 Digits Running Counter

Timer

x

x

Max. 999 hr

Temperature Range

x

-35 to 150 °C (Refrigerator)

-35 to 60 °C (Refrigerator)

Break Detection

x

x

High Speed Digital Picture Camera

Accessories

Specimen Setting Gauge, Notching Blade

Option

Notching Device

Power Source

AC 200 V, 3-Phase, 15 A, 50/60 Hz

AC 200 V, 3-Phase, 40 A, 50/60 Hz

AC 200 V, 3-Phase, 40 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W680 × D580 × H920 mm/ 115 kg

6 Hangings: W960 × D850 × H1,750 mm/ 500 kg

20 Hangings: W960 × D850 × H1,750 mm/ 520 kg

W1,180 × D1,200 × H1,980 mm/ 560 kg
