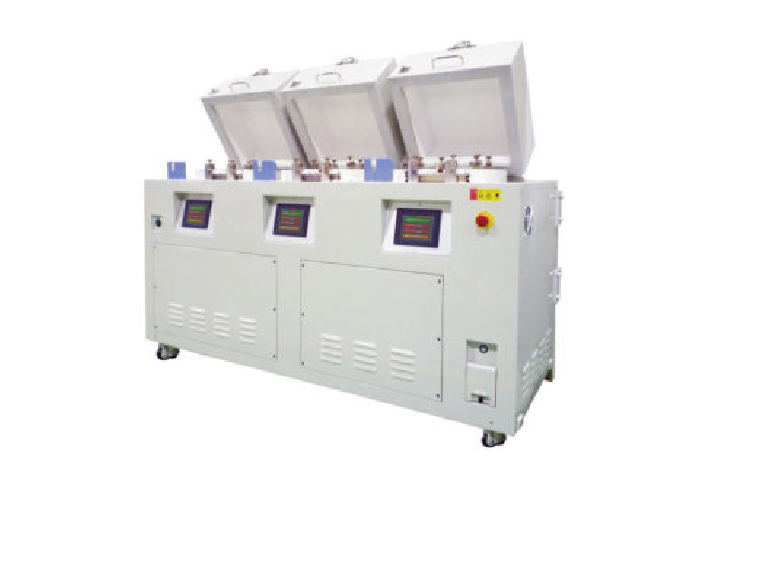

Thiết bị máy CUT-THROUGH TESTER model No.173-S

No.173-S CUT-THROUGH TESTER (FOR ENAMELED WIRE)

Specimen

Round wire(Crossing Method),Flat wire(Steel Ball Method)

Hangings

Max. 12 Hangings(4 Hangings × 3ch)

Temperature Range

Max.500℃

Heating Rate

2℃/min

Test Load

Initial Load 100g to Max. Load 2,600g

Transformer

Voltage: 100 ± 10V, Short Circuit Current: 5 ± 1 mA (Max. Ampair: 50 mA)

Data Processing

Desktop PC (OS: Windows 10) PC Rack,Printer, Software included

Safety Device

Leakage Breaker, Overheat Detection, insulated Safety Cover (Pinch Prevention)

Power Source

Main Body: AC 200 V, 3-Phase, 50 A, 50/60 Hz , For PC: AC 100 V, 1-Phase, 15 A or less, 50/60 Hz

Dimensions/ Weight (Approx.)

W1, 800 × D750 × H2,000 mm/ 550kg
