Thiết bị máy cắt rãnh cao su model No.189-PN, No.189-PNA, model No.189 PNCA, model No.180-PFA

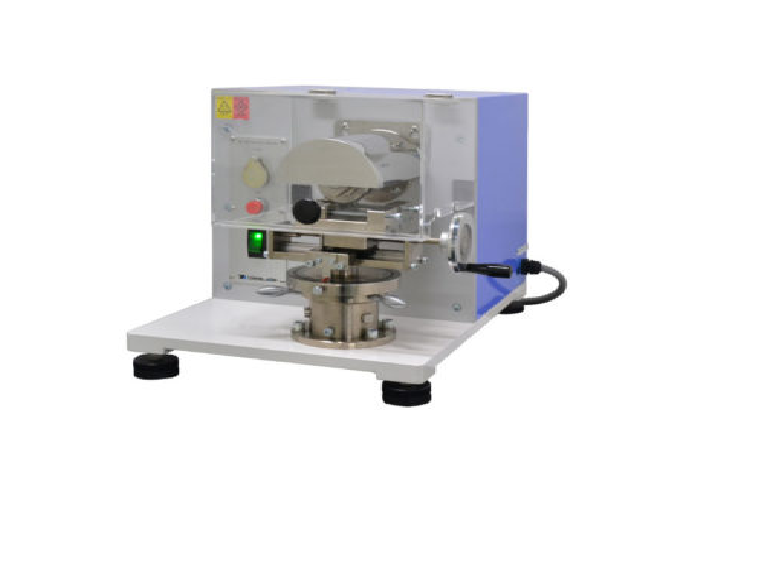

No.189-PN NOTCHING MACHINE

Clamp

Opening Max. 40 mm (Standard: 4 mm × 10 pcs), Feed Speed 1.75 mm/ 1 turn

Cutter Rotation Speed (Approx.)

600 rpm (60 Hz), 500 rpm (50 Hz)

Notch Depth

Manual, Range 0 to 4 mm (Scale 0.01 mm)

V-Notch Cutter

Single Tooth Tip, Outer Diameter φ75 mm, T6.5 mm, Top Angle 45°, Top R 0.25 mm,

Material: High Speed Steel (Option: Cemented Carbide)

Option

Pneumatic Clamp, U-Notch Cutter

Power Source

AC 100 V, 1-Phase, 15 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W420 × D525 × H415 mm, 60 kg

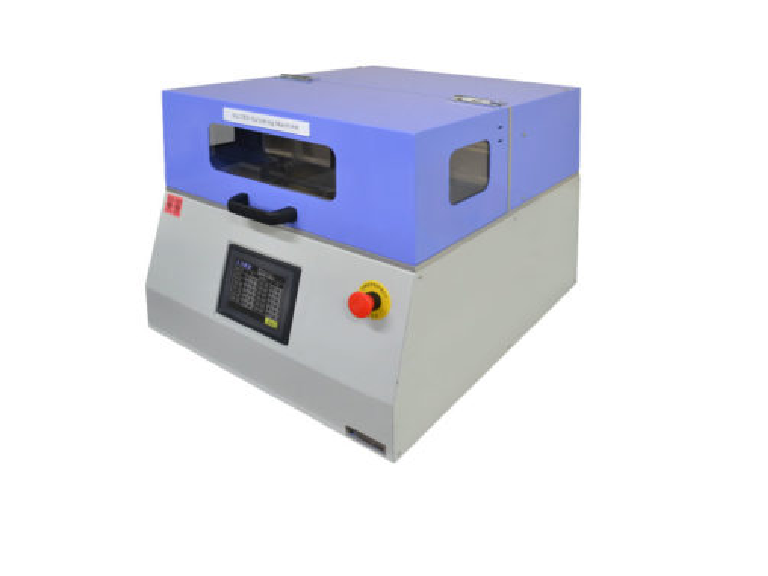

No.189-PNA/PNCA NOTCHING MACHINE (AUTOMATIC)

Model

No.189-PNA

No.189-PNCA

Clamp

Opening Max. 80 mm (4 mm × 20 pcs), Feed Speed 50 to 600 mm/min

Opening Max. 80 mm (4 mm × 20 pcs), Feed Speed 50 to 600 mm/min

Cutter Axis

1 Axis (Notch only)

1 Axis (Notch & Side Cut)

Cutter Rotation Speed (Option)

150 to 1,780 rpm

150 to 1,780 rpm

Notch Depth

Automatic, Range 0 to 4 mm (Scale 0.01 mm)

Automatic, Range 0 to 4 mm (Scale 0.01 mm)

V-Notch Cutter

Cutter   Single Tooth Tip, Outer Diameter φ75 mm, T6.5 mm, Top Angle 45°, Top R 0.25 mm

Material: High Speed Steel (Option: Cemented Carbide)

Cutter   Single Tooth Tip, Outer Diameter φ75 mm, T6.5 mm, Top Angle 45°, Top R 0.25 mm

Material: High Speed Steel (Option: Cemented Carbide)

Side Cutter

―

Width 80 mm (Standard),

Outer Diameter φ100 mm, T1.6 mm

Accessories

Suction Device (Vacuum Cleaner)

Suction Device (Vacuum Cleaner)

Option

Pneumatic Clamp, U-Notch Cutter

Pneumatic Clamp, U-Notch Cutter

Power Source

AC 100 V, 1-Phase, 15 to 20 A, 50/60 Hz

AC 100 V, 1-Phase, 15 to 20 A, 50/60 Hz

Dimensions/ Weight (Approx.)

W600 × D650 × H560 mm, 100 kg

W600 × D650 × H560 mm, 100 kg

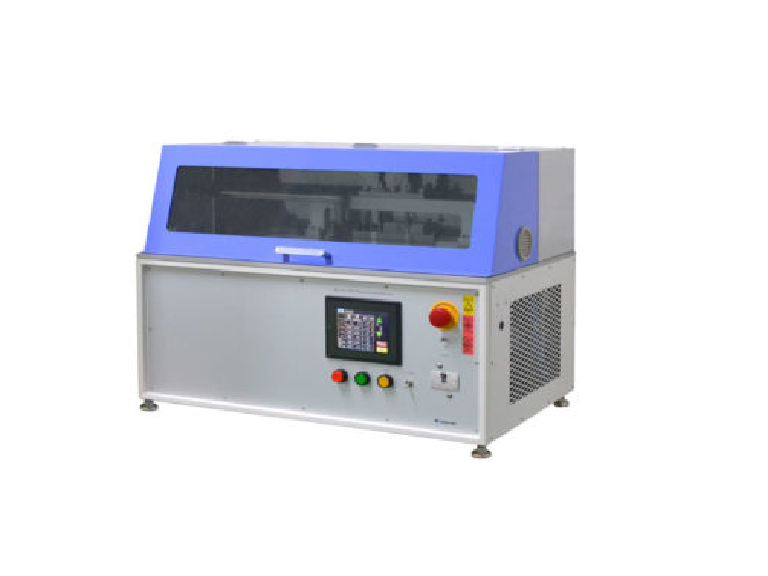

No.189-PFA SAMPLE FORMING MACHINE (AUTOMATIC)

Spiral Cutter

φ25 mm, T25 mm

1000 to 1,200 rpm

Pressure Gauge

Max 1 MPa (Scale 0.05 MPa)

Clamp Feed Speed

0,3 to 10mns

Forming Jig

To be Specified

Accessories

Suction Device (Vacuum Cleaner)

Option

Air compressor

Power Source

AC 200 V, 3-Phase, 40 A, 50/60 Hz

Air Source

0.5 to 0.65 MPa

Dimensions/ Weight (Approx.)

W810 × D620 × H630 mm, 120 kg

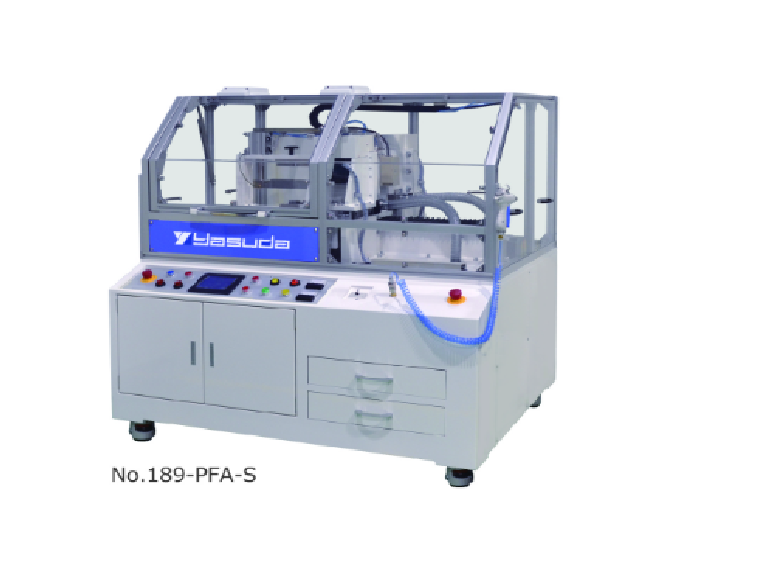

No.189-PFA-S  SAMPLE FORMING MACHINE (FULL AUTOMATIC)

Spiral Cutter

φ25 mm, T25 mm

Cutter Rotation Speed

1000 to 3000 rpm

Pressure Gauge

1 MPa (Scale 0.05 MPa)

Clamp Feed Speed

30 to 300 mm/min

Forming Jig

To be Specified

Accessories

Cutter 1 set ( 2 pcs/set ), Suction Device (Vacuum Cleaner), Air Gun (Built In)

Safety Device

Safety Cover, Overcurrent Protection

Power Source

AC 200 V, 3-Phase, 40 A, 50/60 Hz

Air Source

0.5 to 0.65 MPa

Dimensions/ Weight (Approx.)

Main Body : W1,350 × D1,150 × H1,830 mm, 735 kg

Suction Device (Vacuum Cleaner) : W640 × D780 × H1,020 mm, 59 kg
