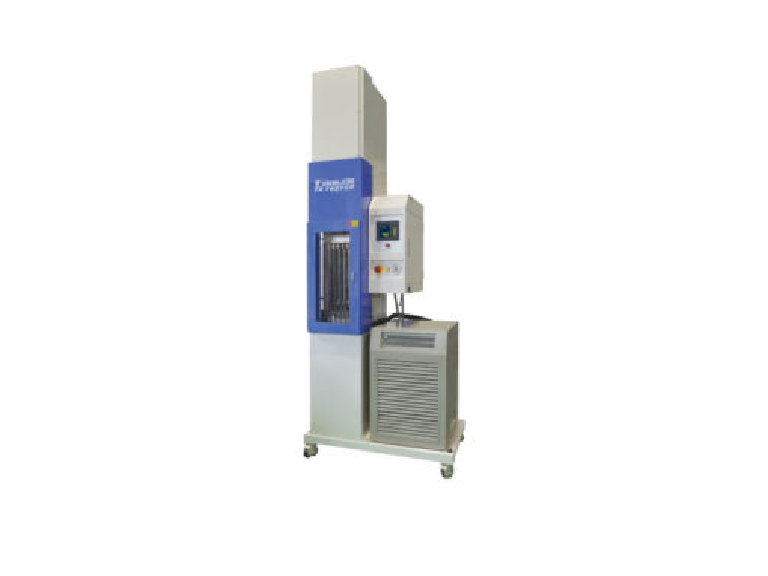

Thiết bị kiểm tra độ phục hồi cao su, nhựa ở điều kiện nhiệt độ thấp model N.145-L

No.145-L Specification

Hangings

4 or 6 Hangings (2 kinds)

Specimen

I-shape, Chuck Area: 6.5 × 6.5 mm.

Parallel Area: W2.0 ± 0.2 mm

L100.0 ± 0.2 mm or 50.0 ± 0.2 mm,

T2.0 ± 0.2 mm

Chuck Distance

50 mm or 100 mm

Displacement Measurement

Optical Scale Sensor, Accuracy of ± 0.1 mm, Scale 0.1 mm, Stroke Max. 200 mm

*The Displacement Measuring Stroke is to be decided through discussion.

Temperature Range

70 to 30 °C (Refrigerator & Refrigeration Medium) (Option: Combined with Liquid Nitrogen -100 °C)

Refrigeration Medium Amount

27 L

Heat-Up Speed

1 °C/min

Software

Windows Compatible

Accessories

Specimen Setting Gauge, Specimen Cutter (100 mm, 50 mm): 1 pc each

Option

Safety Cover

Power Source

AC 200 V, 3-Phase, 30 A, 50/60 Hz

Dimensions/ Weight (Approx.)

4 Hangings: W1,110 × D830 × H2,020 mm/ 350 kg

6 Hangings: W1,200 × D1,000 × H2,020 mm/ 373 kg

*Dimension when the Specification of the Stroke is Max.200 mm

*Height when the Rack is Raised:H2,370 mm
