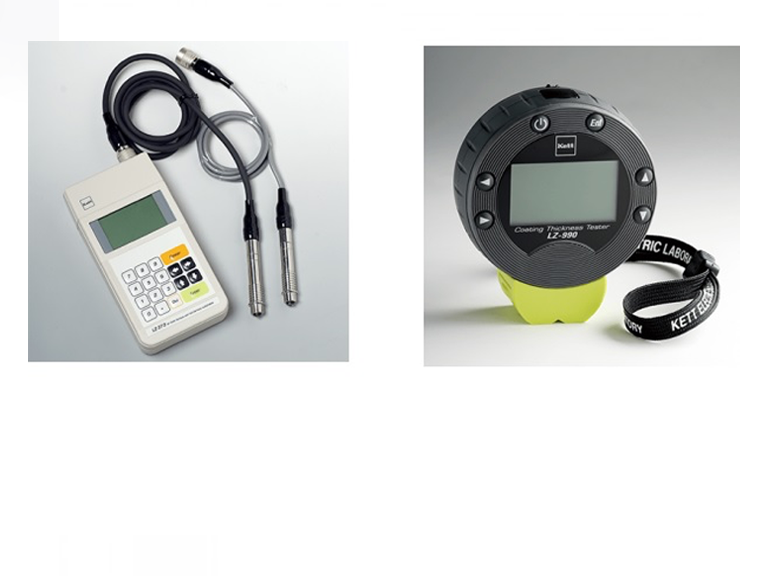

Thiết bị kiểm tra độ dày sơn tĩnh điện model LZ990 model Dual-Type Coating Thickness Tester LZ-373 hãng Kett Việt Nam

Thiết bị kiểm tra độ dày sơn tĩnh điện model LZ990 model Dual-Type Coating Thickness Tester LZ-373 hãng Kett Việt Nam

Thiết bị kiểm tra độ dày sơn tĩnh điện model LZ990

Measurement method  Uses both electromagnetic induction and eddy-current methods (with automatic selection function)

Applications       Non-magnetic coating on ferrous metal substrate and insulating coating on non-ferrous metal substrate

Measurement range      0-2000µm or 0-80mils

Measurement precision <50 µm ± 1 µm, 50 µm to <1000 µm ± 2%,≥ 1000 µm to <2000 µm ± 3%

Resolution          <100 µm, 0.1 µm; ≥ 100 mm, 1 µm

Conformity Standard      Electromagnetic induction:JIS K5600-1-7、JIS H8501、JIS H0401 / ISO 2808、ISO 2064、ISO 1460、ISO 2178、ISO 19840 / BS 3900-C5 / ASTM B 499、ASTM D 7091-5Eddy-current:JIS K5600-1-7、JIS H8680-2、JIS H8501 / ISO 2808、ISO 2360、ISO 2064、ISO 19840 / BS 3900-C5 / ASTM D 7091-5

Display format   Digital (backlit LCD, smallest displayed unit 0.1 µm)

Data memory    Approx. 1000 points

Application memory       8 Types of electromagnetic or eddy current methods,total 16 Calibration curves

Power source    2x 1.5V Batteries ("AAA" size Alkaline)

Power consumption       40 mW (when backlight OFF)

Operating environmental             0-40°C

Functions            Application memory (calibration curves), Measured data memory, Data delete, Data output, Lot classification, Auto power ON/OFF, Clock, Upper and lower limits, Statistical calculations, Backlight, Unit setting, etc, total 15 functions

External output Can be output to PC (USB) or printer (RS-232C)

Dimensions & weight     82(W) x 99.5(D) x 32(H) mm, approx. Net 160g.

Accessories        Zero plate holder (Ferrous metal substrate, Aluminum substrate), Calibration foils (50, 100, 1000 _m), Carrying pouch, 2x 1.5V Batteries ("AAA" size Alkaline), Instructions, Wriststrap

Options Calibration foils (thicknesses other than those available as standard accessories), Measuring stand LW- 990, Printer (VZ-330 or VZ-380), Printer cable, USB PC cable, Transparent protective cover, Data Logger Software (LDL-01)

Thiết bị kiểm tra độ dày sơn tĩnh điện model Dual-Type Coating Thickness Tester LZ-373 hãng Kett Việt Nam

Measurement method  Uses both Electromagnetic Induction and Eddy-current Methods

Applications       Non-magnetic coating on ferrous metal substrate and insulating coating on non-ferrous metal substrate

Measurement range      Electromagnetic: 0-2500µm or 99.0milsEddy-current: 0-1200µm or 47.0mils

Measurement precision <50 µm ± 1 µm, 50 µm to <1000 vm ± 2%, ≥ 1000 µm ± 3%

Resolution          <100 µm, 0.1 µm; ≥ 100 µm, 1 µm

Conformity Standard      Electromagnetic induction:JIS K5600-1-7、JIS H8501、JIS H0401 / ISO 2808、ISO 2064、ISO 1460、ISO 2178、ISO 19840 / BS 3900-C5 / ASTM B 499、ASTM D 7091-5Eddy-current:JIS K5600-1-7、JIS H8680-2、JIS H8501 / ISO 2808、ISO 2360、ISO 2064、ISO 19840 / BS 3900-C5 / ASTM D 7091-5

Data memory    Approx. 39,000 points

Application memory       50 types of electromagnetic calibrations curves,50 types of eddy current calibration curves.

Probe    Single-point constant-pressure type probe (LEP-J, LHP-J)

Display format   Digital (Backlit LCD, smallest displayed unit 0.1 mm)

External output PC or printer output (RS-232C)

Power source    4x 1.5V batteries ("AA" size Alkaline)

Power consumption       80 mW (when backlight OFF)

Battery life          100 hrs (constant operation, backlight OFF)

Operating environmental             0-40°C

Functions            16 types of internal functions

Dimensions & weight     75(W) x 145(D) x 31(H) mm, Net 0.34 kg

Accessories        Calibration foils, Ferrous metal substrate, Aluminium substrate, Carrying case, 4 x 1.5V batteries ("AA" size Alkaline)

Options Calibration foils (thicknesses other than those available as standard accessories), Measuring stand LW- 990
