Thiết bị kiểm tra độ bền vật liệu nhựa, cao su và dệt model No.214, model No.214-ISO, No.252-UL-94, No.252-UL-1581 hãng Yasuda

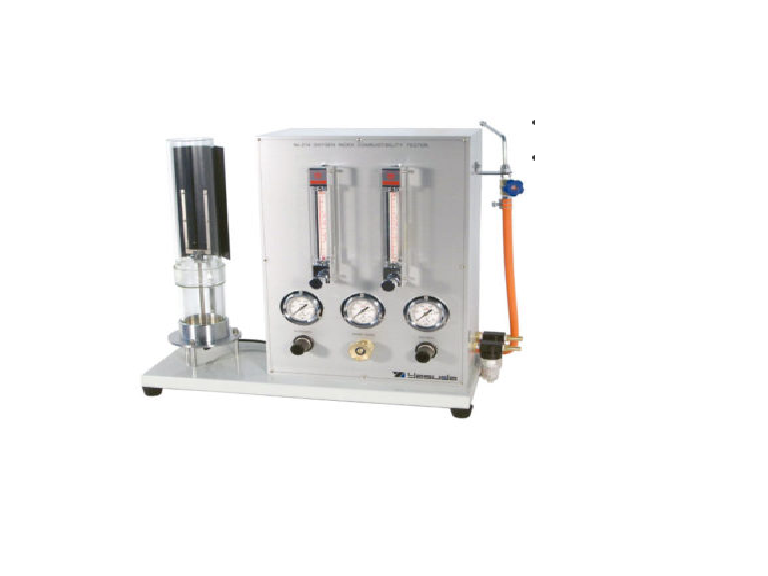

Model

No.214

No.214-ISO

Glass Column

Inner φ75 + 3 mm, H450 ± 5 mm

Inner φ95 mm, H450 mm,

Upper Seal φ40mm

Upper Seal

Oxygen:

Max. 8.6 L/min (Scale 0.1 L/min)

Flow Meter:

Max. 11 L/min (Scale 0.1 L/min)

Oxygen:

Max. 20 L/min (Scale 0.1 L/min)

Flow Meter:

Max. 20 L/min (Scale 0.1 L/min)

Pressure Gauge

Oxygen: Max. 0.1 MPa (Scale 0.002 MPa)

Nitrogen: Max. 0.1 MPa (Scale 0.002 MPa)

Mixed Gas: Max. 0.1 MPa (Scale 0.002 MPa)

Oxygen: Max. 0.1 MPa (Scale 0.002 MPa)

Nitrogen: Max. 0.1 MPa (Scale 0.002 MPa)

Mixed Gas: Max. 0.1 MPa (Scale 0.002 MPa)

Burner

Flame L6 to 25 mm (Adjustable)

Flame L6 to 25 mm (Adjustable)

Specimen

Plastic, Rubber and Textile

Plastic, Rubber and Textile

Accessories

U-shape Specimen Holder, Glass Bead

U-shape Specimen Holder

Option

Thermometer, Jig for Hoist Specimen, HighTemperature Testing Spec (HT),Oxygen Density Analyzer

Thermometer, Jig for Hoist Specimen, HighTemperature Testing Spec (HT),Oxygen Density Analyzer

Power Source

―

AC 100 V, 1-Phase, 5 A, 50/60 Hz

Heat Source

Mehane Gas (Purity: 98 % Over ) or Urban Gas

Mehane Gas (Purity: 98 % Over ) or Urban Gas

“Gas Supply”

Oxygen and Nitrogen

Oxygen and Nitrogen

Dimensions/ Weight (Approx.)

W600 × D300 × H580 mm, 35 kg

W600 × D270 × H580 mm, 25 kg

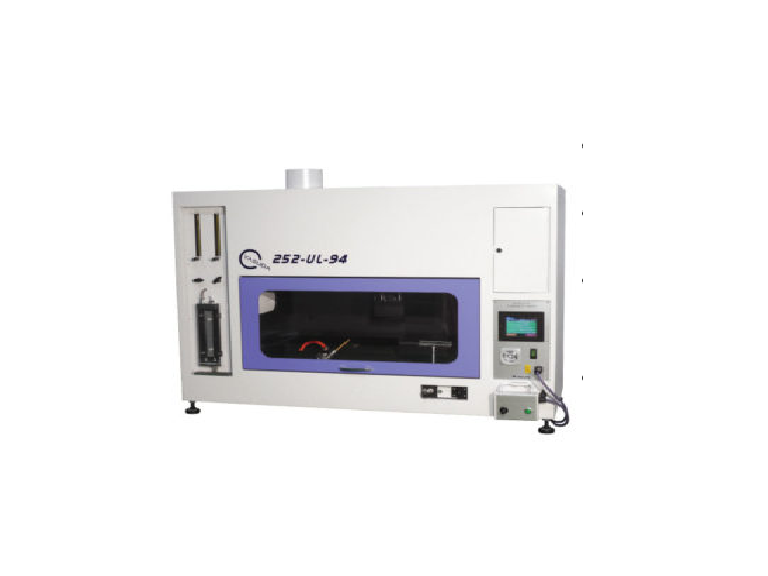

Model

No.252-UL-94 (MANUAL)

No.252-UL-94 (ELECTRIC SYSTEM)

Chamber

1,000 × 560 × 900 mm(Volume Approx. 0.5 m3)

1,000 × 560 × 900 mm(Volume Approx. 0.5 m3)

Specimen

L125 ± 5 mm, W13.0 ± 0.5 mm, T13 mm or less

L125 ± 5 mm, W13.0 ± 0.5 mm, T13 mm or less

Burner

L100 ± 10 mm, Inner Diameter φ9.5 ± 0.3 mm

L100 ± 10 mm, Inner Diameter φ9.5 ± 0.3 mm

Burner Base

Slide type (With Operation Handle), Inclination Angle 45 ± 2°, 20 ± 5° (5 V)

Slide type (With Jog Dial type Controller), Inclination Angle 45 ± 2°, 20 ± 5° (5 V)

Burner Calibration Device

Flow Meter: Max.150 ml/min (Scale 2 ml/min) (Standard 105 ml/min)

Flow Meter: Max. 1,000 ml/min (Scale 10 ml/min) (Standard 965 ml/min)

Manometer: Max. 200 (± 100) mmH2O (Scale 1 mmH2O) (Standard 10 mmH2O)

Timer, Built-In Thermometer

Flow Meter: Max.150 ml/min (Scale 2 ml/min) (Standard 105 ml/min)

Flow Meter: Max. 1,000 ml/min (Scale 10 ml/min) (Standard 965 ml/min)

Manometer: Max. 200 (± 100) mmH2O (Scale 1 mmH2O) (Standard 10 mmH2O)

Timer, Built-In Thermometer

Accessories

Flame Gauge (20 mm) (Option: 125 mm & 38 mm), Ring Stand,

Wire Mesh, Dry Cotton Pad, Fireproof Gloves, Gas Lighter

Flame Gauge (20 mm) (Option: 125 mm & 38 mm), Ring Stand,Wire Mesh, Dry Cotton Pad, Fireproof Gloves, Gas Lighter

Option

Horizontal Burning Support Fixture (HB),Plaque Support Fixture (5 V), Spring Clamp (VTM), Foam Support Fixture

Horizontal Burning Support Fixture (HB),Plaque Support Fixture (5 V), Spring Clamp (VTM), Foam Support Fixture

Power Source

AC 100 V, 1-Phase, 15 A, 50/60 Hz

AC 100 V, 1-Phase, 10 A, 50/60 Hz

Heat Source

Methane Gas (Purity: 98 % Over)

Methane Gas (Purity: 98 % Over)

Dimensions/ Weight (Approx.)

W1,400 × D700 × H1,220 mm 100 kg

W1,400 × D700 × H1,220 mm 218 kg

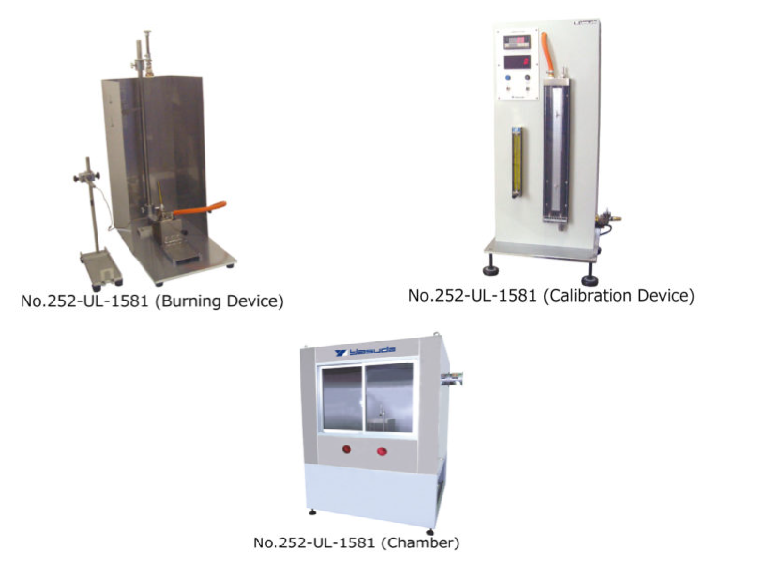

Chamber

1.6 × 1.6 × 1.6 m (Volume Approx. 4 m3)

Specimen

L450 ± 10 mm

Burner

L100 ± 10 mm, Inner Diameter φ9.5 ± 0.3 mm

Burner Base

Inclination Angle 20°

Burner Calibration Device

Flow Meter: Max. 1,000 ml/min (Scale 10 ml/min) (Standard 965 ml/min) Manometer: Max. 500 (± 250) mmH2O (Scale 1 mmH2O) (Standard 125 ± 15 mmH2O)

Timer, Thermometer, Slug

Accessories

Gas Lighter, Flame Gauge, Ring Stand, Gauge for Slug, Dry Cotton Pad

Power Source

Tester Body: AC 100 V, 1-Phase, 3 A, 50/60 Hz

Calibration Device: AC 100 V, 1-Phase, 3 A, 50/60 Hz

Heat Source

Methane Gas (Purity: 98 % Over)

Dimensions/ Weight (Approx.)

W2,000 × D1,600 × H2,350 mm, 442 kg (Chamber)

W540 × D420 × H1,100 mm, 28 kg (Calibration Device)

Specimen

50 × 150 mm

Burner

Propane Gas Burner, Flame Height 16 mm

Timer

Max. 999.9 sec (Preset type)

Flame Angle

45°

Flaming Time

1 sec

Flame Height Adjustment

Needle Valve type, U-Shaped Manometer

Specimen Holder Angle

30°、45°、60°

Power Source

AC 100 V, 1-Phase, 5 A, 50/60 Hz

Heating Source

Liquid Nitrogen Gas Type 2 No.4

Dimensions/ Weight (Approx.)

W400 × D320 × H530 mm, 30 kg

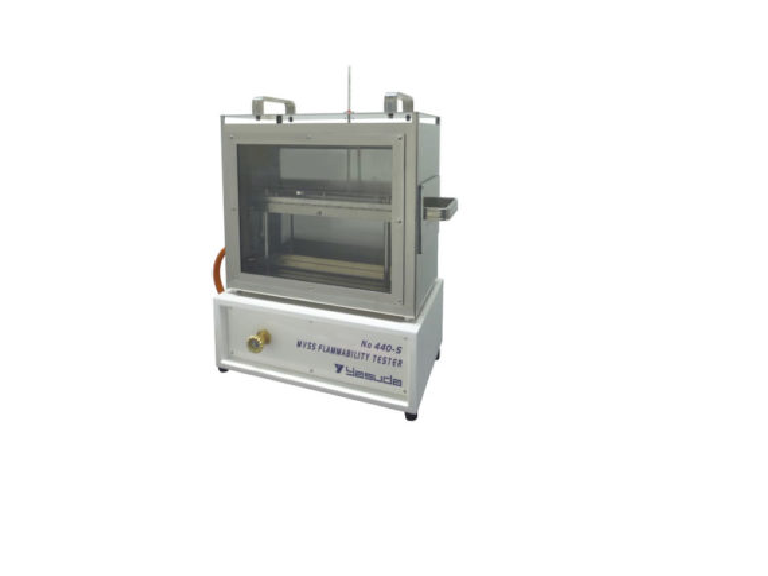

No.440-S MVSS FLAMMABILITY TESTER

Model

No.440-S1 (FMVSS, ASTM)

No.440-S1（FMVSS、ASTM）

Standard

FMVSS

ASTM

Specimen(Standard)

W 102 mm,

L 356 mm,

T 13 mm or Less

W 100 mm,

L 300 mm,

T 13 mm or Less

Bunsen Burner

Inner φ10 mm

Inner φ9.5±0.3 mm

Heat Source

Natural Gas

Methane Gas or Natural Gas

(Calorific Value37 ± 1 MJ/m3)

Specimen Holder

U-shape with Groove (Pitch 25 mm),Marked Line

-shape with Groove (Pitch 25 mm),Marked Line

Heat-Resisting Wire

φ0.25 mm

φ0.25 mm

Accessories

Specimen Attachment Set, Gas Lighter, Termometer, LPG Gas Hose,

Hose Band, Flame Gauge, Heat-Resisting Wire,

Specimen Holder (Only No.440-S1), Bobbin (Only No.440-S1), Saucer (Only No.440-S2)

Specimen Attachment Set, Gas Lighter, Termometer, LPG Gas Hose,

Hose Band, Flame Gauge, Heat-Resisting Wire,

Specimen Holder (Only No.440-S1), Bobbin (Only No.440-S1), Saucer (Only No.440-S2)

Option

Timer (Flaming Time Control), Spirit Level, Heat-Resisting Wire(Spare)

Timer (Flaming Time Control), Spirit Level, Heat-Resisting Wire(Spare)

Power Source

AC 100 V, 1-Phase, 5 A, 50/60 Hz (with Timer)

Dimensions/ Weight (Approx.)

W480 × D250 × H580 mm/ 25 kg

W480 × D250 × H580 mm/ 25 kg

No.440-S MVSS FLAMMABILITY TESTER

Model

No.440-S2（JIS、ISO、JASO）

No.440-S2（JIS、ISO、JASO）

Standard

JIS、ISO

JASO

Specimen(Standard)

When W3 to 60mm

L 356 mm,

T 13 mm or Less

When W60 to 100mm

L 138 mm,

T 13 mm or Less

W 100 mm,

T 356 mm

Bunsen Burner

Inner φ9.5±0.5 mm

Inner φ10 mm

Heat Source

Natural Gas

(Calorific Value38 MJ/m3)

Natural Gas

(Calorific Value38 MJ/m3))

Specimen Holder

U-shape with Groove (Pitch 25 mm),Pin Tray

U-shape with Groove (Pitch 25 mm),Pin Tray

Heat-Resisting Wire

φ0.25 mm

φ0.25 mm

Accessories

Specimen Attachment Set, Gas Lighter, Termometer, LPG Gas Hose,

Hose Band, Flame Gauge, Heat-Resisting Wire,

Specimen Holder (Only No.440-S1), Bobbin (Only No.440-S1), Saucer (Only No.440-S2)

Specimen Attachment Set, Gas Lighter, Termometer, LPG Gas Hose,

Hose Band, Flame Gauge, Heat-Resisting Wire,

Specimen Holder (Only No.440-S1), Bobbin (Only No.440-S1), Saucer (Only No.440-S2)

Option

Timer (Flaming Time Control), Spirit Level, Heat-Resisting Wire(Spare)

Timer (Flaming Time Control), Spirit Level, Heat-Resisting Wire(Spare)

Power Source

AC 100 V, 1-Phase, 5 A, 50/60 Hz (with Timer)

AC 100 V, 1-Phase, 5 A, 50/60 Hz (with Timer)

Dimensions/ Weight (Approx.)

W520 × D260 × H580 mm/ 25 kg

W520 × D260 × H580 mm/ 25 kg

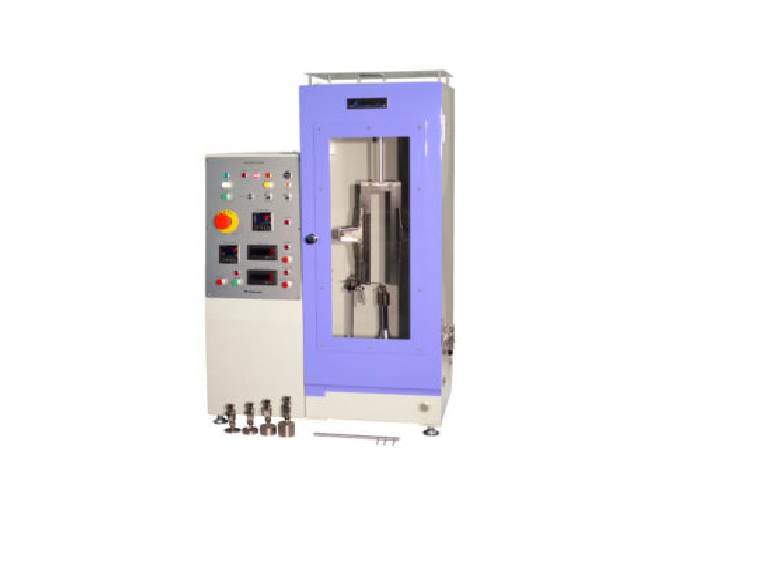

No.440-B VERTICAL FLAMMABILITY TESTER FOR TEXTILE

Test Method

A-4 Method (Vertical Method)

Alternative Method (Vertical Burner Method)

Burning Box

Inner Diameter:

W329 × D329 × H762 mm

Inner Diameter:

W304.8 × D304.8 × H762 mm

Specimen

89 × 254 mm

70 × 300 mm

Burner Angle

Busen Burner, Inner Diameter φ11 mm,

Flame Height 38 mm, Attaching

25° to Vertical Direction

Busen Burner, Inner Diameter φ9.5 mm,

Flame Height 38 mm, Attaching

Vertical

Burner Movement

Automatic Sliding

Automatic Sliding

Timer

Ignition Timer: Max. 999.9 sec (Preset method)

Flaming Timer: Max. 99,999.9 sec (Preset method)

After-flame Timer: Max. 99,999.9 sec (Running method)

After-glow Timer: Max. 99,999.9 sec (Running method)

Ignition Timer: Max. 999.9 sec (Preset method)

Flaming Timer: Max. 99,999.9 sec (Preset method)

After-flame Timer: Max. 99,999.9 sec (Running method)

After-glow Timer: Max. 99,999.9 sec (Running method)

Igniter

Automatic Ignition (Plug Method)

Automatic Ignition (Plug Method)

Load

0.54 N, 1.12 N, 2.23 N, 3.34 N (1 pc Each)

1.11 N, 2.23 N, 3.33 N, 4.45 N (1 pc Each)

Accessories

Specimen Holder, Flame Height Measuring Stand, Scale

Specimen Holder, Flame Height Measuring Stand, Scale

Power Source

AC 100 V, 1-Phase, 5 A, 50/60 Hz

AC 100 V, 1-Phase, 5 A, 50/60 Hz

Heat Source

Methane Gas (Purity: 97 % Over)

Liquid Petroleum Gas or City Gas

Dimensions/ Weight (Approx.)

W580 × D450 × H950 mm, 50 kg

W580 × D450 × H950 mm, 50 kg

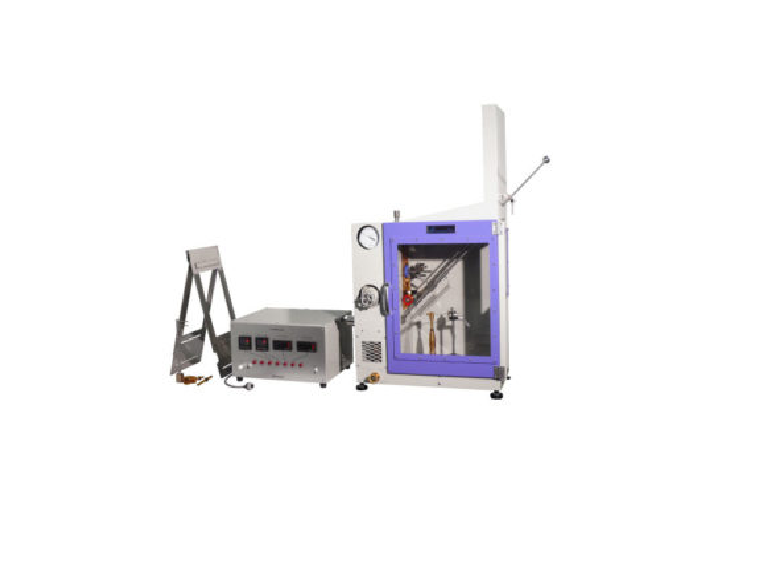

No.455 45° FLAMMABILITY TESTER FOR TXTILE

Test Method

Standard Spec

B Method Spec

(Surface Flaming Test)

Specimen

A-1 and A-2 Method: 350 × 250 mm

D Method: W100 mm, Mass 1 g

Attaching Angle: 45°

220 × 400 mm

Burner

A-1 and D Method:

Micro Burner, Flame Height 45 mm

A-2 Method:

Meckel Burner, Flame Height 65 mm

Air Mix Burner: Flame Height 24 mm

*Pressure of 3.92 kPa/hr

Timer

―

Heating Timer: Max. 999.9 sec

Flaming: Max. 999.9 sec

After-flame Timer: Max. 99999.9 sec

After-glow Timer: Max. 99999.9 sec

Igniter

Automatic Ignition (Plug Method)

Automatic Ignition (Plug Method)

Accessories

Specimen Holder (A-1 and A-2 Method),

Specimen Holding Coil (D Method),

Flame Height Measuring Stand,

Remote Control Button

Pearlite Plate, Specimen Holder

Power Source

AC 100 V, 1-Phase, 3 A, 50/60 Hz

AC 100 V, 1-Phase, 3 A, 50/60 Hz

Heat Source

Liquid Nitrogen Gas Type 2 No.4

Liquid Nitrogen Gas Type 2 No.4

Dimensions/ Weight (Approx.)

Tester Body:

W420 × D330 × H940 mm, 22 kg

Control Box:

W370 × D300 × H220 mm, 9 kg

Tester Body:

W560 × D330 × H940 mm, 25 kg

Control Box:

W370 × D300 × H220 mm, 9 kg
