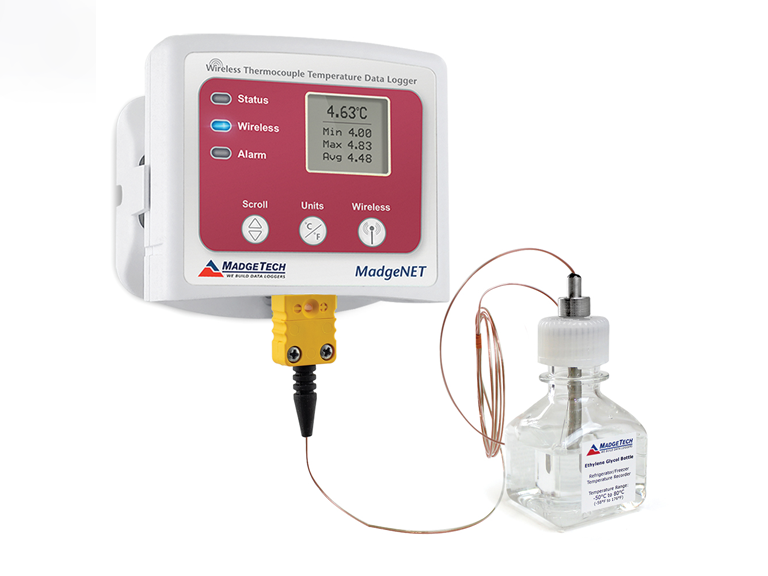

Thiết bị giám sát nhiệt độ vaccine không dây Vaccine Temperature Monitoring System model VTMS hãng MadgeTech

Memory

16,128 readings (all channels enabled)

Reading Rate

1 reading every second up to 1 reading every 24 hours

Baud Rate

250,000

Cold Junction Compensation

Automatic based on internal channel

Battery Life

3 years typical at 1 minute reading rate

Material

ABS Plastic

Dimensions

3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only

Weight

1.1250 LBS

Operating Environment

-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package

RFC1000 (wireless); USB to Mini USB Cable

Approvals

US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Countries approved for use, purchase and distribution

Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Ecuador, Estonia, Finland, France, Germany, Greece, Honduras, Hungary, Iceland, Ireland, Israel, Japan, Latvia, Liechtenstein, Lithuania, Luxembourg, Malaysia, Malta, Mexico, New Zealand, Norway, Peru, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, South Korea, Spain, Sweden, Switzerland, Thailand, The Netherlands, Turkey, United Kingdom, United States, Venezuela, Vietnam

Internal Channel Temperature Sensor

Semiconductor

Internal Channel Temperature Range

-20 °C to 60 °C (-4 °F to +140 °F)

Internal Channel Temperature Resolution

0.1 °C (0.18 °F)

Internal Channel Temperature Calibrated Accuracy

±0.5 °C

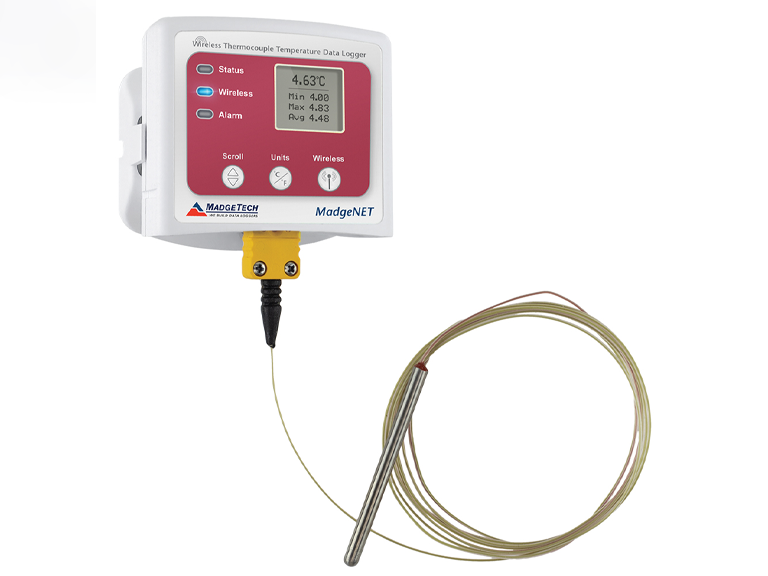

Remote Channel Temperature Sensor

Type K Thermocouple (Included)

Remote Channel (Thermocouple) Temperature Range

-100 °C to +80 °C (-148 °F to +176 °F)

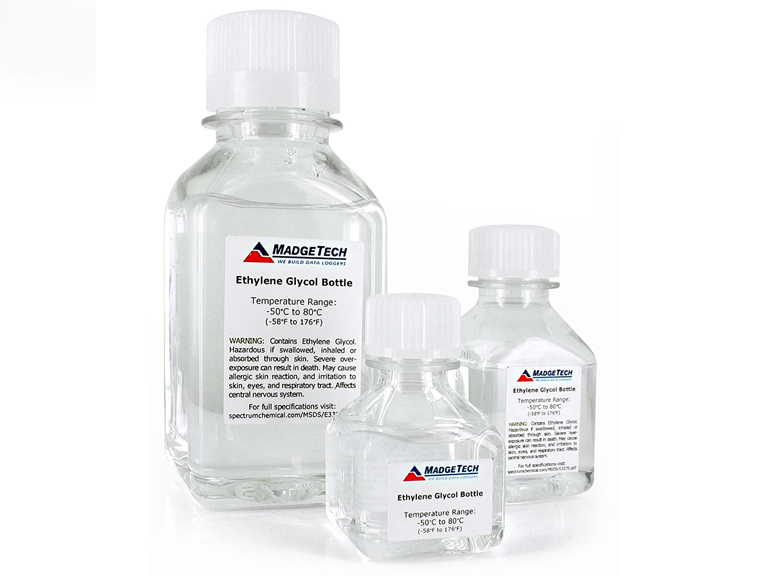

Remote Channel (Glycol Bottle) Temperature Range

-50 °C to +80 °C (-58 °F to +176 °F)

Remote Channel Temperature Resolution

0.1 °C (0.18 °F)

Remote Channel Temperature Calibrated Accuracy

±0.5 °C
