Thiết bị đo độ bám dính của sơn model No.519

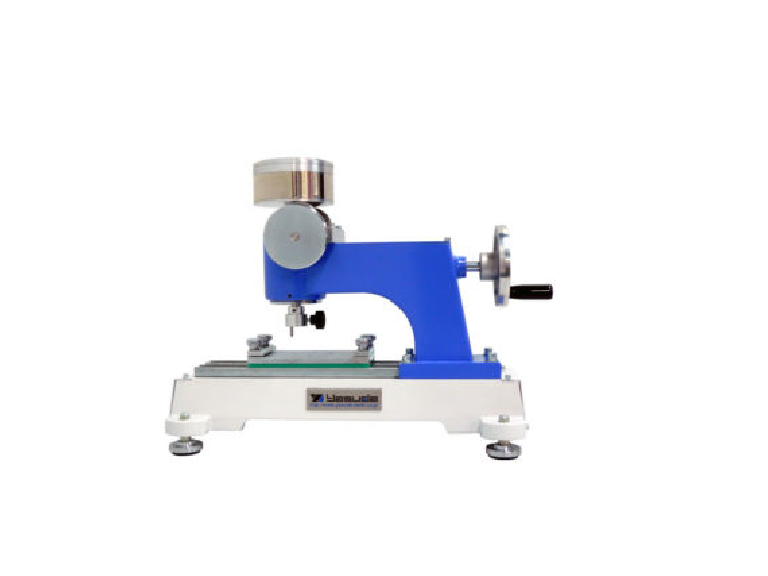

No.519 PAINT FILM DRAWING TESTER

Specimen Base

54 × 120 mm

Stroke

Max. 72 mm

Drawing

Spiral φ10 mm or φ9 mm, Spacing 2.5 mm

Weight Load

Initial 100 g to Max. 2,000 ｇ (Standard 500 gf)

Needle

φ3 ± 0.05 mm, L23 ± 1 mm, Top Angle 60 ± 5°

Option

Heating Plate Spec, Conduction Device

Power Source

AC 100 V, 1-Phase, 1 A, 50/60 Hz

Dimensions/ Weight (Approx.)

Tester Body: W365 × D140 × H300 mm, 8 kg

Conduction Device: W250 × D360 × H250 mm, 5 kg
