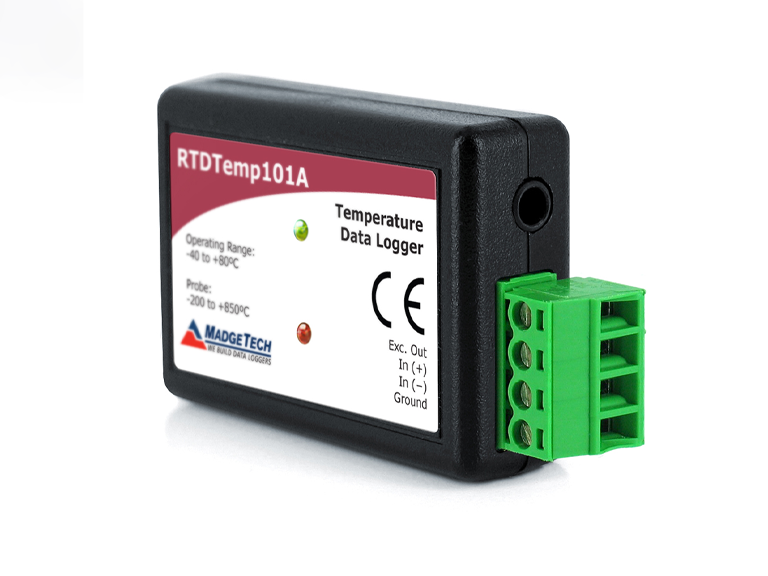

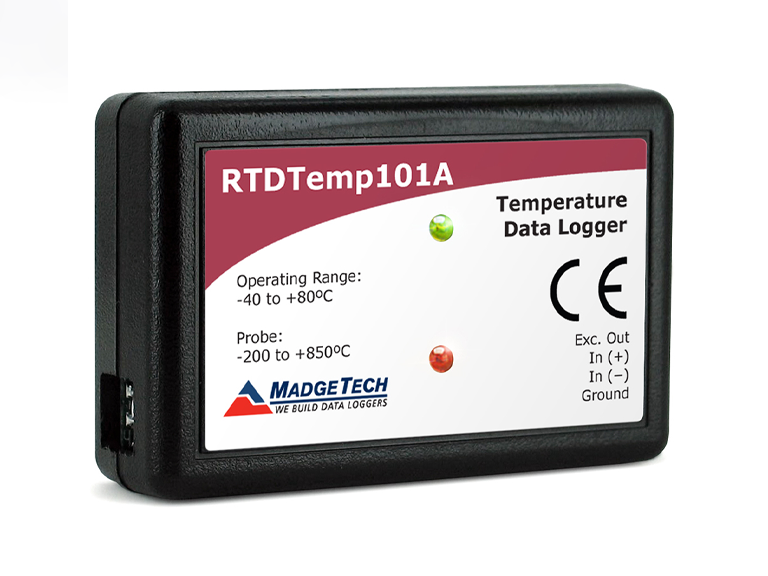

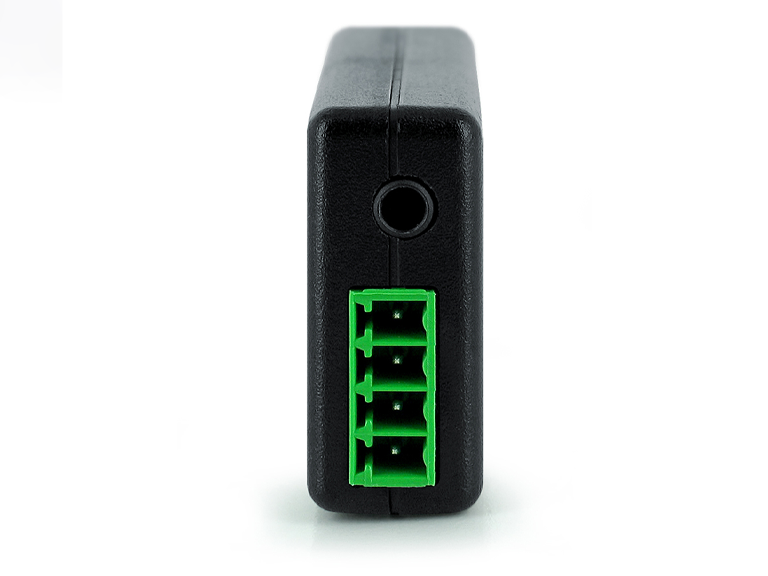

Thiết bị bộ ghi dữ liệu nhiệt độ RTD-based Temperature Data Logger model RTDTemp101A hãng MadgeTech

Memory

1,396,736 readings

Reading Rate

1 reading every second to 1 reading every 24 hours

Alarm

Yes

Baud Rate

115,200

Channels

1

LED Indicators

Red & Green

Push-Button Start

Yes

Battery Life

10 years typical at a 15 minute reading rate

Material

Polycarbonate

Dimensions

1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)

Operating Environment

-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package

IFC200

Approvals

CE

Temperature Sensor

External 100 Ω RTD (Sold Separately)

Temperature Range

18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent)

Temperature Resolution

0.0001 Ω, 0.01 °C (0.018 °F) (Probe Dependent)

Temperature Calibrated Accuracy

±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent)

Calibrated Accuracy Range: *18 Ω to 200 Ω, -200 °C to +265 °C
(-328 °F to +509 °F)
*Calibrated accuracies based on standard MadgeTech calibrations
for 0 Ω to 200 Ω range.
