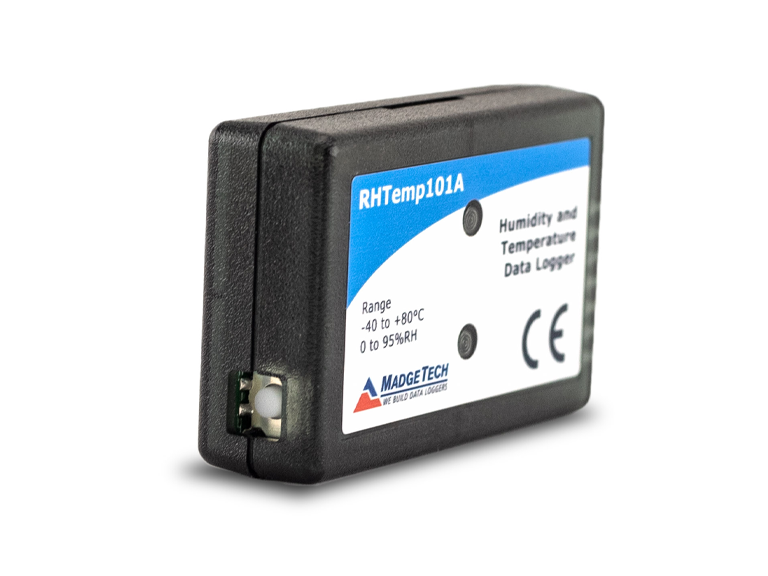

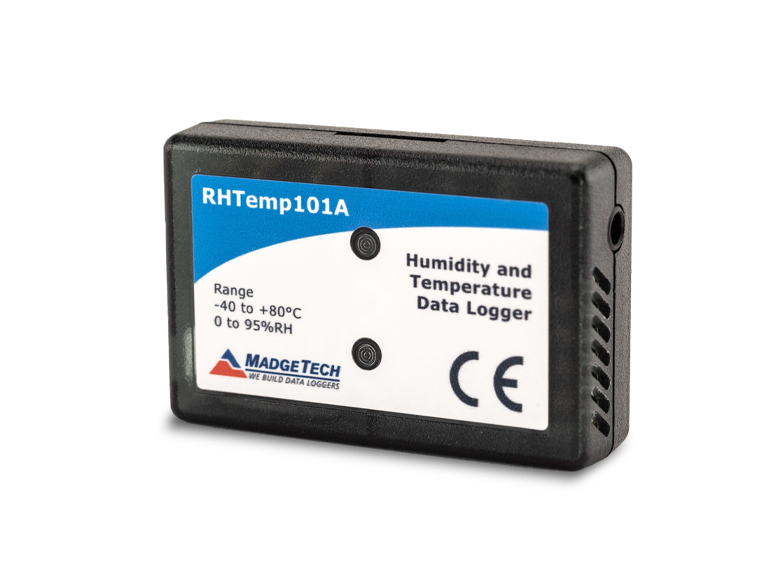

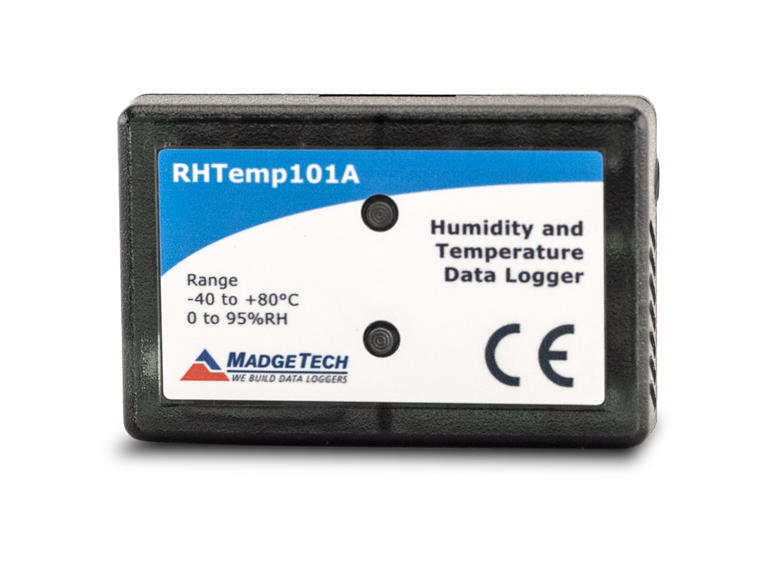

Thiết bị bộ ghi dữ liệu nhiệt độ, độ ẩm và áp suất Pressure Humidity & Temperature Data Logger model RHTemp101A hãng MadgeTech

Memory

1,047,552 readings

Reading Rate

1 reading every second up to 1 reading every 24 hours

Alarm

Yes, Humidity

Baud Rate

115,200

LED Indicators

Red & Green

Push-Button Start

Yes

Battery Life

10 years typical at a 15 minute reading rate

Material

Polycarbonate

Dimensions

1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)

Operating Environment

-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package

IFC200

Approvals

CE

Temperature Sensor

Precision RTD Element

Temperature Range

-40 °C to +80 °C (-40 °F to +176 °F)

Temperature Resolution

0.01 °C (0.018 °F)

Temperature Calibrated Accuracy

±0.5 °C (±0.9 °F) from 0 °C to 55 °C (32 °F to +131 °F)
±1.0 °C (±1.8 °F) from -40 °C to 80 °C (-40 °F to +176 °F)

Humidity Sensor

Internal semiconductor

Humidity Range

0 %RH to 95 %RH

Humidity Resolution

0.1 %RH

Humidity Calibrated Accuracy

±3.0 %RH

Humidity Accuracy Range

25 % RH to 75 % RH, 20 °C to 40 °C, Hysteresis Error 1 % Typ 3 % Max

RH Units

%RH, dew pt., water vapor, concentration (mg/hl)
