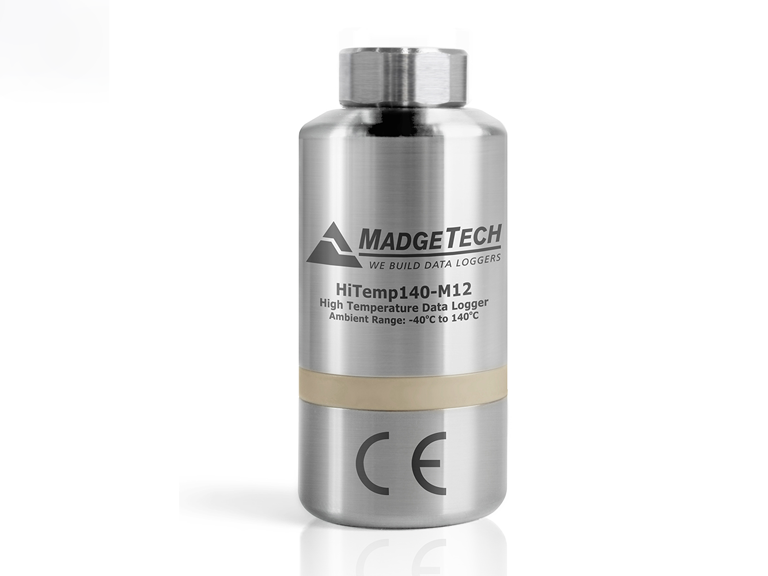

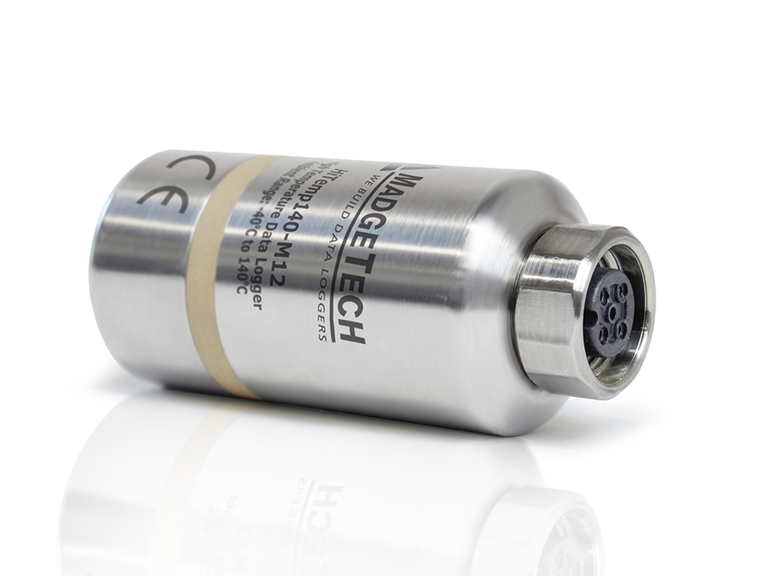

Thiết bị bộ ghi dữ liệu nhiệt độ cao High Temperature Data Logger model HiTemp140-M12 hãng MadgeTech

Memory

21,504 readings

Reading Rate

4 readings per second up to 1 reading every 24 hours

Baud Rate

125,000

Battery Life

2 years typical (1 minute reading rate)
User Replaceable Battery

Material

316 Stainless Steel, Radel

Dimensions

2.14 in x 0.97 in x 0.97 in (54.5 mm x 24.6 mm x 24.6 mm)

Key Ring End Cap

Key ring replaces standard bottom
Thru-hole: 0.150"

IP Rating

IP40 - logger alone (with no probe connected)
The logger will inherit IP rating of the attached probe
(up to, and including IP68/IP69K).

Submersible

Yes (with probe attached)

Operating Environment

-40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH non-condensing, 0.002 PSIA to 60 PSIA (Body of Logger cannot Exceed 140 °C)

Required Interface Package

IFC400 or IFC406

Approvals

CE

Temperature Sensor

Various RTD Probes with M12 Connector (Sold Separately)

Temperature Resolution

0.0001 Ω, (0.01 °C / 0.018 °F) (Probe Dependent)

Temperature Calibrated Accuracy

±0.0462 Ω (18 Ω to 200 Ω)
±0.1 °C (-200 °C to +265 °C / -328 °F to +509 °F)
±0.1% of Reading (+265 °C to 850 °C / +509 °F to 1562 °F)
(Probe Dependent)

Probe Temperature Range

18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent) (Body of Logger Cannot Exceed 140 °C)
