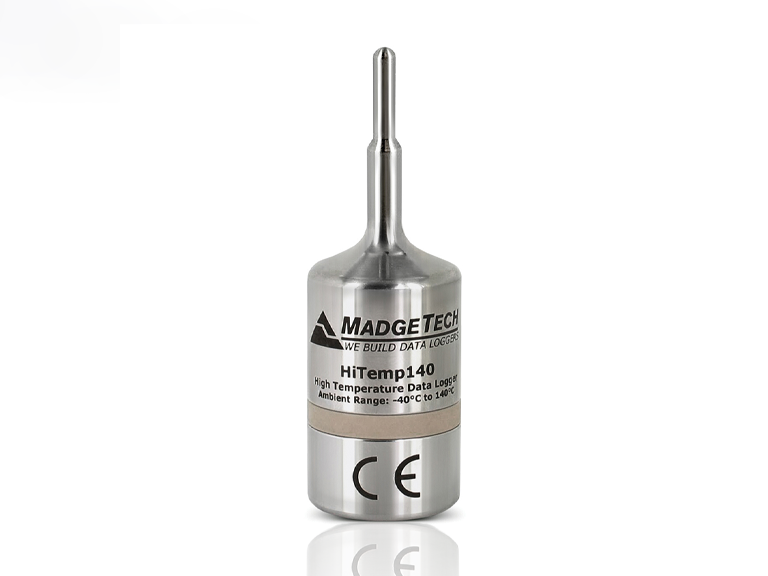

Thiết bị bộ ghi dữ liệu nhiệt độ cao High Temperature Data Logger model HiTemp140 hãng MadgeTech

Memory

32,256 readings

Reading Rate

1 reading every second up to 1 reading every 24 hours

Baud Rate

125,000

Battery Life

2 years typical (1 minute reading rate)
User Replaceable Battery

Material

316 Stainless Steel, Radel

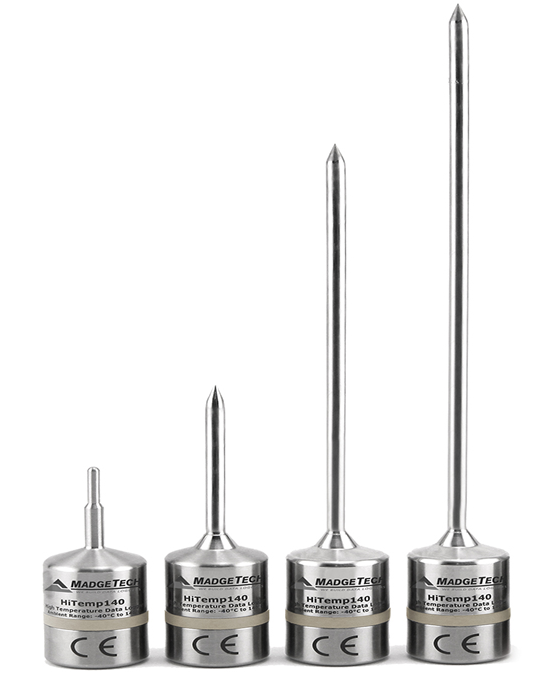

HiTemp 140 Rigid and Rigid Transitional Diameter Dimensions

HiTemp140-1 Body: 1.55 in x 0.97 in dia. (40 mm x 25 mm dia.)
Probe: 1 in x 0.125 in dia. (0.188 in transitional dia.)
25 mm x 3.2 mm dia. (4.8 mm transitional dia.)
Body (for 2 in, 5.25 in, 7 in;): 1.75 in x 0.97 in dia. (45 mm x 25 mm dia.)

HiTemp140-2 : 2.0 in x 0.188 in dia. (51 mm x 4.8 mm)

HiTemp140-2-TD: 2.0 in x 0.125 in dia. (0.188 in transitional dia.)
(51 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-5.25: 5.25 in x 0.188 in dia. (134 mm x 4.8 mm)

HiTemp140-5.25-TD: 5.25 in x 0.125 in dia. (0.188 in transitional dia.)
(134 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-7: 7.0 in x 0.188 in dia. (178 mm x 4.8 mm dia.)

HiTemp140 Fast Response Probe Dimensions

Body: 1.89 in x 0.97 in x 0.97 in (48.1 mm x 24.6 mm x 24.6 mm)
Probe: 1.75 in x 0.0625 in dia. (0.188 in transitional dia.) (44.5 mm x 1.59 mm (4.78 mm Transitional dia.))

Key Ring End Cap

Key ring replaces standard bottom
Thru-hole: 0.150"

IP Rating

IP68

Submersible

Yes

Operating Environment

-40 °C to +140 °C (-40 °F to +284 °F); 0 %RH to 100 %RH; 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)

Required Interface Package

IFC400

Approvals

CE

Temperature Sensor

100 Ω Platinum RTD

Temperature Resolution

0.01 °C (0.018 °F)

Temperature Calibrated Accuracy

±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F)
±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F)
±0.4 °C/±0.72 ºF (-40 °C to -20.01 °C/-40 °F to +-4.02 °F)

Probe Temperature Range

-200 °C to +260 °C (-328 °F to +500 °F) (Body of Logger Cannot Exceed 140 °C)
