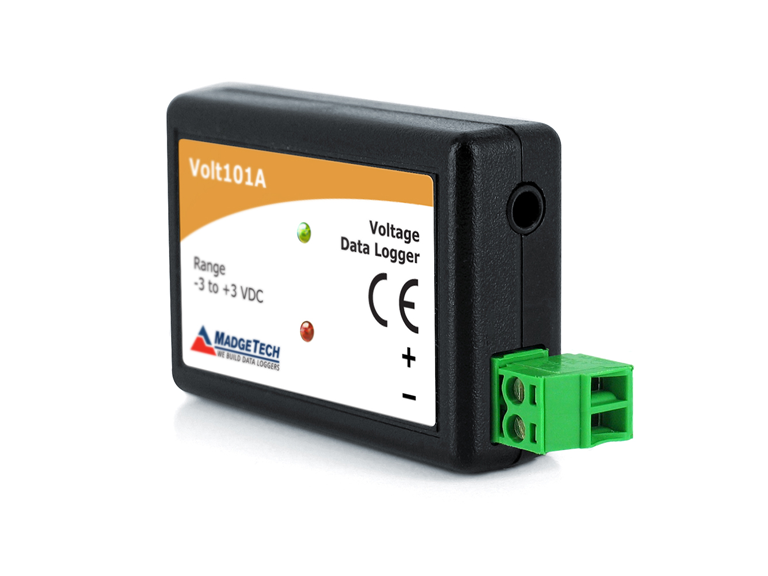

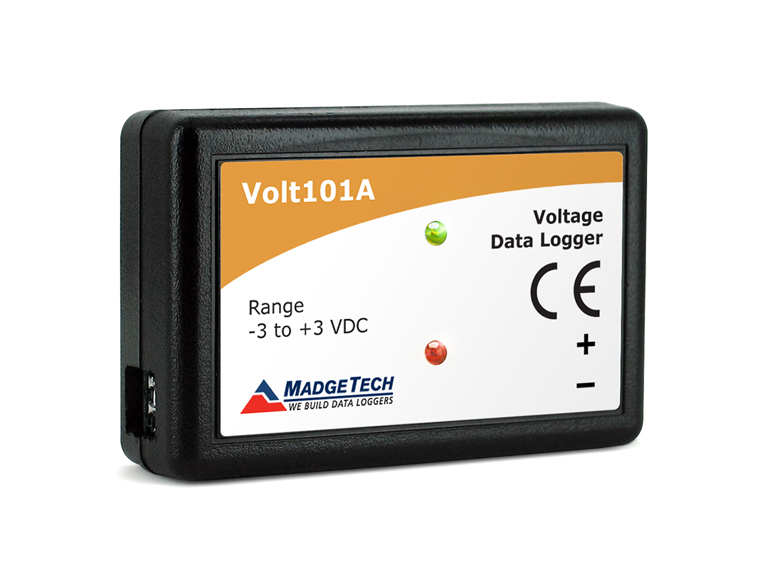

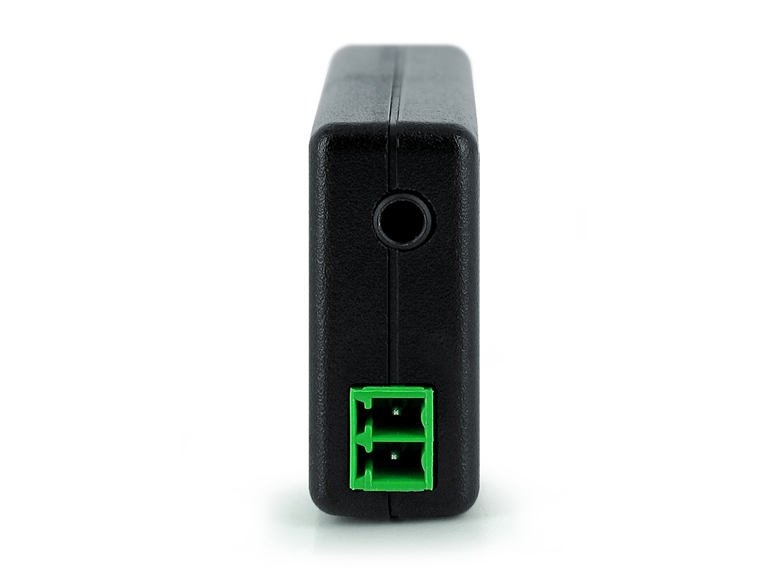

Thiết bị bộ ghi dữ liệu điện áp DC mức thấp Low-Level Voltage Data Logger model Volt101A hãng MadgeTech

Memory

2,095,104 readings

Reading Rate

4 readings every second up to 1 reading every 24 hours

Baud Rate

115,200

LED Indicators

Red & Green

Battery Life

10 years typical at a 15 minute reading rate

Material

Polycarbonate

Dimensions

1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)

Operating Environment

-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package

IFC200

Approvals

CE

Voltage Range

±160 mVDC,
0 to 2.5 VDC,
0 to 15 VDC,
0 to 30 VDC

Voltage Resolution

±160 mVDC: 5 μV,
0 to 2.5 VDC: 0.1 mVDC,
0 to 15 VDC: 0.5 mVDC,
0 to 30 VDC: 1.0 mVDC

Voltage Calibrated Accuracy

±160 mVDC: ±0.01 %FSR @ 25 °C (77 °F),
0 to 2.5 VDC: ±0.05 %FSR @ 25 °C (77 °F),
0 to 15 VDC: ±0.05 %FSR @ 25 °C (77 °F),
0 to 30 VDC: ±0.05 %FSR @ 25 °C (77 °F)
