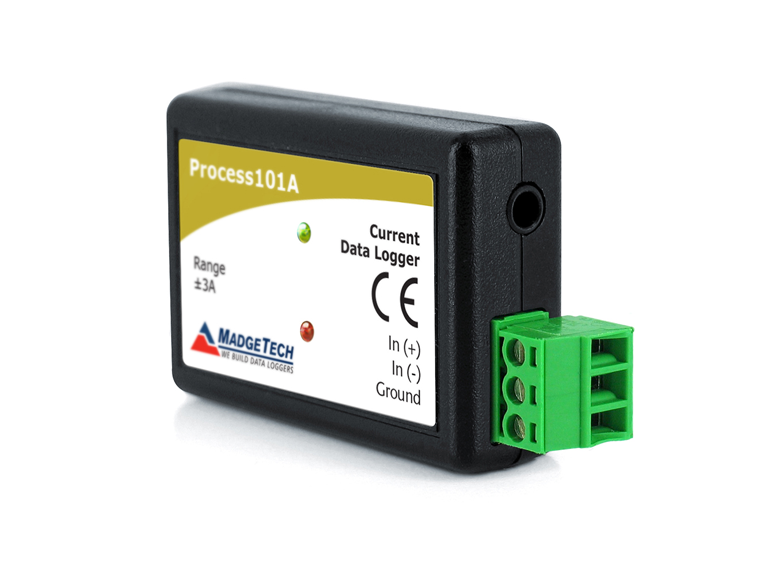

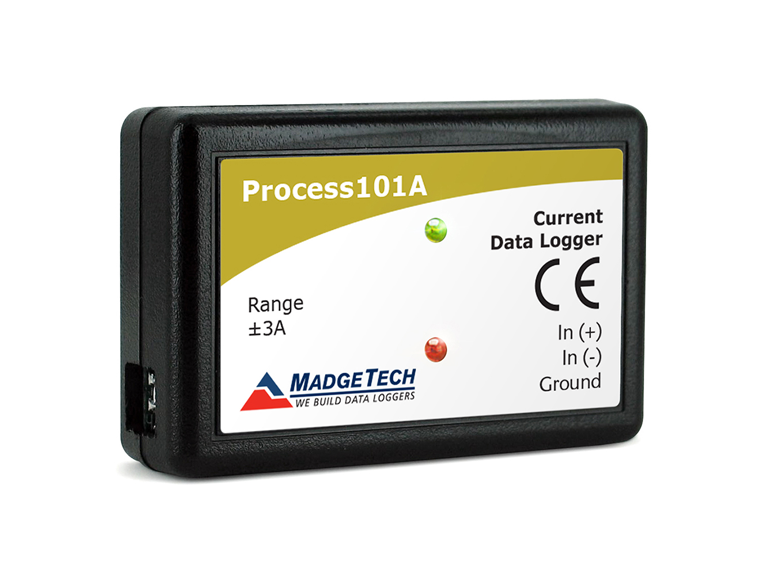

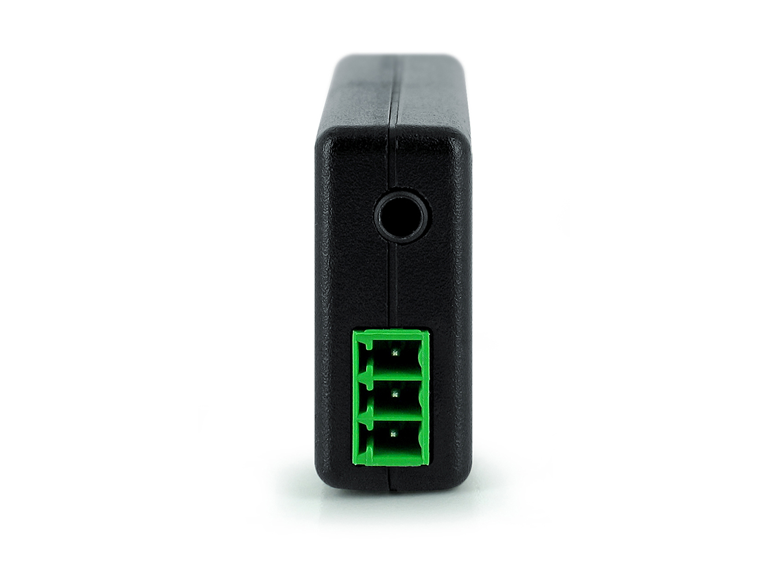

Thiết bị bộ ghi dữ liệu điện áp DC một chiều thấp Low-Level DC Current Data Logger model Process101A hãng MadgeTech

Memory

2,095,104 readings

Reading Rate

4 Hz to 1 reading every 24 hours

Baud Rate

115,200

Channels

1

LED Indicators

Red & Green

Battery Life

10 year battery life typical, at a 15 minute reading rate

Material

Polycarbonate

Dimensions

1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)

Operating Environment

-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package

IFC200

Approvals

CE

Current Range

20 mA: -2 to 30mA
±160 mA: ±160 mA
±3 A: ±3 A

Max Voltage: Inputs & Ground

0 to 2.5 V

Current Resolution

20 mA: 0.5 μA
±160 mA: 5 μA
±3 A: 100 μA

Current Calibrate Accuracy

20 mA, 160 mA: ±0.05 %FSR
3 A: ±0.15 %FSR

Current Input Impedance

20 mA: 10 Ω, ±1%
±160 mA: 1 Ω, ±1 %
±3 A:<0.05 Ω
