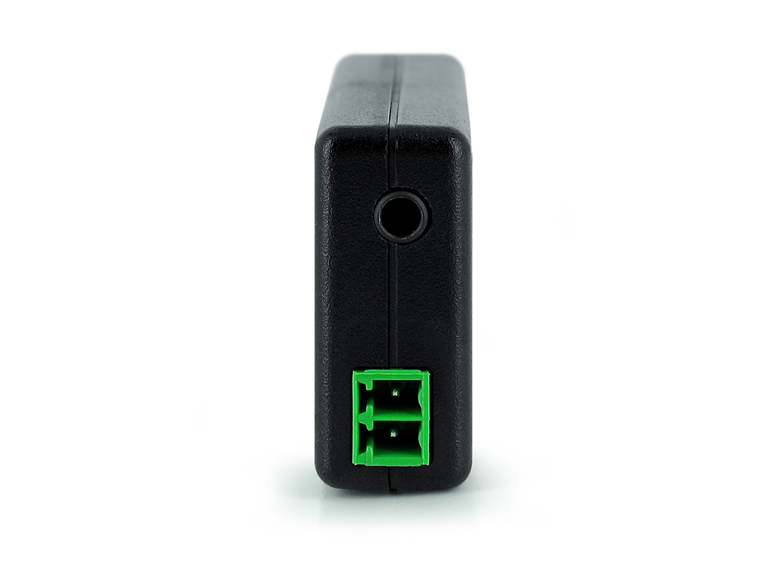

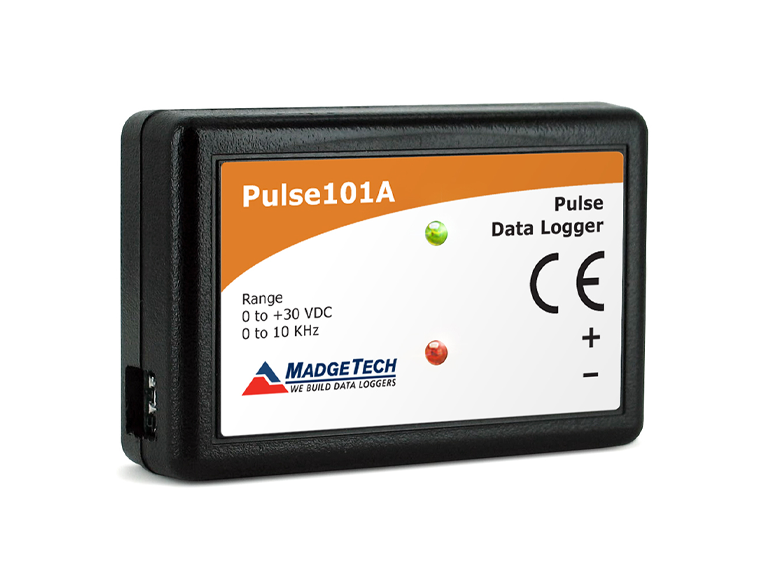

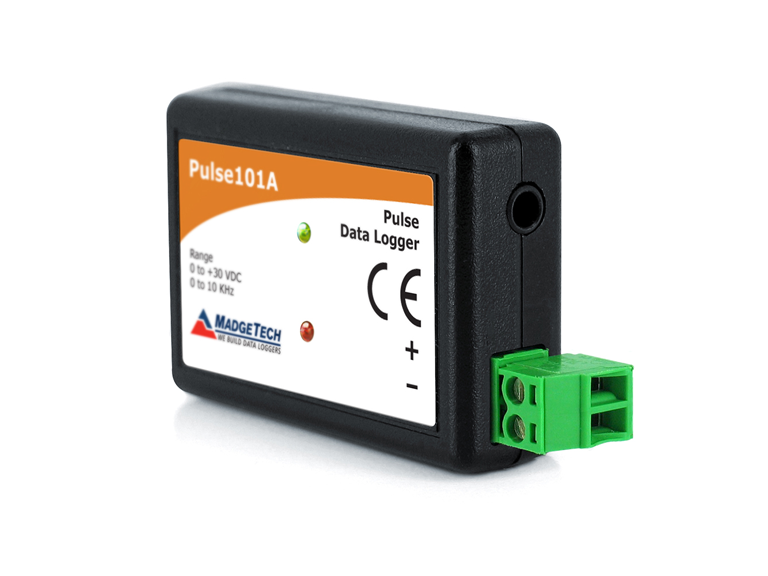

Thiết bị bộ ghi dữ liệu dạng xung Pulse & Event Data Logger model Pulse101A hãng MadgeTech

Memory

1,047,552 readings

Reading Rate

1 reading every second up to 1 reading every 24 hours

Baud Rate

115,200

LED Indicators

Red and Green

Push-Button Start

Yes

Battery Life

10 years typical, dependent upon frequency and duty cycle

Material

Polycarbonate

Dimensions

1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)

Operating Environment

-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package

IFC200

Approvals

CE

Maximum Pulse Rate

10 KHz

Pulse Input Range

0 to 30 VDC continuous

Pulse Input Low

<0.4 V

Pulse Input High

>2.8 V

Pulse Input Impedance

60000 Ω

Pulse Internal Weak Pull-up

<60 μA
