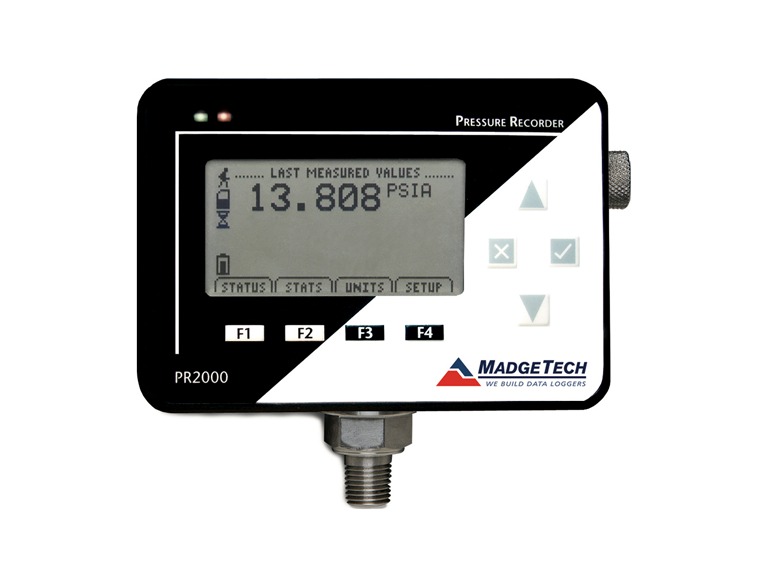

Thiết bị bộ ghi dữ liệu áp suất với khớp nối NPT Pressure Data Logger model PR2000 hãng MadgeTech

Memory

262,144 readings

Reading Rate

1 reading every 2 seconds up to 1 reading every 24 hours

Baud Rate

115,200

Battery Life

1 year battery life at 1 minute reading rate with display off, 30 days typical with continuous display use. Optional AC adapter available.

Material

Black anodized aluminum case/NPT Steel

Dimensions

5.1 in x 4.8 in x 1.705 (130 mm x 122 mm x 43.3 mm)

Operating Environment

-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package

IFC200

Approvals

CE

Pressure Sensor

Semiconductor (strain gauge)

Pressure Range

0 to 30, 100, 300, and 500 PSIA/G
0 to 1000 and 5000 PSIA

Pressure Resolution

0 to 30: 0.002, 0 to 100:0.005,
0 to 300: 0.02, 0 to 500: 0.05, 0 to 1000: 0.05
0 to 5000: 0.2

Pressure Calibrated Accuracy

2 %FSR, 0.25 % at +25 °C (+77 °F) Typical
