Overview:

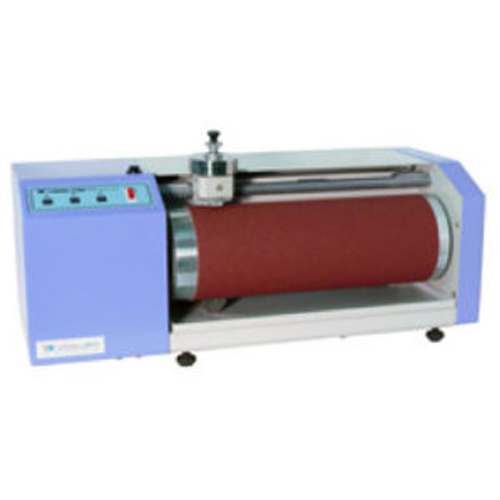

No.151 DIN ABRASION TESTER

This tester is to evaluate the abrasion resistance of vulcanized rubber and thermoplastic rubber.

By pressing the test specimen at a certain test load against the rotating drum that has an abrasive cloth on the abrading surface, the operator is to acquire the abrading mass of the test specimen. Test specimens include tires and belts.

Standards:

JIS K6264-2, ISO 4649, DIN-53 516

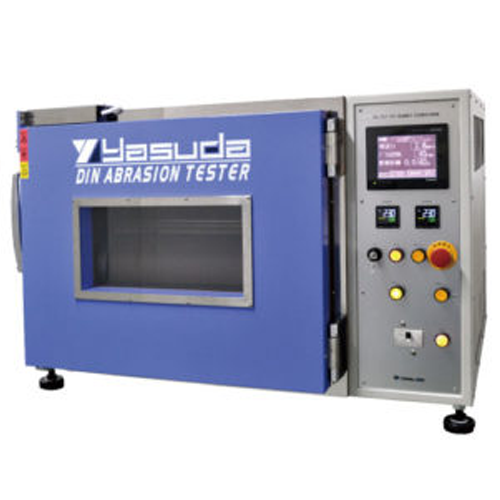

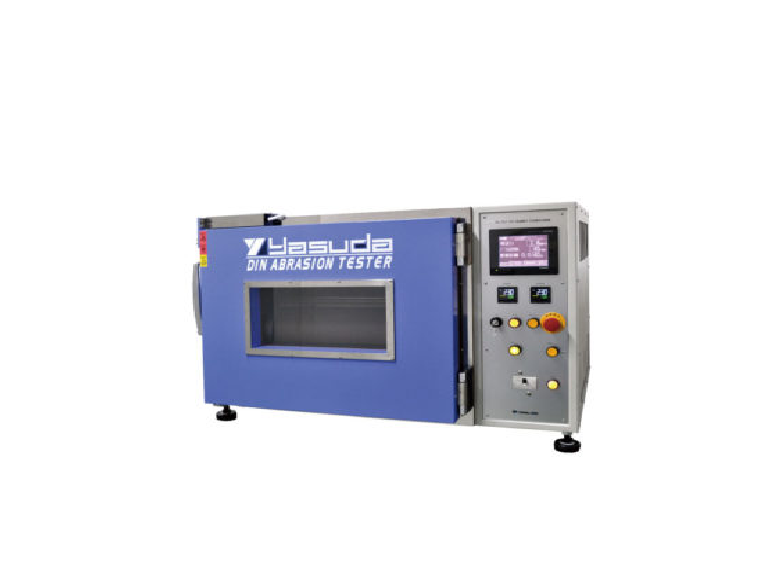

No.151-H DIN ABRASION TESTER (WITH CONSTANT TEMPERATURE CHAMBER)

This tester can assemble a chamber in order to conduct the test at high temperature such as 100 degree.

Standards:

JIS K6264-2, ISO 4649, DIN-53 516

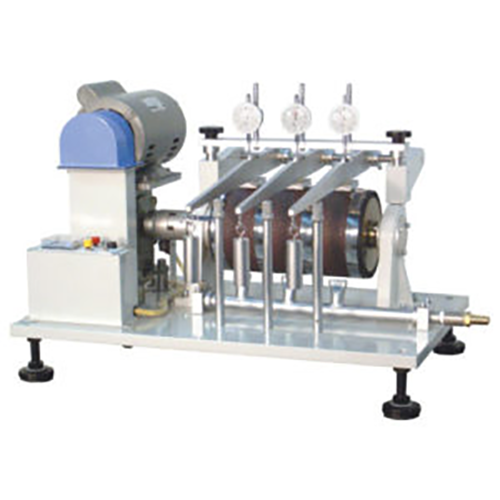

No.271 NBS RUBBER ABRASION TESTER

This tester is used to evaluate the folding endurance of paper,paper board,and plastic film according to the Schopper Type testing method.

By folding the test specimen that is vertically applied tensile force on the long side with the foloding blade, the operator is to calculate the foloding endurance from the number of bends the test specimen required to fracture.

Standards:

ASTM D1630

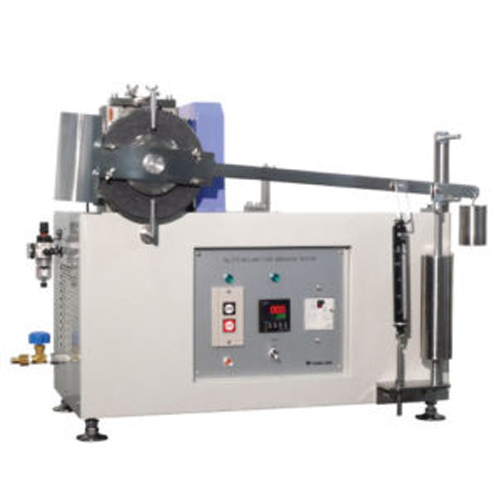

No.275 WILLIAMS ABRASION TESTER

This tester is to evaluate the abrasion resistance of vulcanized rubber and thermo-plastic rubber.

The operator is to determine the volume loss due to the abrasive action of rubbing two flat and non rotating test specimens to an abrading wheel.

This tester is usually used on test specimens that are applied for tires and shoe soles.

Standards:

JIS K6264-2, ISO 4649
