Máy đo mài mòn bề mặt vật liệu YASUDA No.101-H

Model

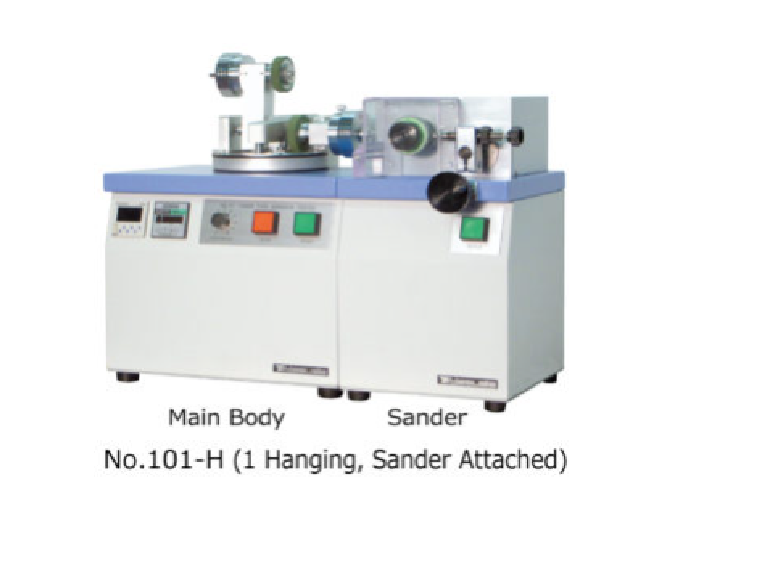

No.101-H TABER TYPE ABRASION TESTER

Turn Table

φ150 mm

Table Rotation Spee

60 ± 2 rpm、70 ± 2 rpm、72 ± 2 rpm

Weight Load

2.45 N（250 gf）、4.9 N（500 gf）、9.8 N（1,000 gf）

Counter

6 Digits Preset Counter

Suction Nozzle

Inner φ8 mm: 2 pcs

Option

Inlet Pressure Gauge,Safety Cover

Accessories

Abrasion Wheel: 1 set (2 sets for No.101-H-2), Thickness Guage: 2 pcs,

Weight(4.9N,9.8N): 2 pcs each, Suction Device (Vacuum Cleaner): 1 set

Power Plug Adaptor: 1 pc

Power Source

1 Hanging (No.101-H-1):

AC 100 V, 1-Phase, 15 A, 50/60 Hz

2 Hangings (No.101-H-2):

AC 100 V, 1-Phase, 20 A, 50/60 Hz

*2 outlets required

Dimensions/ Weight (Approx.)

1 Hanging (No.101-H-1):

W350 × D350 × H450 mm/ 25 kg

2 Hangings (No.101-H-2):

W700 × D350 × H510 mm/ 45 kg
