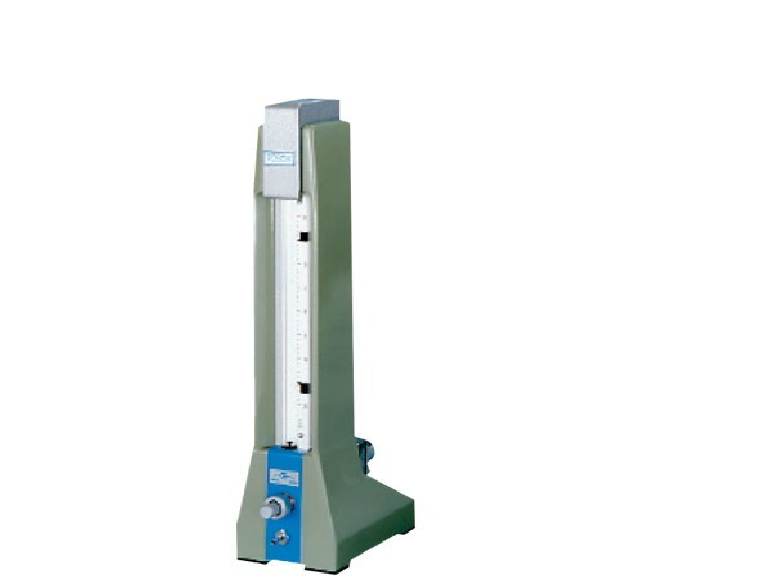

Máy đo kích thước NIDEC SHIMPO FT-5000

Model

FT-5000

Input

1 Air Channel per column

Measuring Range μm (mm) (see Chart A)

20 (0.0200), 40 (0.0400), 100 (0.100), 200 (0.200)

Scale Graduation μm (mm) (see Chart A)

0.5 (0.0005), 1 (0.001), 2 (0.002), 5 (0.005)

Air Supply Pressure

28.4 psi (196 kPa)

Source Pressure

42.7 psi to 99 psi (294 to 686 kPa)

Air Supply Volume

106 cfh (50 l/min)

Power Requirement

85 to 264 VAC, 50/60 Hz 100-VAC

Operating Temperature

32 to 113°F (0 to 45°C)

Dimensions

4.3″ wide x 19.7″deep x 8.3″ high (110 × 501 x 210 mm)

Weight

Single: 9.9 lb (4.5 kg)

Dual Stack: 16.5 lb (7.5 kg)

Triple Stack: 23 lb (10.5 kg)

Quadruple Stack 29.8 (13.5 kg)

Quintuple Stack: 36.4 lb (16.5 kg)

Sextuple Stack 43 lb (19.5 kg)

Warranty

1-Year

CHART A

Model

FT-5100

FT-5200

FT-5500

FT-5000

Standard Magnification

1000

2000

5000

10000

Indication Range

200

100

40

20

Effective Indication Range

150

70

30

15

Graduation

5

2

1

0.5

Repeatability

Max 2.0

Max 1.0

Max 0.5

Max 0.3

Response Time (sec)

Max 1.5

Max 1.5

Max 1.58

Max 2.0

Stack Number

Scale Magnification

1000

2000

5000

10000

Single Type

FT-5101

FT-5201

FT-5501

FT-5001

Dual Type

FT-5102

FT-5202

FT-5502

FT-5002

Triple Type

FT-5103

FT-5203

FT-5503

FT-5003

Quadruple Type

FT-5104

FT-5204

FT-5504

FT-5004

Quintuple Type

FT-5105

FT-5205

FT-5505

FT-5005

Sextuple Type

FT-5106

FT-5206

FT-5506

FT-5006

Optional Accessories

FUA-503

Air Filter & oil Separator -manual drain. For 1 to 3 Column stacks

FUA-506

Air Filter & oil Separator -manual drain. For 4 to 6 Column stacks

CAG2000-OP-AR

Precision Regulator
