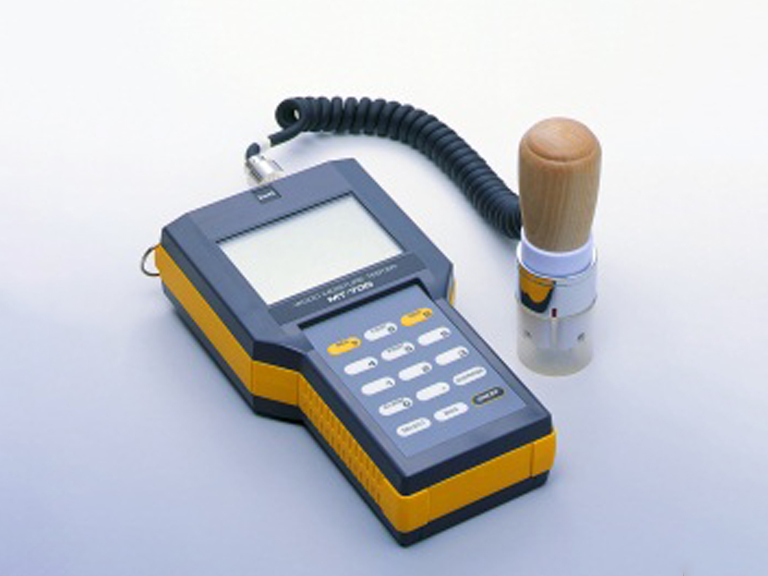

Máy đo độ ẩm của gỗ MT-730 Wood Moisture Tester hãng Kett

Measurement Principle

Electrical resistance

Applications

Veneer / wood

Calibrations

For hardwood (broad-leaved trees) and softwood (needle-leaved trees) use*1 (Reference method: ISO 13061-1)
16 wood group classifications*2

Measurement Range*3

6 to 40% (hardwood), 7 to 40% (softwood)
4 to 40% (when wood groups 1-16 are selected, varies with group type*2)

Measurement Precision

Below 20%: ±0.5%
20% and higher: ±2.0% (precision with respect to base resistance)

Display

Digital (LCD)

Resolution

0.1%

Operating Temperature Range

0 to 40˚C

Functions

Automatic temperature compensation, average value display, Upper limit alarm setting (10 to39% and Off), Auto power off (automatically turns off after approximately 5 minutes), Moisture value bias adjustment (–9.9 to +9.9%)

Power Supply, Power Consumption

1.5 V batteries (AA alkaline) (6), approximately 0.45 W

Dimensions and Weight

110 mm (W) x 210 mm (D) x 50 mm (H), 0.5 kg

Accessories

Needle probe, spare needle (10), conductive rubber (2), wrench, shoulder strap, 1.5 V battery (AA alkaline) (6), carrying case, operating manual, wood group number table (Japanese and English) (1 each)

*1 Calibrations were prepared using the most recent wood and measurement techniques. Different values are displayed for the calibrations of the 16 wood group classifications.
*2 Uses the same calibrations as our “TURKU, MT-8S, MT-700 (production of the preceding 3 products discontinued) ” wood moisture testers. Refer to p. 20 “8. Wood Group Number Table”.
*3 Range when measured at 20°C. For temperatures below 20°C, the measurable lower limit value increases by 0.1% per 1°C.
