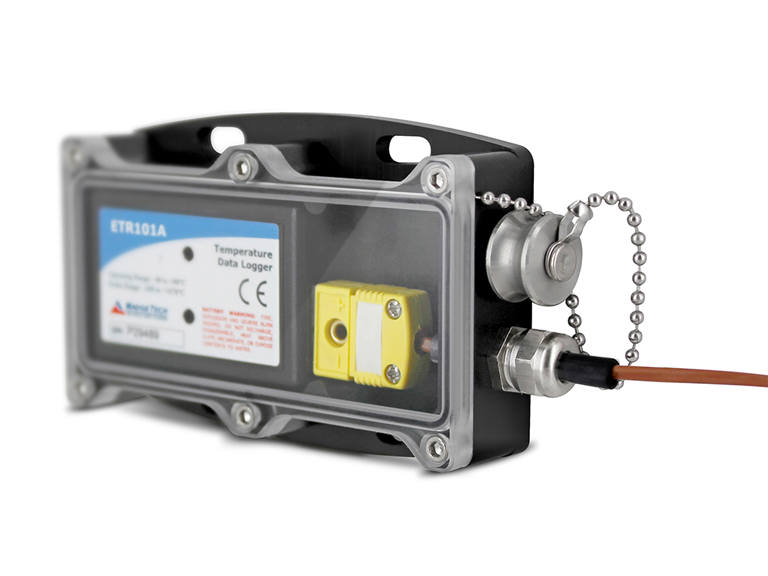

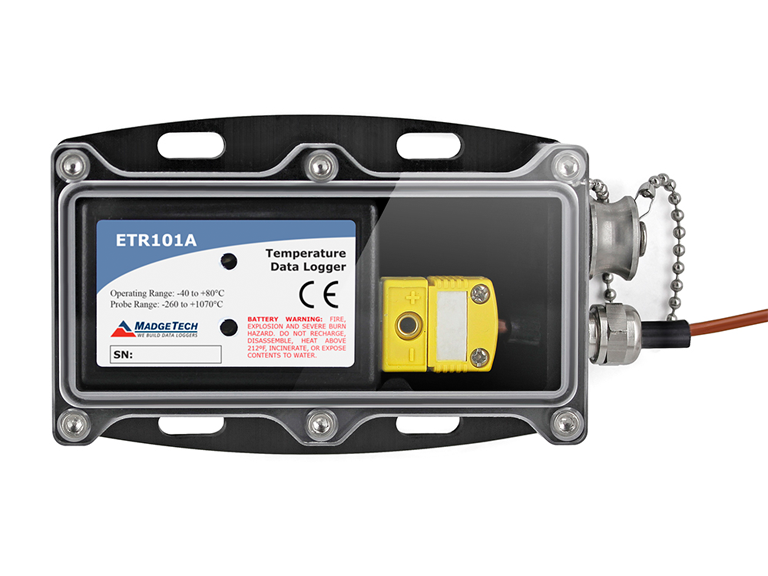

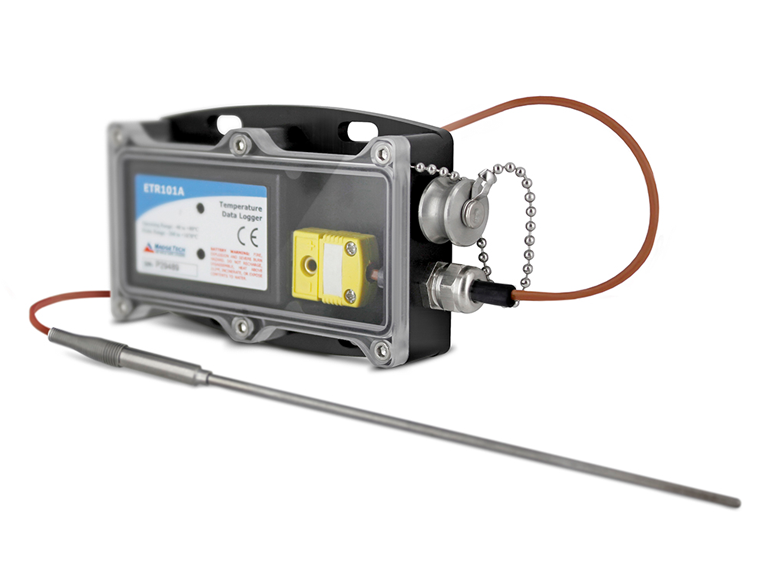

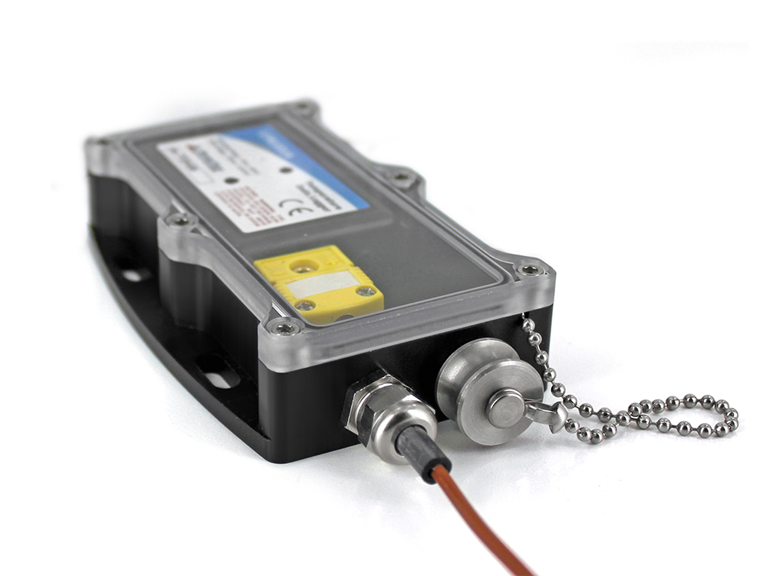

Hệ thống ghi dữ liệu nhiệt độ khí thải động cơ diesel Diesel Emissions System model ETR101A hãng MadgeTech

Memory

1,032,192 readings (all channels enabled)

Reading Rate

1 reading every second up to 1 reading every 24 hours

Baud Rate

115,200

Cold Junction Compensation

Automatic

Channels

1 Internal & 1 Remote

LED Indicators

Red and Green

Push-Button Start

Yes

Battery Life

10 years typical, dependent upon frequency and duty cycle

Material

ABS plastic

Dimensions

1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm)

Operating Environment

-20 °C to 80 °C (-4 °F to +176 °F), 0 %RH to 100 %RH

Required Interface Package

IFC200

Temperature Sensor

Semiconductor

Temperature Range

-40 °C to +80 °C (-40 °F to +176 °F)

Temperature Resolution

0.1 °C (0.18 °F)

Temperature Calibrated Accuracy

±0.25 °C (±0.45 °F)

Remote Channel Temperature Sensor

Thermocouple Type K

Remote Channel Temperature Range

-260 °C to +899 °C (-436 °F to +1650.2 °F)

Remote Channel Temperature Resolution

0.1 °C (0.18 °F)

Remote Channel Temperature Calibrated Accuracy

±0.5 °C
