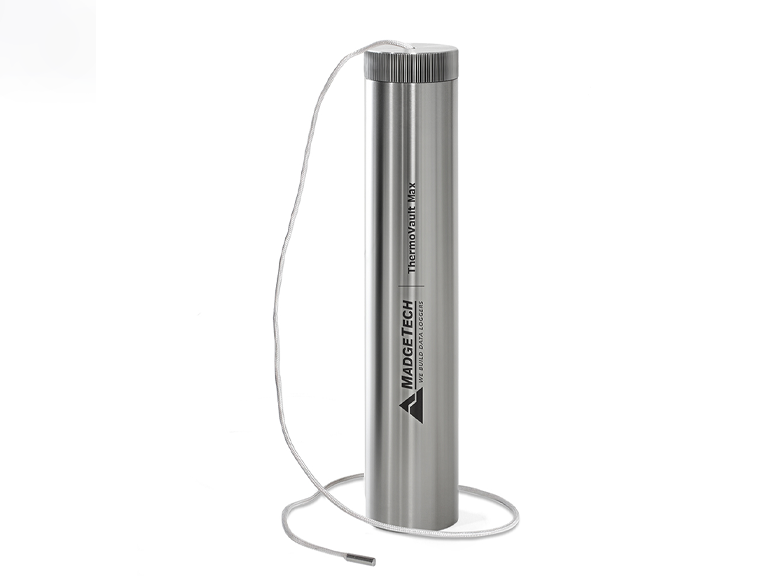

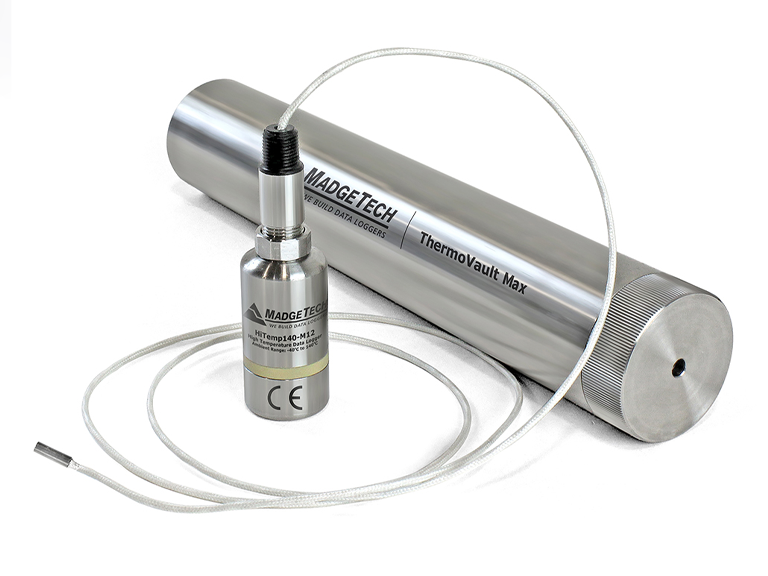

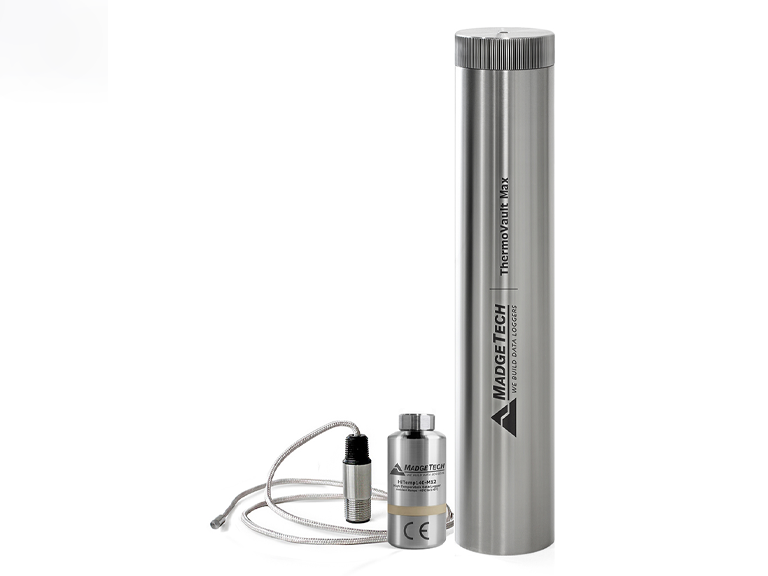

Hệ thống ghi dữ liệu chu trình khử trùng nhiệt độ khô Dry Heat Sterilization System model DHS hãng MadgeTech

Memory

21,504 readings

Reading Rate

4 readings per second up to 1 reading every 24 hours

Baud Rate

125,000

Battery Life

1 year typical (1 minute reading rate at +25 °C / +77 °F) User Replaceable Battery

Material

316 Stainless Steel, PTFE, Silicone

Dimensions

1.75 in OD x 9.6 in L (44.45 mm OD x 243.8 mm L)

IP Rating

This system is not IP rated and is for use in dry applications only

Operating Environment

-200 °C to 400 °C %RH to 95 %RH non-condensing

Required Interface Package

IFC400 or IFC406

Approvals

CE

Temperature Sensor

36 inch Glass Braided RTD depyrogenation probe

Temperature Range

-200 °C to +400 °C

Temperature Resolution

0.0001 Ω, 0.01 °C (0.02 °F)

Temperature Calibrated Accuracy

±1.2 °C (-200 °C to +400 °C)
