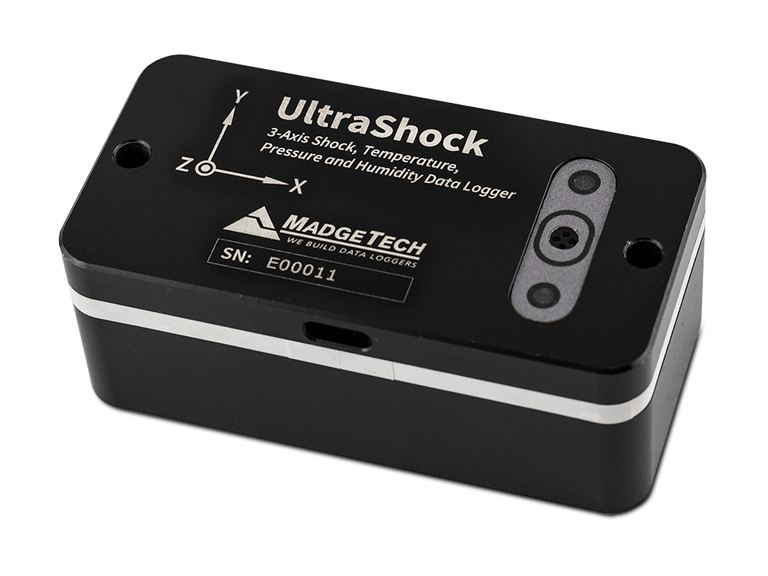

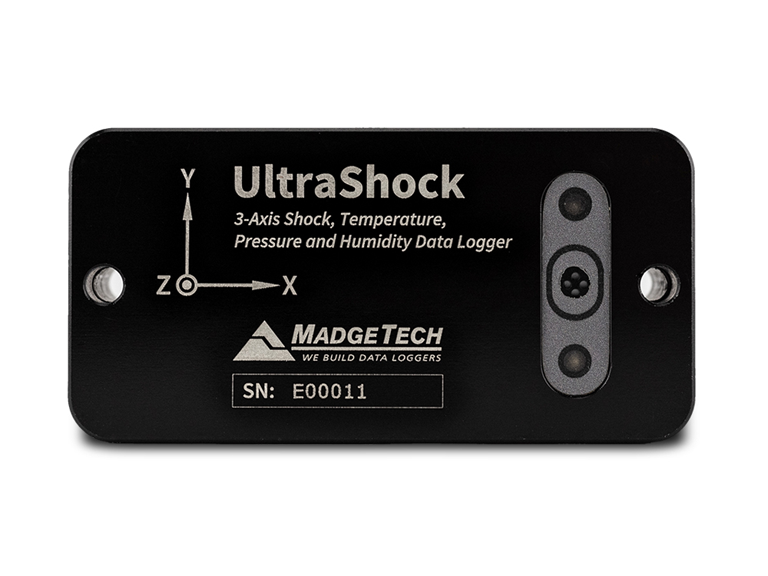

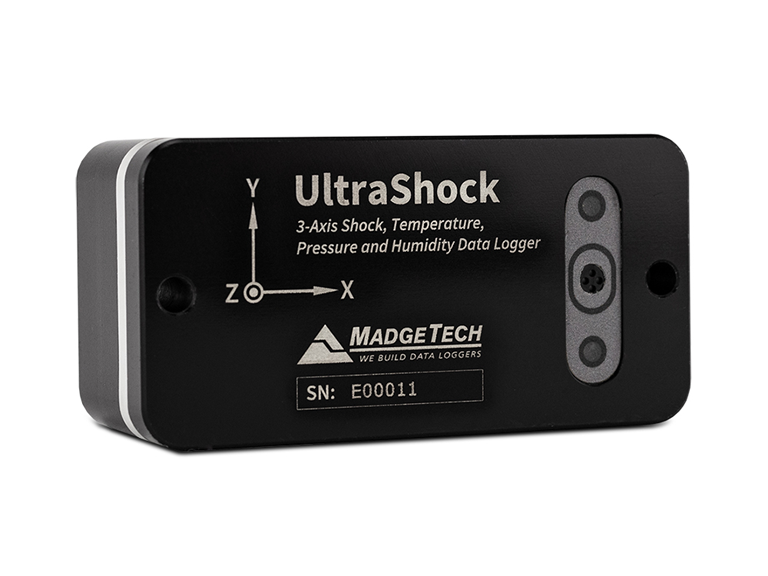

Bộ ghi dữ liệu nhiệt độ, độ ẩm, áp suất | MadgeTech

Memory

3,593,358 readings
(598,893 per channel, all channels in use)

Reading Rate

1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every
2 seconds at intervals shorter than
2 seconds. Otherwise, sampled at the reading rate.

Battery Life

90 days typical at 64Hz rate

Material

Anodized aluminum

Dimensions

3.4 in x 1.7 in x 1.3 in
(86 mm x 43 mm x 33 mm)

Operating Environment

-20 ºC to +60 ºC,
0 %RH to 95 %RH non-condensing

Required Interface Package

USB-C cable required (included); 1MBaud

Approvals

CE compliant
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
IP Rating 64

Sensor

Semiconductor

Range

-20 ºC to +60 ºC

Resolution

0.1 ºC

Accuracy

±0.5 ºC (+5 ºC to +60 ºC)

Sensor

Capacitive Polymer

Range

0 %RH to 95 %RH

Resolution

0.1 %RH

Calibrated Accuracy

±3 %RH (±2 %RH typical at 25 ºC)

Specified Accuracy Range

+20 °C to +40 °C; 20 %RH to 80 %RH

Sensor

Semiconductor Strain Gage

Range

100 mbar to 1300 mbar

Resolution

0.05 mbar

Calibrated Accuracy

±1.5 mbar at 25 ºC; at 750 mbar

Accelerometer Type

MEMS Semiconductor

Acceleration Range (g)

±15 g/±100 g/±300 g

Acceleration Resolution (g)

0.02 g/0.05 g/0.2 g

Calibrated Accuracy (g)

±0.3 g/±2.0 g/±6.0 g

Sampling Rate

1000 Hz

Accelerometer Freq. Resp.

>1000 Hz (15 g)
>500 Hz (100 g, 300 g)

Reading Rate

1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every
2 seconds at intervals shorter than
2 seconds. Otherwise, sampled at the reading rate.
