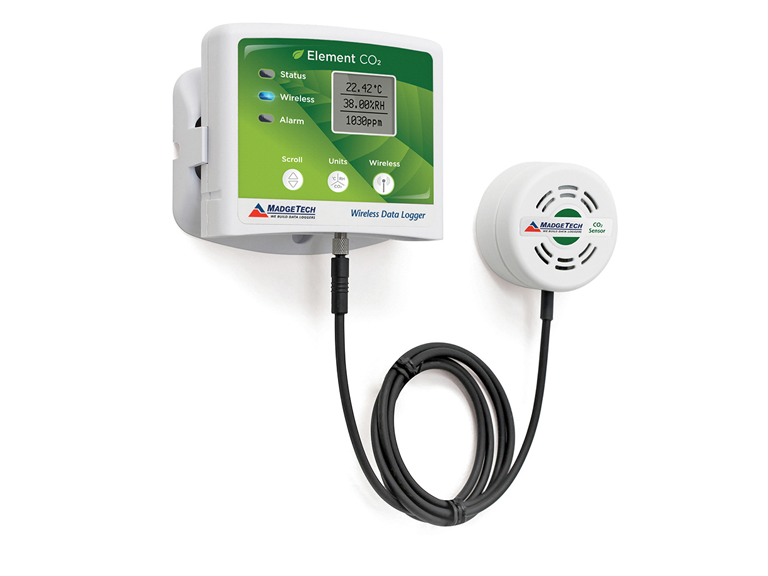

Bộ ghi dữ liệu CO2, nhiệt độ, độ ẩm không dây Element HT | MadgeTech

Memory

10,752 readings (all channels enabled)

Reading Rate

1 reading every second up to 1 reading every 24 hours

Baud Rate

250,000

LED Indicators

Green, Blue & Red

Battery Life

16 months typical at a 10 minute reading rate

Material

ABS plastic

Dimensions

Data logger: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) Sensor: 1.98 in x 1.98 in x 1.15 in (50.3 mm x 50.3 mm x 29.2 mm) Cable Length: 16 ft (192 in)

IP Rating

IP22

Operating Environment

0 °C to +55 °C (+32 °F to +131 °F), 0 %RH to 95 %RH non-condensing, 13.77 PSIA to 100 PSIA

Required Interface Package

RFC1000

Approvals

US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Countries approved for use, purchase and distribution

Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Ecuador, Estonia, Finland, France, Germany, Greece, Honduras, Hungary, Iceland, Ireland, Israel, Japan, Latvia, Liechtenstein, Lithuania, Luxembourg, Malaysia, Malta, Mexico, New Zealand, Norway, Peru, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, South Korea, Spain, Sweden, Switzerland, Thailand, The Netherlands, Turkey, United Kingdom, United States, Venezuela, Vietnam

Internal Channel Temperature Sensor

Silicon

Internal Channel Temperature Range

0 °C to +55 °C (+32 °F to +131 °F)

Internal Channel Temperature Resolution

0.08 °C (0.144 °F)

Internal Channel Temperature Calibrated Accuracy

±1.0 °C

Humidity Sensor

Silicon

Humidity Range

0 %RH to 95 %RH

Humidity Resolution

0.08 %RH

Humidity Calibrated Accuracy

±3.0 %RH from 25 %RH to 75 %RH @ 25 °C, 7 %RH otherwise

Carbon Dioxide Range

0 ppm to 200,000 ppm

Carbon Dioxide Resolution

10 ppm

Carbon Dioxide Accuracy

70 ppm ± 5% of the reading

RF Baud Rate

250,000

Output Power

+0 dBm typical

Receiver Sensitivity

-95 dBm typical

Typical outdoors Line of sight

Up to 2000 ft

Typical Indoors line of sight

Up to 500 ft
